Remove/install seal at inner C-pillar upper section for Vario roof - AR77.50-P-6768V

MODEL 171.4

Fig 1: Identifying Inner C-Pillar Seal Components (1 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Inner C-Pillar Seal Components (2 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Inner C-Pillar Seal Components (3 Of 4)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Inner C-Pillar Seal Components (4 Of 4)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

10.11.04

Repair method updated

All steps

	Remove
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	-
	Risk of injury caused by body parts being trapped or crushed when working on partially open Vario roof (stop mode) or in its closing area as a result of the Vario roof suddenly collapsing	Secure Vario roof with a suitable special tool.	-
1	Remove paneling from C-pillar upper section (5)		AR77.50-P-6763V
2	Remove support for securing Vario roof intermediate position and move Vario roof in closing direction with soft top switch until the position of the C-pillar top sections (5) is approx. 75°. Then reinstall support
			Figure

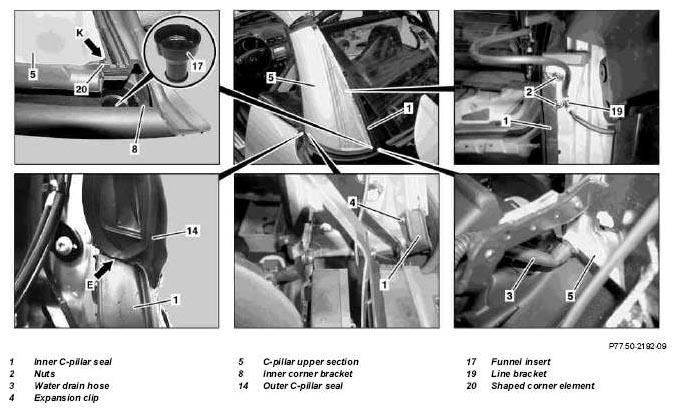

3	Unscrew nuts (2) and remove line bracket (19)
4	Remove water drain hose (3) from inner corner bracket (8) of inner C-pillar seal (1)
5	Remove expansion clip (4) on outer corner bracket (6) of inner C-pillar seal (1)
6	Pull funnel insert (17) out of funnel shaped part (16) of inner C-pillar seal (1)
7	Remove inner C-pillar seal (1) from C-pillar upper section (5)	Carefully remove inner C-pillar seal (1) to prevent damaging C-pillar top section (5)
	Cleaning
8	Remove sealant residues from sealing surfaces of C-pillar upper section (5) and thoroughly clean sealing surfaces	The sealing surfaces on the C-pillar upper section (5) should be free of dust and grease. Otherwise leakage is possible. Observe drying time for cleaning agent It is not necessary to clean the inner C-pillar seal (1) because it is always replaced after removal
		Cleaner	*BR00.45-Z-1025-04A
	Install

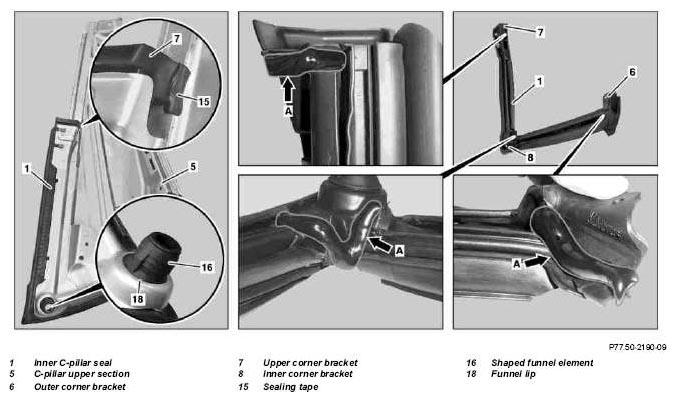

9	Apply beads of sealant (arrows A) on outer corner element (6), upper corner element (7) and inner corner element (8) of inner C-pillar seal (1)	The sealing surfaces of the inner C-pillar seal (1) should be free of grease and dust. Otherwise leakage is possible. Apply beads of sealant (arrows A) as shown. Diameter of sealant beads (arrows A) approx. 8 mm.
			Figure
		Sealant	*BR00.45-Z-1048-01A
10	Remove support for securing intermediate position of Vario roof and close Vario roof with soft top switch until the Vario roof front section is open approx. 5 cm	Leave ignition switched on. This causes the Vario roof to remain in the stop mode for 7 minutes. The next step should be performed within this period of time. The Vario roof closes automatically after 7 minutes.
			Figure

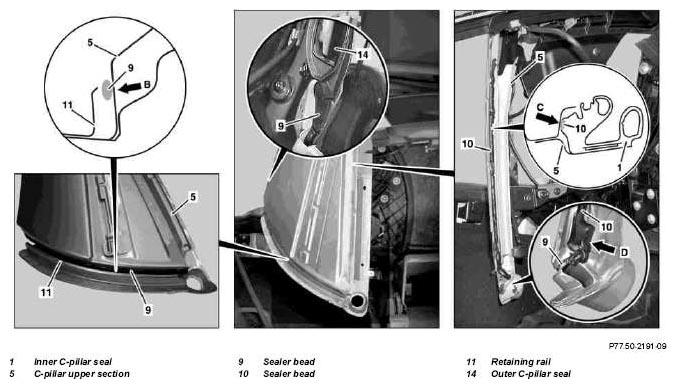

11	Apply sealant bead (9) along lateral section of inner C-pillar seal (1) on C-pillar top section (5)Apply sealant bead (9) to outer C-pillar seal (14)Apply sealant bead (9) at transition of outer C-pillar seal (14).	Position of sealant bead (9), see cross section (arrow B). Apply sealant bead (9) at height of end edge of retaining rail (11). Observe connection of sealant bead (9) to outer C-pillar seal (14) The course of the sealant should not be interrupted. Diameter of sealant bead (9) min. 8 mm.
			Figure
		Sealant	*BR00.45-Z-1048-01A
12	Move Vario roof to intermediate position and secure Then switch off ignition	Position of C-pillar top sections (1) approx. 90°.	AR77.50-P-3000-01V
			Figure
13	Apply sealant bead (10) to C-pillar top section (5) as shown	Position of sealant bead (10) see cross section (arrow C) Fill transition with sealant on transition to sealant bead (9) as shown (arrow D). Observe connection of sealant bead (10) to outer C-pillar seal (9) The course of the sealant should not be interrupted. Diameter of sealant bead (10) min. 8 mm.
			Figure
		Sealant	*BR00.45-Z-1048-01A
14	Install inner corner element (8) on C-pillar top section (5) and then install outer corner element (6) on C-pillar top section (5)	Shaped corner element (20) should be located above corner on C-pillar top section (5) as shown (arrow K). Otherwise leakage can occur later Install sealing base (12) behind retaining rail (11).
15	Press shaped funnel element (16) for inner C-pillar seal (1) into corresponding opening in C-pillar top section (5)	Ensure that funnel lip (18) is seated correctly. Otherwise leakage can occur later
16	Completely install funnel insert (17) in shaped funnel element (16) of inner C-pillar seal (1)
17	Install expansion clip (4)	Replace damaged expansion clip (4).
18	Install inner C-pillar seal (1) up to the upper corner bracket (7) on the C-pillar upper section (5) and press on by hand.
19	Position line bracket (19) on installation location with corresponding electrical lines and tighten nuts (2)	Press upper corner bracket (7) against C-pillar upper section (5) while tightening to prevent the upper corner bracket (7) from being twisted. Observe mounting marking for electrical line
			*BA77.50-P-1007-01A
20	Fasten upper corner bracket (7) of inner C-pillar seal (1) with sealing tape (15) as shown.	Length of sealing tape (15): 20 mm.
		Sealing	*BR00.45-Z-1050-01A

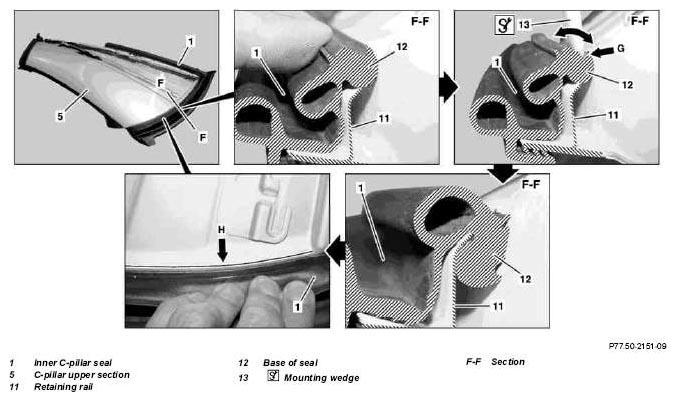

21	Install sealing base (12) over retaining rail (11) as shown in cross section (F-F) and hold pressed in this position. Position mounting wedge (13) at an angle of 45° in the notch (arrow G) and push sealing base (12) over entire course of sealing rail (11) approx. half way over the retaining rail (11) by tilting the mounting wedge (13).	The mounting wedge (13) should not have any sharp edges or sharp corners. Do not move along inner C-pillar seal (1) with the mounting wedge (13). Otherwise the inner C-pillar seal (1) can be damaged.
			Figure
22	Reposition mounting wedge (13) and completely push downward behind retaining rail (11) as shown in cross section (F-F)	The mounting wedge (13) should not have any sharp edges or sharp corners. Do not move along inner C-pillar seal (1) with the mounting wedge (13). Otherwise the inner C-pillar seal (1) can be damaged.
			Figure
23	Optimize seat of inner C-pillar seal (1) in of retaining rail (11) by pulling and pressing
24	Check inner C-pillar seal installed (1) in area of retaining rail (11) of C-pillar upper section (5)	Inner C-pillar seal (1) should run parallel to lateral section of unfinished edge (arrow H) on C-pillar top section (5)
25	Check whether inner C-pillar seal (1) is positioned below the outer C-pillar seal (14) on the sealing joint (arrow E), if necessary correct seat of inner C-pillar seal (1).
26	Install water drain hose (3) on inner corner bracket (8) of inner C-pillar seal (1)
27	Remove excessive sealant from C-pillar upper section (5) and remove inner C-pillar seal (1)
28	Install paneling on C-pillar upper section (5)		AR77.50-P-6763V
29	Check whether outer C-pillar seal (1) is seated correctly on C-pillar top section (5)
30	Perform rain test
