Remove/install Vario roof limit switch (lowered) - AR77.39-P-3694V
MODEL 171.4
| Remove | |||
|---|---|---|---|

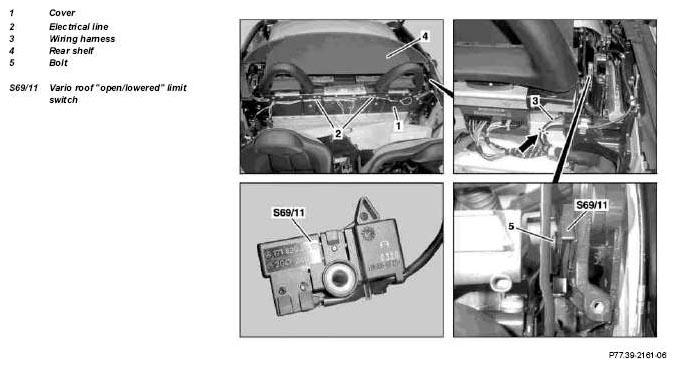

| 1 | Remove cover from Vario roof crossmember (1) | AR77.30-P-3976V | |
| 2 | Expose wiring harness (3) of Vario roof open/lowered limit switch (S69/11) up to separation point (arrow) | ||
| Notes on Vario roof assembly work | AH77.30-P-0002-01R | ||
| 3 | Fold rear shelf (4) upward by hand until bolt (5) is accessible | ||
| 4 | Unscrew bolt (5). | ||
| 5 | Cut wiring harness (3) for Vario roof open/lowered limit switch (S69/11) at marking (arrow) and remove Vario roof open/lowered limit switch (S96/11) | ||
| Install | |||
| 6 | Position suitable heat-shrinkable tube over lines in wiring harness (3) | ||
| Risk of injury caused by burns to skin and eyes, risk of poisoning caused by inhaling fumes during soldering. | Wear protective gloves, protective clothing and eye protection. Ensure that the work area is adequately ventilated. Secure power supply cables. Avoid sources of fire in working area. | - | |
| 7 | Connect wiring harness (3) with Vario roof open/lowered limit switch (S69/11) by soldering | AR00.19-P-0100-05VA | |
| Figure | |||
| Figure | |||
| 8 | Protect repair area after cable repairs | - | |
| *WH58.30-Z-1004-20A | |||
| 9 | Position Vario roof open/lowered limit switch (S69/11) on installation location and tighten with bolt (5) | ||
| 10 | Fasten wiring harness (3) | Replace tie strap. |
|
| Notes on Vario roof assembly work | AH77.30-P-0002-01R | ||
| 11 | Install cover on Vario roof crossmember (1) | AR77.30-P-3976V |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1004-20A | Hot-air gun |
