Remove/install Vario roof (locked) limit switch - AR77.39-P-3691V
MODEL 171.4
| Remove | |||
|---|---|---|---|
| 1 | Remove paneling at front of Vario roof | AR68.30-P-4350V | |

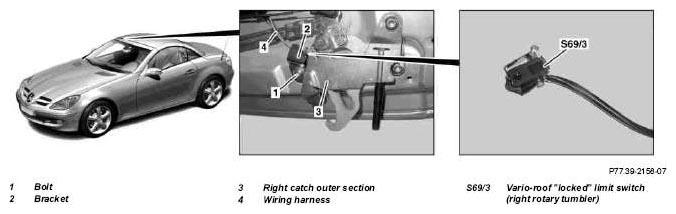

| 2 | Unscrew bolt (1) until bracket (2) can be pivoted to side | ||
| 3 | Pivot holder (2) to side and unclip Vario roof "locked" limit switch (right rotary tumbler) (S69/3) from right catch outer section (3) with suitable screwdriver | ||
| 4 | Cut electrical wiring harness (4), approx. 15 to 20 cm from Vario roof "locked" limit switch (right rotary tumbler) (S69/3) | ||
| Install | |||
| 5 | Position suitable heat-shrinkable tube over lines in electrical wiring harness (4) | ||
| Risk of injury with burns to skin and eyes, risk of poisoning from inhaling fumes during soft soldering. | Wear protective gloves, protective clothing and eye protection. Ensure that the work area is adequately ventilated. Secure mains cables. Avoid sources of fire in working area. | - | |
| 6 | Connect electrical wiring harness (4) to Vario roof "locked" limit switch (right rotary tumbler) (S69/3) by soldering | AR00.19-P-0100-05VA | |
| Fig 2 | |||
| Fig 3 | |||
| 7 | Protect repair area after cable repairs | AR00.19-P-0100-08A | |
| Notes on cable protection | AH00.19-P-1000-11A | ||
| *WH58.30-Z-1004-20A | |||
| 8 | Clip Vario roof "locked" limit switch (right rotary tumbler) (S69/3) to right catch outer section (3) | ||
| 9 | Position bracket (2) and tighten bolt (1) | *BA77.33-P-1001-01A | |
| 10 | Install paneling at front of Vario-roof | AR68.30-P-4350V |
SOFT TOP - MECHANICAL SYSTEM
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA77.33-P-1001-01A | Bolt, lock to Vario roof | Nm | 9 |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1004-20A | Hot-air gun |
