Adjust trunk lid gas-operated strut - AR88.50-P-5000-02V

MODIFICATION NOTES

27.9.04

Tightening torque added

Step 3

TRUNK LID

Number	Designation		Model 171
BA88.50-P-1023-01A	Ball head bolts to trunk lid	Nm	20

Press open trunk lid down at rear, remove stop buffer (1) and insert (4) from left and right hinge lever (2).

Fig 1: Identifying Stop Buffer And Hinge Lever
Courtesy of MERCEDES-BENZ USA
Loosen ball head bolts (3) on mounts of left and right gas-operated strut (5) until mounts of gas-operated struts (5) can be moved.
Press trunk lid toward front until hinge lever (2) reaches stop (arrows) and tighten ball head bolts (3).
Do not push trunk lid too far toward front to prevent damaging the tubular frame and the hinge lever (2).

Observe tightening torque specified for ball head bolts (3).

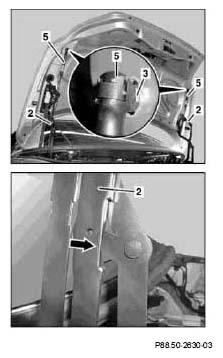

Fig 2: Identifying Hinge Lever, Head Bolts And Gas-Operated Struts
Courtesy of MERCEDES-BENZ USA
Simultaneously pull left and right hinge lever (2) on rear struts (6) toward rear, then push trunk downward at rear and install insert (4) with stop buffers (1) on left and right hinge levers (2).
Pulling the rear struts (6) toward rear overcomes the dead center point on the hinge lever joints (2).
Check adjustment of gas-operated struts (5) by pulling trunk lid up and down.
The stop buffers (1) should make contact with the rear struts (6) of the hinge lever (2) under tension.

Fig 3: Identifying Stop Buffers, Hinge Lever And Rear Struts
Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Stop Buffers And Hinge Lever
Courtesy of MERCEDES-BENZ USA
