Remove/install hinge lever for trunk lid - AR88.50-P-5120V
MODEL 171.4
| Remove | |||
|---|---|---|---|
| Risk of injury to fingers being jammed or pinched when Remove/install or aligning hoods, doors, trunk lid/tailgate or sliding roof. | When moving components, ensure that no body parts or limbs are within the operating range of moving parts. | - | |
| 1.1 | Open trunk lid (3) | When removing left hinge lever (2). | |
| 2.1 | Unscrew bolt (4) | When removing left hinge lever (2). | |
| 3.1 | Unscrew nuts (5) | When removing left hinge lever (2). | |
| 4.1 | Remove trunk lid wiring harness (7) together with wiring harness bracket (6) from left hinge lever (2) | When removing left hinge lever (2). | |
| 5.1 | Close trunk lid (3) | When removing left hinge lever (2). |
|
| 6 | Move trunk lid (3) to assembly position and secure | AR88.50-P-5000-01V | |

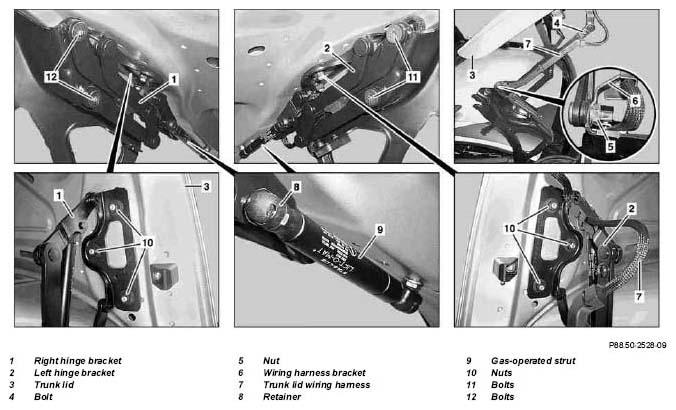

| Figure | |||
| Injury hazard Gas-operated struts are under high pressure and can pinch and crush body parts during work | Only remove and install gas-operated struts in the relaxed position and when the components are secured properly. | - | |
| 7 | Lift retainer (8) and remove gas-operated strut (9) from left hinge lever (2) or right hinge lever (1) | ||
| 8 | Unscrew nuts (10) | ||
| 9.1 | Remove bolts (11) | When removing left hinge lever (2). | |
| 9.2 | Remove bolts (12) | When removing right hinge lever (1). | |
| 10 | Remove left hinge lever (2) or right hinge lever (1) from tubular frame | ||
| Install | |||
| 11 | Position left hinge lever (2) or right hinge lever (1) between trunk lid (3) and tubular frame | ||
| 12.1 | Position bolts (11), position wiring harness holder (6) on left hinge lever (2) and tighten bolts (11) with associated nuts | When installing left hinge lever (2). | |
| *BA88.50-P-1010-01A | |||
| 13.1 | Tighten bolt (4) | When installing left hinge lever (2). | |
| 14.1 | Tighten bolts (12) with associated nuts | When installing right hinge lever (1). | |
| *BA88.50-P-1010-01A | |||
| 15 | Screw on nuts (10) | ||
| 16.1 | Install trunk lid wiring harness (7) on left hinge lever (2) | When installing left hinge lever (2). | |
| Injury hazard Gas-operated struts are under high pressure and can pinch and crush body parts during work | Only remove and install gas-operated struts in the relaxed position and when the components are secured properly. | - | |
| 17 | Clip gas-operated strut (9) to left hinge lever (2) or right hinge lever (1) | ||
| 18 | Remove support | Figure | |
| 19 | Swing trunk lid (3) down and lock in trunk lid lock | ||
| 20 | Switch on ignition, close trunk lid (3) completely with Vario roof actuation switch | ||
| 21 | Switch off ignition | ||
| 22 | Check adjustment of trunk lid (3), adjust if required | ||
| Adjust trunk lid (3) | AR88.50-P-5200V | ||
| 23 | Tighten nuts (10) | *BA88.50-P-1014-01A |
TRUNK LID
| Number | Designation | Model 171 | |
|---|---|---|---|
| BA88.50-P-1010-01A | Bolt, hinge lever to tubular frame | Nm | 9 |
| BA88.50-P-1014-01A | Nut, hinge lever to trunk lid | Nm | 20 |
