Install model designation on trunk lid - AR88.50-P-5050V

MODEL 171.4

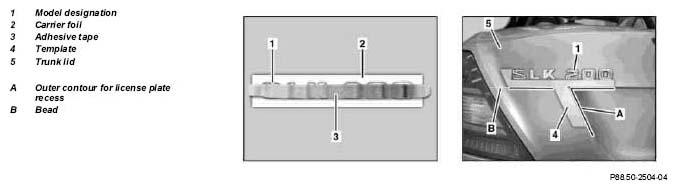

Fig 1: Identifying Model Designation On Trunk Lid

Courtesy of MERCEDES-BENZ USA

	Install
1	Check position of individual letters and numbers of model designation (1) on carrier foil (2) and correct, if necessary
2	Mask individual letters and numbers of model designation (1) with adhesive tape (3)
3	Clean mounting point on trunk lid (5) and degrease
4	Install template (4) on trunk lid (5) and align	Align template (4) along outer contour of license plate recess (A) and bead (B) on trunk lid (5)
			Fig 2
5	Remove carrier foil (2)	Model designation (1) should remain fastened on the adhesive tape (3)
6	Align model designation (1) on template (4) and press on.
7	Remove adhesive tape (3)

Fig 2: Identifying Set Of Templates (171 589 03 23 00)
