Assess condition of brake linings - AP42.10-P-4252SLC: Notes
MODEL 230
| Check | |||
|---|---|---|---|
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||

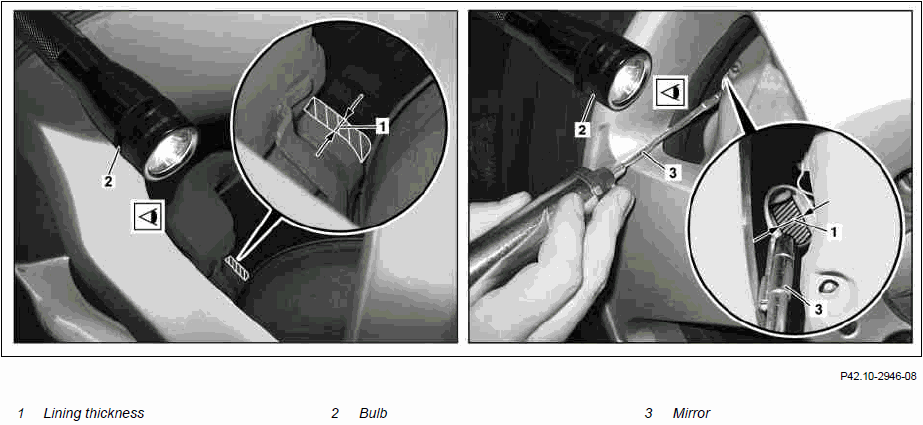

| 1 | Assess lining thickness (1) of brake pads on front axle | If necessary, use lamp (2) or mirror (3). The thickness of the pad backing plate can be used as a guide when assessing brake lining thickness. If, in exceptional cases, assessment by means of visual inspection is not possible, ↓ remove wheels to conduct assessment, subject to separate repair order. |
|
| Brake pad thickness (front). | *BE42.10-P-1001-05N | ||

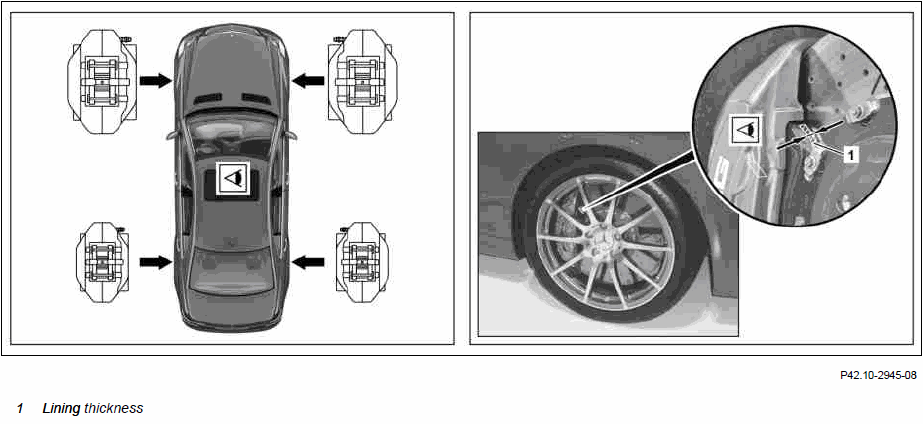

| 2 | Assess lining thickness (1) of brake pads on rear axle | If necessary, use lamp (2) or mirror (3). The thickness of the pad backing plate can be used as a guide when assessing brake lining thickness. Brake pad thickness If, in exceptional cases, assessment by means of visual inspection is not possible, ↓ remove wheels to conduct assessment, subject to separate repair order. |
|
| Brake pad thickness (rear). | *BE42.10-P-1001-15N | ||
| 3 | Determine likely remaining distance of brake linings | If the wear limit for the brake linings is reached, the brake pads must be replaced subject to separate repair order. Otherwise the braking effect may be impaired and people, property and environmental damage may result! Per axle, the brake pad with the least lining thickness is to be used for determining likely remaining distance. In order to avoid an unscheduled workshop visit between services, it is necessary to determine the remaining distance of the present brake linings. If the remaining distance determined is smaller than the next service interval, premature brake pad replacement should be recommended to the customer. |
AP42.10-P-4253-03EW |
