Remove/install cover on center console - AR68.20-P-2350RA
MODEL 230.4 as from 15.1.04
| Remove/install | |||
|---|---|---|---|
| 1 | Move driver and front passenger seat downward and toward rear. | ||
| 2.1 | Remove cover on gearshift lever | Except model 230.470 Except model 230.4 with code (P99) "AMG Black Series" special model |
AR68.20-P-2310R |
| 2.2 | Remove selector lever handle with covering | Model 230.470 | AR27.60-P-0905AMG |
| 2.3 | Unscrew selector lever handle | Model 230.4 with code (P99) "AMG Black Series" special model | |
| 3.1 | Move selector lever position "D" | Vehicles with transmission 722 | |
| 3.2 | Shift transmission to neutral | Vehicles with transmission 716 | |
| 4 | Switch off ignition | ||

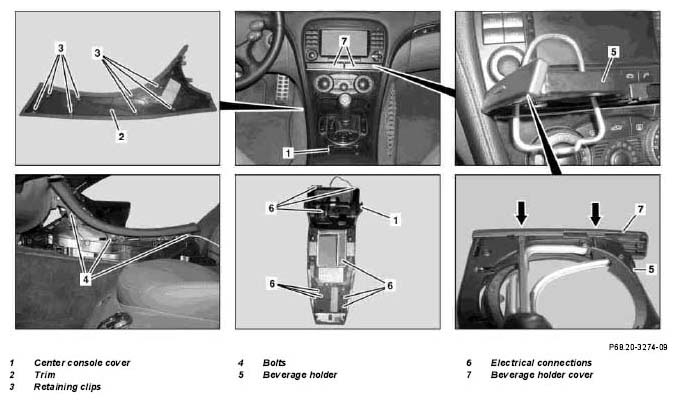

| 5 | Unclip left and right paneling (2) from retaining clips (3) with mounting wedge and remove | Figure | |
| 6 | Unscrew bolts (4) from center console on left and right side | ||
| 7 | Open beverage holder (5) and unclip beverage holder cover (7) with screwdriver (arrows). | ||
| 8 | Remove ashtray insert | ||
| 8 | Open stowage tray in center console | ||
| 10 | Close beverage holder (5) and lift center console cover (1) until connectors on electrical connections (6) are accessible. | ||
| 11 | Release connectors on electrical connections (6) and disconnect | ||
| 12 | Remove center console cover (1) | ||
| 13 | Install in the reverse order |
