Satellite radio antenna, component description - GF82.62-P-4110R
MODEL 230.4 with CODE (536) SIRIUS satellite radio
Location

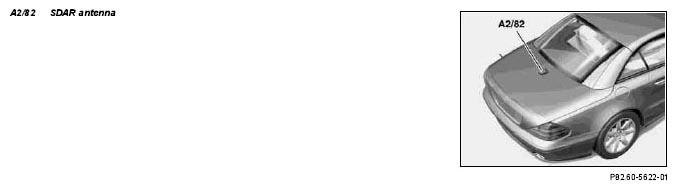

The SDAR antenna is located in the center on the trunk lid
Task
The SDAR antenna receives the SIRIUS satellite radio signals that are transmitted by the satellites or gap-filling transmitters and forwards them to the SDAR control unit (N87/5).
Up to 31.5.05 the transfer to the SDAR control unit takes place via 2 antenna lines. As of 1.6.05 this is modified to one antenna line.
