Telephone (D-network), block diagram - GF82.70-P-0003-06RA

Permanently installed without VCS

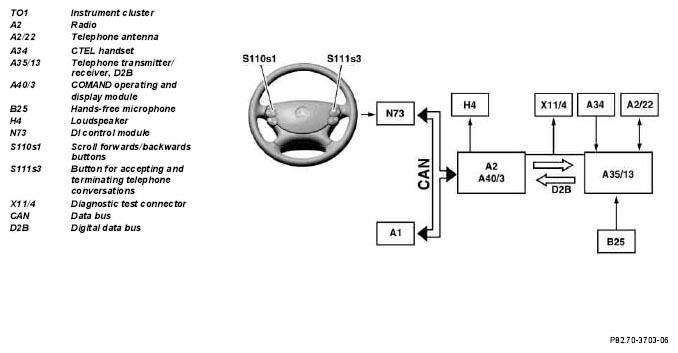

Fig 1: Telephone (D-Network) Block Diagram - Permanently Installed Without VCS
G05075649

IMPORTANT Loudspeaker output for the hands-free system is accomplished via the entire loudspeaker system.

Permanently installed with VCS

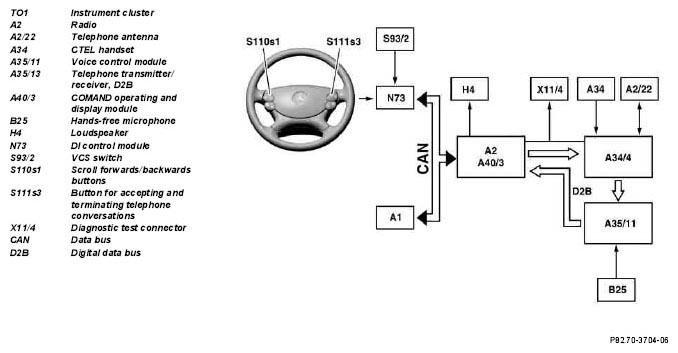

Fig 2: Telephone (D-Network) Block Diagram - Permanently Installed With VCS
G05075650

IMPORTANT Loudspeaker output for the hands-free system is accomplished via the entire loudspeaker system.
