Remove/install side paneling in trunk - AR68.30-P-4800R
MODEL 230.4 with CODE (P99) "AMG Black Series" special model
| Remove/install | |||
|---|---|---|---|
| 1 | Completely close Vario roof | ||
| Risk of injury caused by moving parts that can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when components are in motion. | AS00.00-Z-0009-01A | |
| 2 | Positioning trunk lid to assembly position | AR88.50-P-5000-01R | |
| 3 | Remove trunk partition | ||
| Remove/install trunk retractable partition | AR68.50-P-3000R | ||

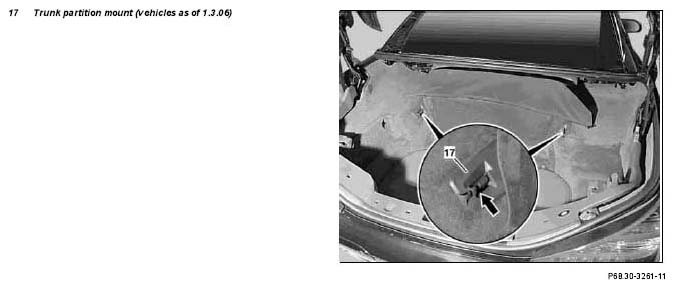

| 4 | Unscrew concealed bolt (arrow) on left or right trunk partition mount (17) and remove trunk partition mount (17) toward rear. | On vehicles as of 1.3.06 | |
| 5 | Remove paneling from rear center section | AR68.30-P-4785R | |

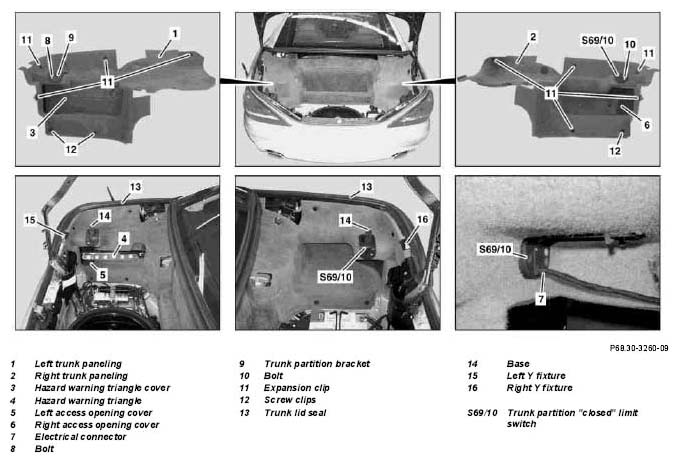

| 6 | Remove hazard warning triangle cover (3) and remove hazard warning triangle (4). | When removing left trunk paneling (1). | |
| 7 | Unclip left access opening cover (5) or right access opening cover (6) and remove. | ||
| 8 | Disconnect electrical connector (7) from trunk partition "closed" limit switch (S69/10) | When removing right trunk paneling (2). |
|
| 9.1 | Unscrew bolt (8) and remove trunk partition bracket (9). | When removing left trunk paneling (1). | |
| 9.2 | Unscrew bolt (10) and remove trunk partition "closed" limit switch (S69/10) | When removing right trunk paneling (2). | |
| 10 | Remove left Y fasteners (15) or right Y fasteners (16). | ||
| 11 | Remove expansion clips (11) and screw clips (12). | ||
| 12 | Loosen left trunk paneling (1) or right trunk paneling (2) from trunk lid seal (13). | ||
| 13 | Pull left trunk paneling (1) or right trunk paneling (2) over support (14) and remove. | ||
| 14 | Install in the reverse order |
