Telephone antenna, location/task - GF82.62-P-4105RA

MODEL 230 with CODE (388) "Portable CTEL" UPCI telephone system

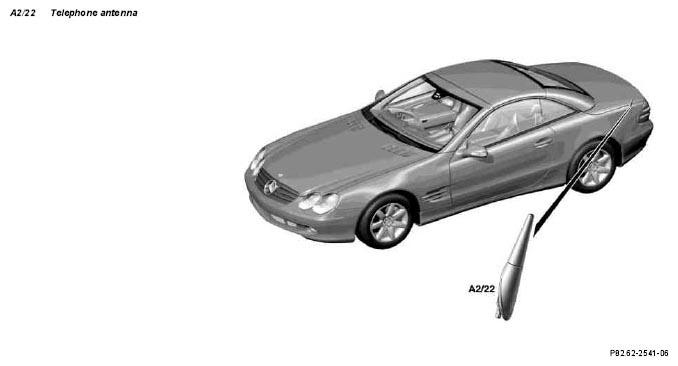

Fig 1: Identifying Telephone Antenna Location
G05075631
  Telephone antenna, location The telephone antenna (A2/22) is located on the left rear side piece.
  Telephone antenna, purpose The telephone antenna (A2/22) transmits and receives telephone signals and the telestart signal for the stationary heater with code (228) stationary heater. The is done by converting electromagnetic radio waves into electric voltage and vice-versa.
