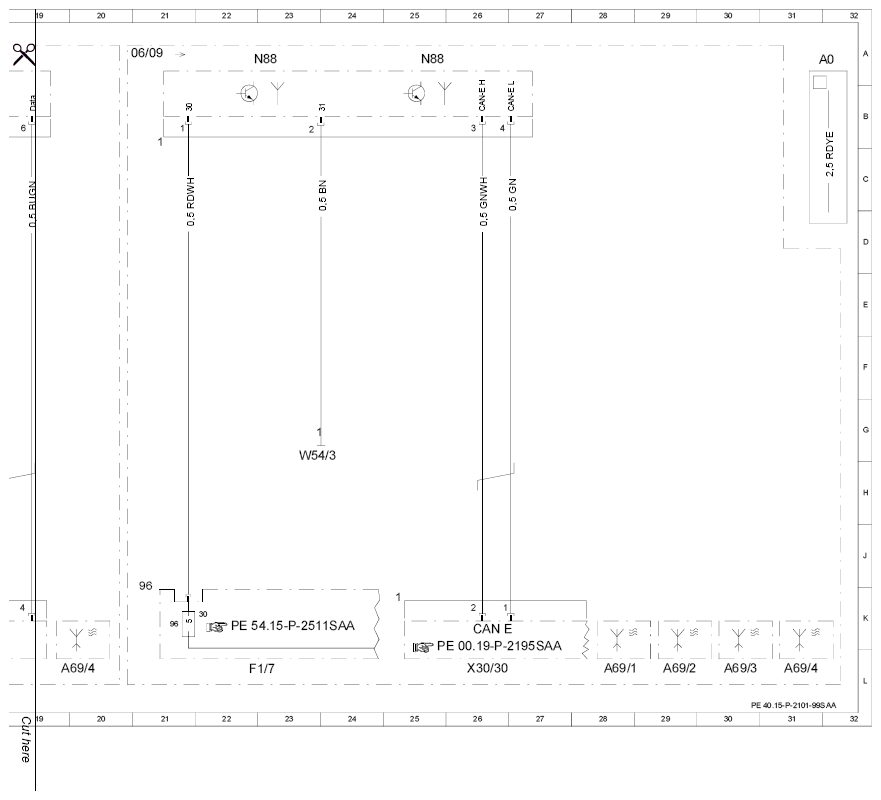

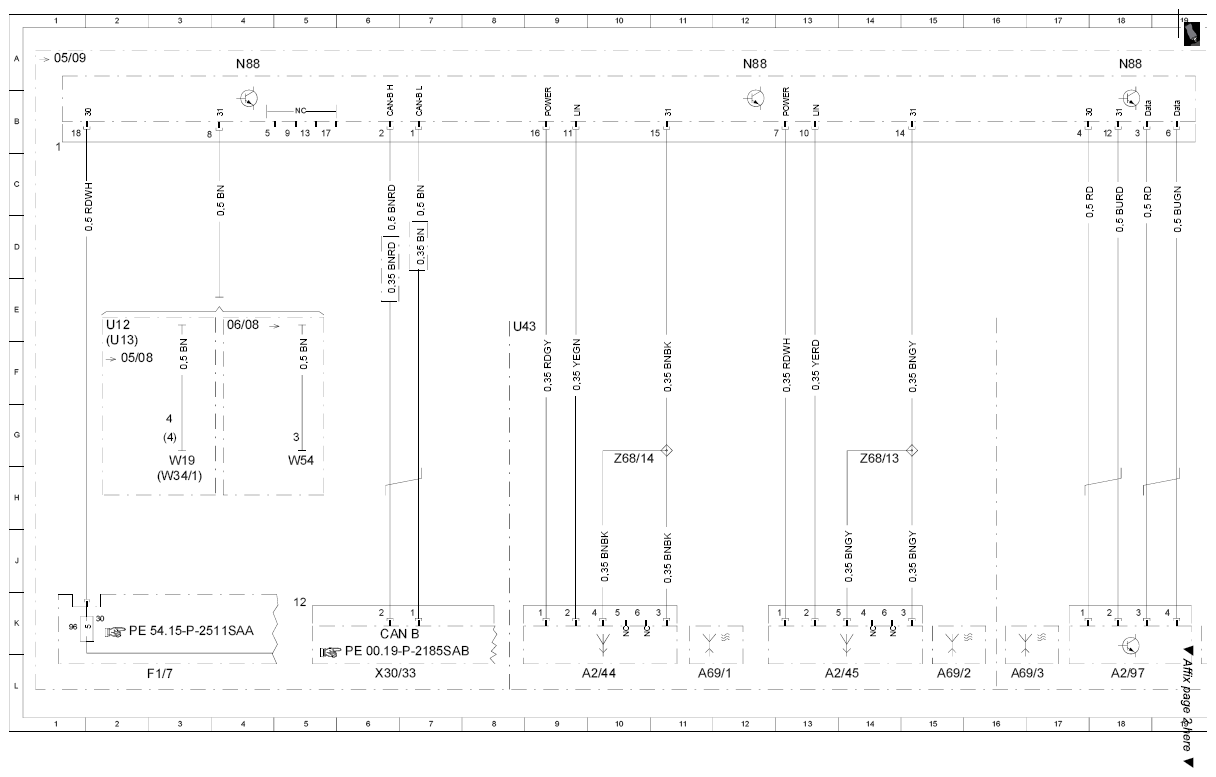

Wiring diagram for tire pressure monitor control unit - PE40.15-P-2101-99SAA
MODEL 221.0 /1 with CODE (494) USA version control unit N88
MODEL 221.0 /1 with CODE (475) Tire pressure monitor (premium) control unit N88
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 23L |
| A2/44 | Left front TPM [RDK] wheel antenna | 9L |
| A2/45 | Right front TPM [RDK] wheel antenna | 13L |
| A2/97 | Central TPM [RDK] antenna | 18L |
| A69/1 | Left front TPM [RDK] wheel sensor | 11L |
| A69/2 | Right front TPM [RDK] wheel sensor | 15L |
| A69/3 | Left rear TPM [RDK] wheel sensor | 16L |
| A69/4 | Right rear TPM [RDK] wheel sensor | 19L |
| F1/7 | Left instrument panel fuse box | 2L |
| F1/7f96 | Fuse 96 | 1K |
| N88 | TPM control module | 4A |
| N88 | TPM control module | 12A |
| N88 | TPM control module | 18A |
| U12 | Valid for left-hand steering | 2C |
| U13 | Valid for right-hand steering | 2D |
| U43 | Valid for ECE | 8E |
| W19 | Ground (right front seat crossmember) | 3E |
| W34/1 | Ground (electronics - left footwell) | 3E |
| X30/33 | Right interior CAN/FFS [RBA] voltage distributor connector | 6L |
| Z68/13 | TPM [RDK] LIN bus ground connector sleeve | 14H |
| Z68/14 | TPM [RDK] LIN bus ground connector sleeve | 10H |
