Remove/install rear axle pressure reservoir - AR32.50-P-0011SX

MODEL 216, 221.0 /1 with CODE (487) Active Body Control (ABC)

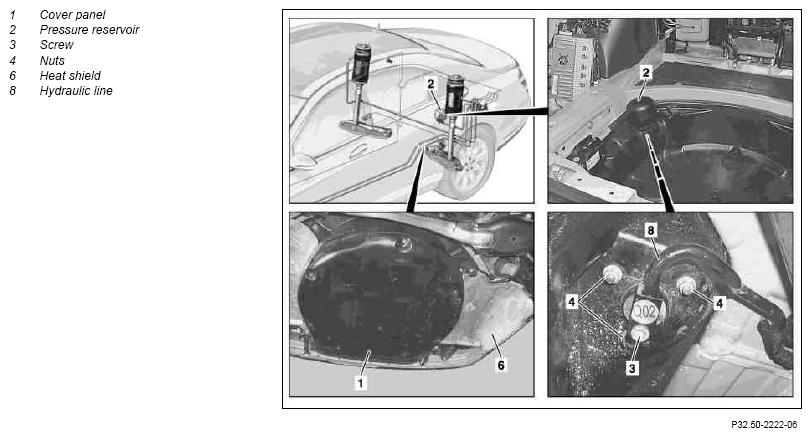

Fig 1: Identifying Rear Axle Pressure Reservoir Remove/Install Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

25.8.05	Pressure reduction time extended from 5 to 10 minutes	Step 5
	Seal pressure reservoir added	Operation step 6

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on fitting hydraulic lines and hoses		AH32.50-P-0001-02A
	Before opening the hydraulic system, thoroughly clean the area surrounding the separation point. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system
	Notes on Active Body Control suspension		AH32.50-P-0001-01N
1	Relieve pressure in the rear axle ABC system		AR32.50-P-0001-01N
2	Remove left exhaust tailpipe	Vehicles with gasoline engine	AR49.10-P-7100SX
		Vehicles with diesel engine	AR49.10-P-7100SXI
3	Detach cover panel (1) of spare tire well
4	Detach heat shield (6)
5	Remove bolt (3) and remove hydraulic line (8) from pressure reservoir (2)	Detach hydraulic line (8) at the earliest 10 minutes after switching off the engine, as only then is the ABC system completely unpressurized. Installation: Check sealing rings for damage and replace if necessary. Check support rings for damage and replace the complete hydraulic line (8) if necessary.	*BA32.50-P-1007-01B
6	Seal pressure reservoir (2) with stop plugs	Plug	Fig 2
7	Unscrew nuts (4)		*BA32.50-P-1005-01B
8	Remove rear center assembly paneling	See Remove panelings in luggage compartment.	AR68.30-P-4600SX
9	Remove pressure reservoir (2)	If necessary:↓
		Dispose of pressure reservoir.	OS32.30-P-0620-01A
10	Install in the reverse order
11	Fill and bleed ABC system		AR32.50-P-0021SX

ACTIVE BODY CONTROL SUSPENSION

Number	Designation		Model 216	Model 221
BA32.50-P-1005-01B	Nut, rear axle pressure reservoir to spare tire well	Nm	8	10
BA32.50-P-1007-01B	Bolt, line to rear axle pressure reservoir	Nm	20	20

Fig 2: Identifying Set Of Stop Plugs (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
