| Code: |
Designation: |
Position: |
| A0 |
Explanation of color codes |
64 L |
| A13 |
Electric parking brake control unit |
44 L |
| A2/12 |
Rear window antenna amplifier module |
51 L |
| A39/1 |
Rear armrest refrigerator |
28 L |
| A76 |
Left front reversible emergency tensioning retractor |
58 K |
| A76/1 |
Right front reversible emergency tensioning retractor |
59 L |
| A90/1 |
TV combination tuner (analog/digital) |
20 L |
| M3 |
Fuel pump (FP) |
34 L |
| M3 |
Fuel pump (FP) |
42 K |
| M3x1 |
Fuel pump connector |
33 K |
| N10/2 |
Rear SAM control module with fuse and relay module |
4A |
| N10/2 |
Rear SAM control module with fuse and relay module |
12A |
| N10/2 |
Rear SAM control module with fuse and relay module |
20 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
28 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
36 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
44 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
52 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
60 A |
| N10/2f115 |
Fuse 115 |
54 C |
| N10/2f117 |
Fuse 117 |
32 C |
| N10/2f118 |
Fuse 118 |
41 C |
| N10/2f123 |
Fuse 123 |
58 C |
| N10/2f124 |
Fuse 124 |
57 C |
| N10/2f125 |
Fuse 125 |
47 C |
| N10/2f126 |
Fuse 126 |
46 C |
| N10/2f128 |
Fuse 128 |
36 C |
| N10/2f129 |
Fuse 129 |
49 C |
| N10/2f130 |
Fuse 130 |
44 C |
| N10/2f131 |
Fuse 131 |
51 C |
| N10/2f133 |
Fuse 133 |
24 C |
| N10/2f134 |
Fuse 134 |
6C |
| N10/2f135 |
Fuse 135 |
9C |
| N10/2f136 |
Fuse 136 |
15C |
| N10/2f139 |
Fuse 139 |
28 C |
| N10/2f140 |
Fuse 140 |
30 C |
| N10/2f147 |
Fuse 147 |
13C |
| N10/2f149 |
Fuse 149 |
16C |
| N10/2f150 |
Fuse 150 |
20 C |
| N10/2f151 |
Fuse 151 |
11 C |
| N10/2f152 |
Fuse 152 |
14C |

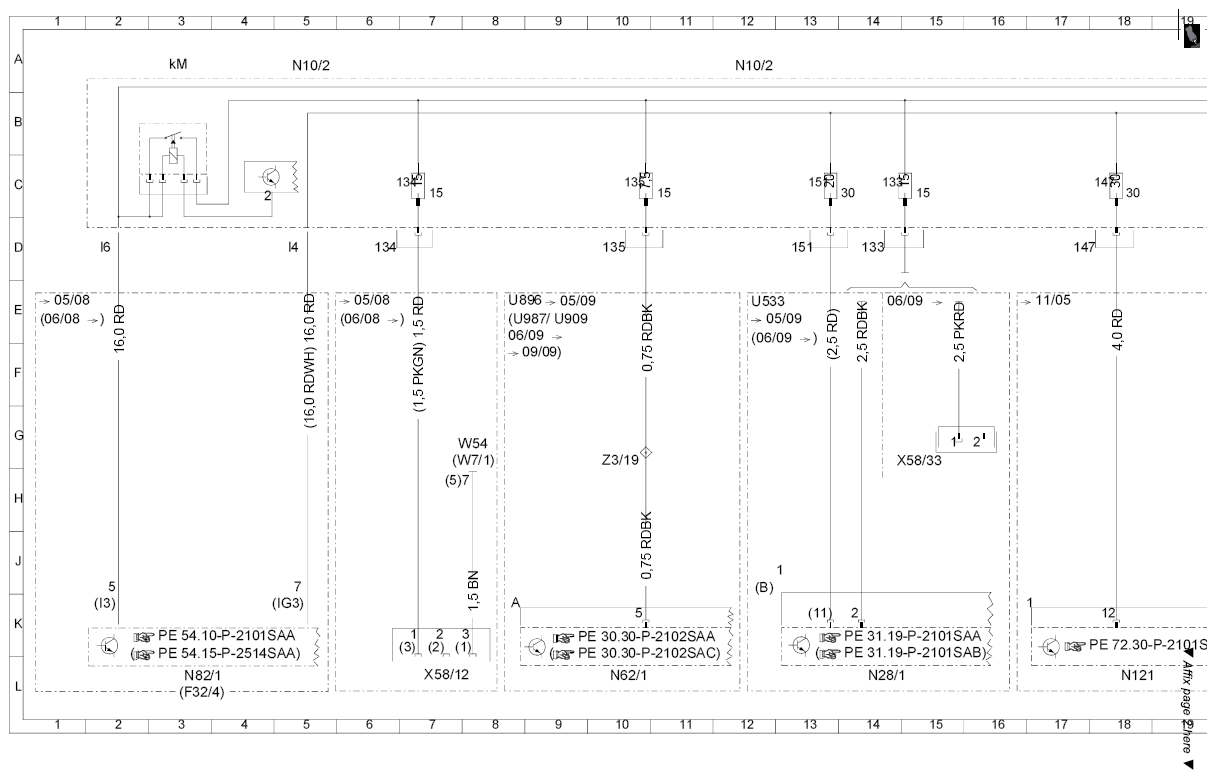

| N10/2kM |
Circuit 15 relay |
2A |

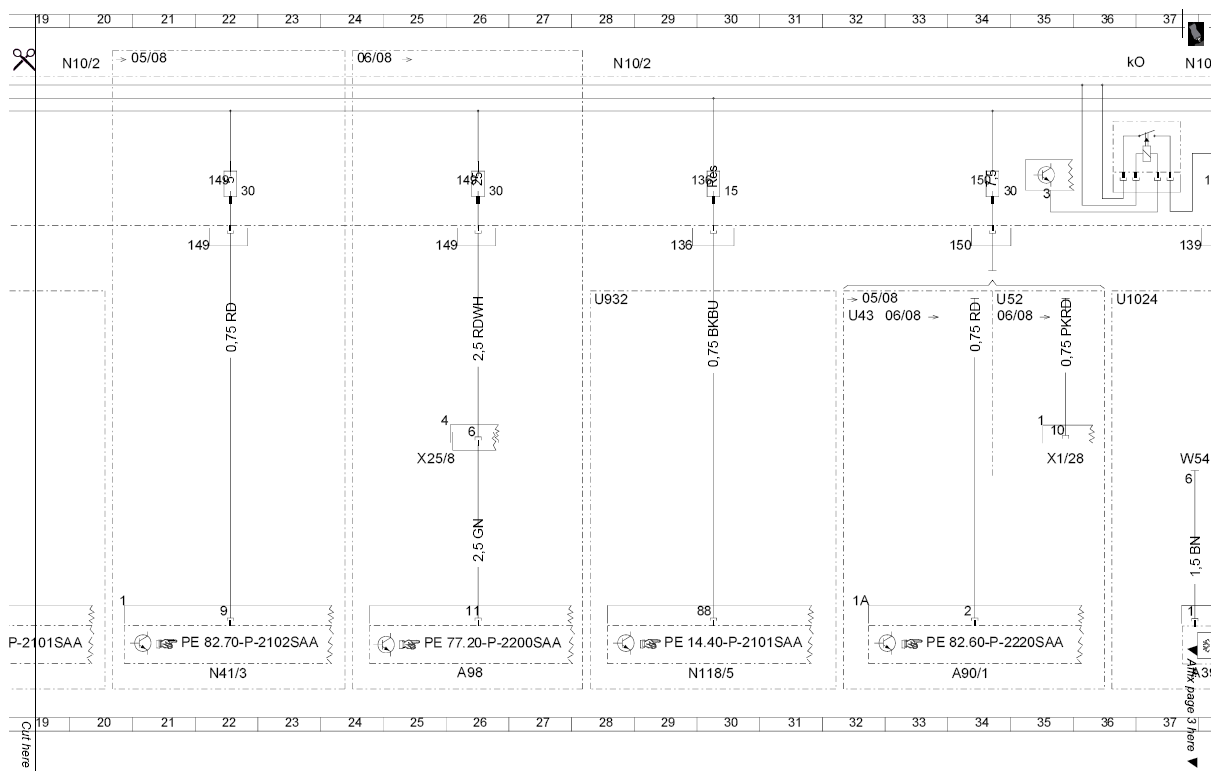

| N10/2kO |
Power outlet relay |
26 A |
| N10/2kP |
Rear window defroster relay |
53 A |

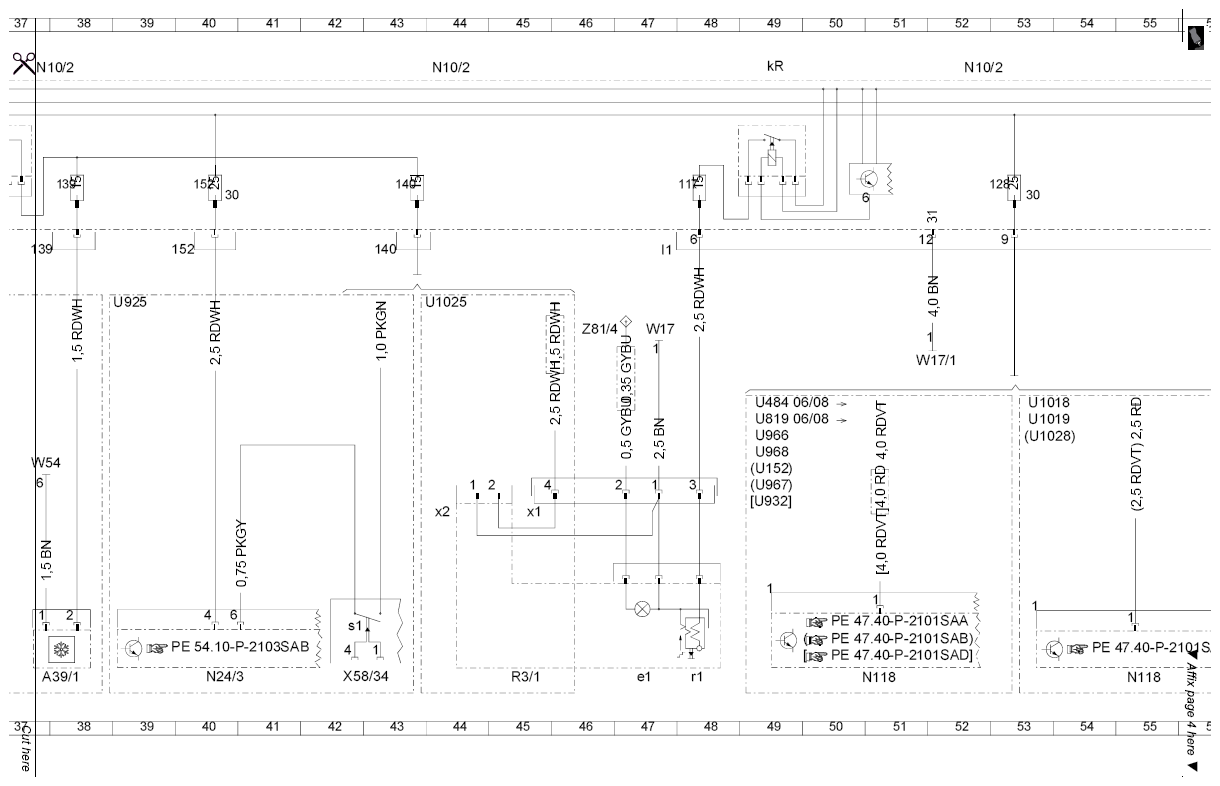

| N10/2kR |
Cigar lighter relay |
33 A |

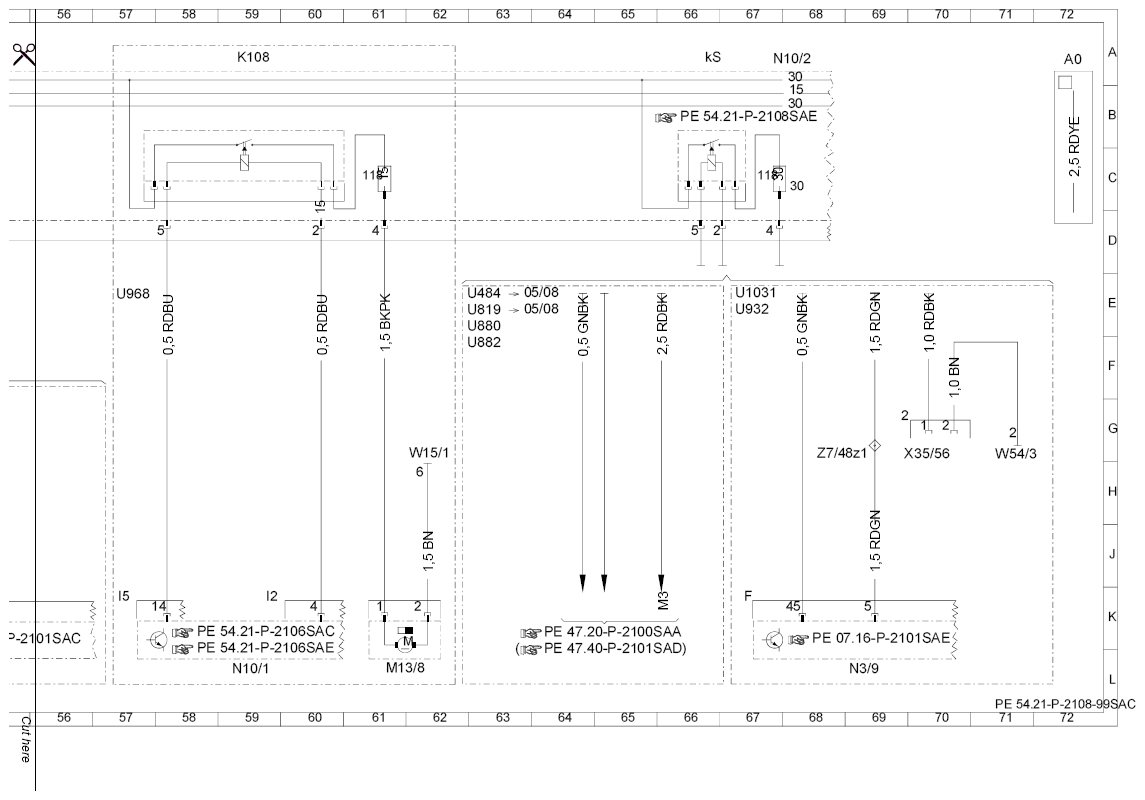

| N10/2kS |
Fuel pump relay module |
40 A |
| N118 |
Fuel pump control module |
36 L |
| N121 |
TLC [HDS] control module |
13L |
| N28/1 |
Trailer recognition control module |
24 L |
| N41/3 |
Voice control system (VCS [SBS]) control unit |
16L |
| N62/1 |
Radar senors control unit (SGR) |
9L |
| N70 |
Overhead control panel control module |
47 L |
| N82/1 |
Vehicle power supply control unit |
3L |
| R1 |
Heated rear window |
56 H |
| R3/1 |
Rear cigar lighter |
31 L |
| R3/1e1 |
Illumination |
31 L |
| R3/1 r1 |
Heating element |
32 L |
| R3/1x1 |
Rear cigar lighter (with ashtray illumination) connector |
30 H |
| R3/1x2 |
12V socket |
28 H |
| U152 |
Valid for engine 156 |
33 G |
| U484 |
Valid for M273 ME |
39 G |
| U779 |
Valid for engine 275 |
33 G |
| U819 |
Valid for engine 272 |
39 G |
| U880 |
Valid for engine 642 |
39 G |
| U882 |
Valid for engine 629 |
39 G |
| U890 |
Not valid for tilting/sliding roof (SR [SHD]) |
48 E |
| W17 |
Ground (right rear seat) |
32 E |
| W17/1 |
Ground (left rear seat) |
36 F |
| W54 |
Ground, wheelhousing rear right |
7H |
| W54 |
Ground, wheelhousing rear right |
28 H |
| X1/16 |
Roof antenna connector |
51 H |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
46 H |
| X58/12 |
Luggage compartment socket |
6L |
| Z3/19 |
Circuit 15 connector sleeve (fused) (PTS) |
9H |
| Z4/3 |
Circuit 30 connector sleeve |
57 H |
| Z4/3 |
Circuit 30 connector sleeve |
58 H |
| Z81/4 |
Circuit 58d in FSS [RBA] connector sleeve |
31 E |
