Fanfare position of components - GF54.35-P-0001-01LE

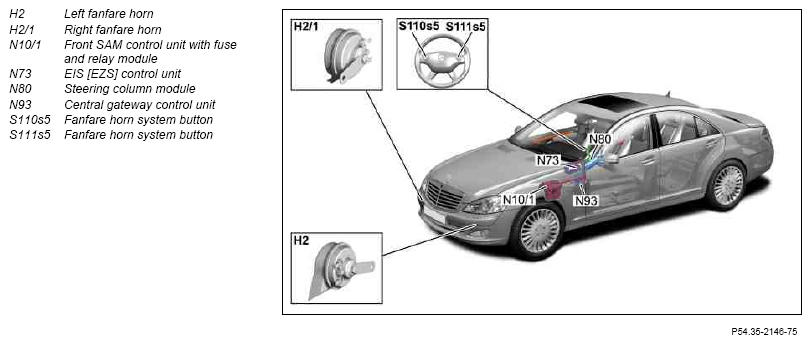

Fig 1: Locating Fanfare Components

G07593915

Courtesy of MERCEDES-BENZ USA
