| 1 |
Circuit 15, status |
18D |
| 10 |
Door rotary tumbler switch, status |
8E |
| 10 |
Door rotary tumbler switch, status |
16E |
| 10 |
Door rotary tumbler switch, status |
9B |
| 11 |
Yaw rate, lateral and longitudinal acceleration sensor, signal |
20D |
| 12 |
Accelerator pedal, status |
31D |
| 12 |
Accelerator pedal, status |
22E |
| 13 |
Transmission control, status |
30D |
| 14 |
Engine torque, reduce request |
28D |
| 15 |
Engine torque, increase request |
28D |
| 16 |
Multifunction steering wheel button group, signal |
4H |
| 16 |
Multifunction steering wheel button group, signal |
10E |
| 16 |
Multifunction steering wheel button group, signal |
17K |
| 16 |
Multifunction steering wheel button group, signal |
18G |
| 17 |
Brake fluid level switch, status |
9F |
| 17 |
Brake fluid level switch, status |
11H |
| 17 |
Brake fluid level switch, status |
16E |
| 18 |
BAS release switch, status |
20G |
| 19 |
Brake vacuum sensor, signal |
22E |
| 2 |
Vehicle speed, signal |
6G |
| 2 |
Vehicle speed, signal |
18E |
| 20 |
Membrane travel sensor, signal |
21G |
| 21 |
Solenoid valve, actuation |
27J |
| 3 |
Wheel speed, signal |
19D |
| 4 |
Steering angle, signal |
18J |
| 4 |
Steering angle, signal |
18G |
| 5 |
Instrument cluster, message |
4H |
| 5 |
Instrument cluster, message |
9E |
| 6 |
ESP OFF, request |
5G |
| 6 |
ESP OFF, request |
17E |
| 7 |
Parking brake, status |
3D |
| 7 |
Parking brake, status |
6D |
| 7 |
Parking brake, status |
17E |
| 8 |
Circuit 54, status |
8H |
| 8 |
Circuit 54, status |
9K |
| 8 |
Circuit 54, status |
9E |
| 9 |
Flashing brake lights, request |
8H |
| 9 |
Flashing brake lights, request |
10E |
| A1 |
Instrument cluster |
2H |

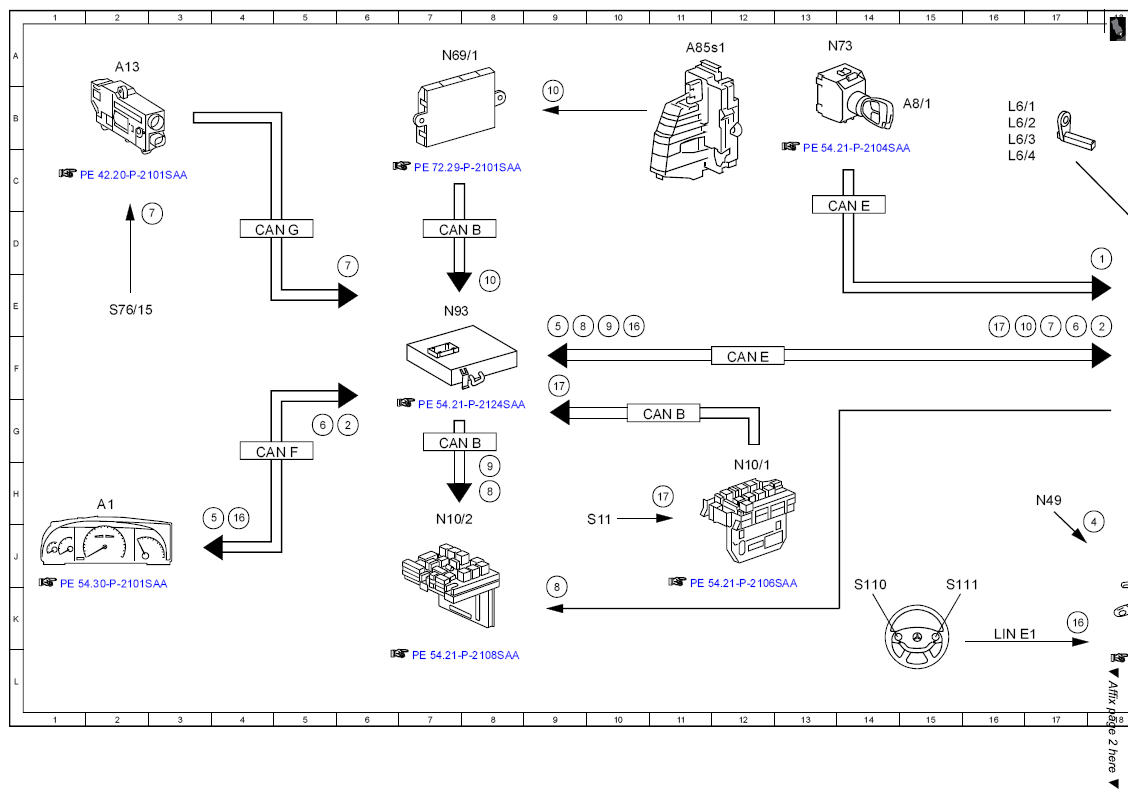

| A13 |
Electric parking brake control unit |
2A |
| A7/7b1 |
BAS diaphragm travel sensor |
26J |
| A7/7s1 |
BAS release switch |
22J |
| A7/7y1 |
BAS solenoid valve |
27J |
| A8/1 |
Transmitter key |
15B |
| A80 |
Intelligent servo module for DIRECT SELECT |
29E |
| A85s1 |
Left front rotary tumbler switch |
11A |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
20A |
| B37 |
Accelerator pedal sensor |
31E |
| B64/1 |
Brake vacuum sensor |
23C |
| CAN B |
Interior CAN |
11G |
| CAN B |
Interior CAN |
7G |
| CAN B |
Interior CAN |
7D |
| CAN C |
Drive train CAN |
29E |
| CAN E |
Chassis CAN |
12F |
| CAN E |
Chassis CAN |
14C |
| CAN E |
Chassis CAN |
19H |
| CAN E |
Chassis CAN |
25F |
| CAN F |
Central CAN |
4G |
| CAN G |
Front end CAN |
4D |
| CAN H |
Vehicle dynamics CAN |
20C |
| L6/1 |
Left front RPM sensor |
16B |
| L6/2 |
Right front RPM sensor |
16B |
| L6/3 |
Left rear RPM sensor |
16B |
| L6/4 |
right rear RPM sensor |
16C |
| LIN E1 |
Steering LIN |
16K |
| N10/1 |
Front SAM control unit with fuse and relay module |
12H |
| N10/2 |
Rear SAM control unit with fuse and relay module |
7H |
| N3/10 |
ME-SFI [ME] control unit |
25A |
| N3/10 |
ME-SFI [ME] control unit |
28A |
| N3/9 |
CDI control unit |
30A |

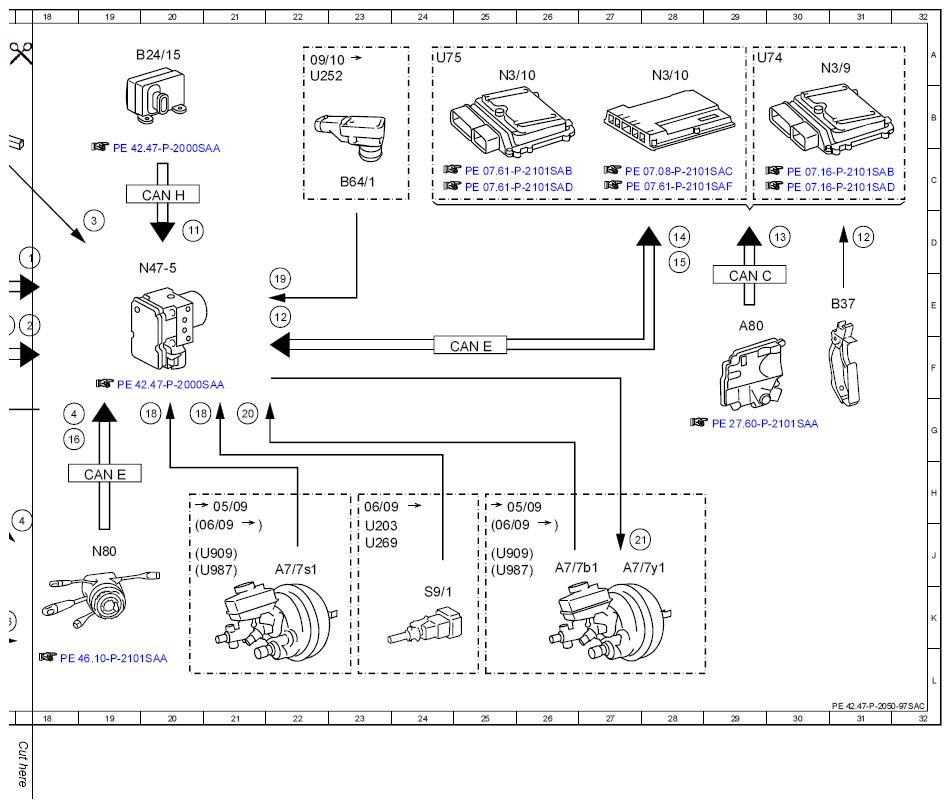

| N47-5 |
ESP control unit |
19D |
| N49 |
Steering angle sensor |
17H |
| N69/1 |
Left front door control unit |
7A |
| N73 |
EIS [EZS] control unit |
13A |
| N80 |
Steering column module |
19J |
| N93 |
Central gateway control unit |
7E |
| S11 |
Brake fluid indicator switch |
10H |
| S110 |
Left multifunction steering wheel button group |
14K |
| S111 |
Right multifunction steering wheel button group |
15K |
| S76/15 |
Electric parking brake switch |
2E |
| S9/1 |
Stop lamp switch |
24K |
| U203 |
Valid without DISTRONIC PLUS |
23J |
| U269 |
Not valid for Distronic Plus (light) |
23J |
| U74 |
Valid for diesel engines |
29A |
| U75 |
Valid for gasoline engines |
24A |
| U909 |
Valid for DISTRONIC PLUS |
21J |
| U909 |
Valid for DISTRONIC PLUS |
25J |
| U987 |
Valid for Distronic Plus (light) |
21J |
| U987 |
Valid for Distronic Plus (light) |
25J |
