Retrofit Mercedes-Benz InCar Internet connecting cable - AZ82.85-P-0005-05SX

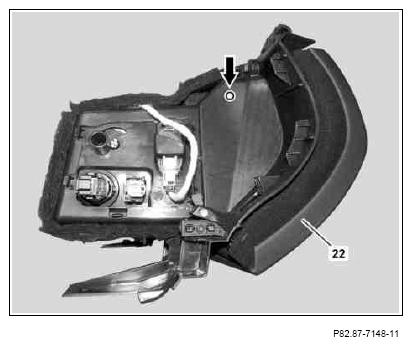

- Drill hole (arrow) to a diameter of 19 mm on glove box (22), as shown.
Cordless drill/driver
gotis://G_58.0_01.1

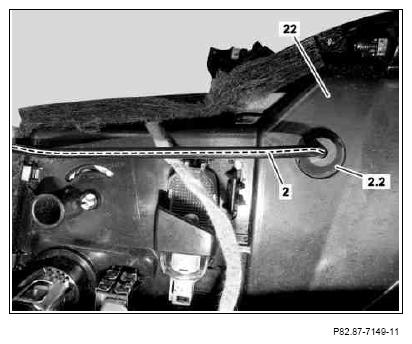

- Place InCar Internet connecting cable (2) in glove box (22) and route outwards through previously drilled hole.
The grommet (2.2) must engage in the side wall of the glove box (22).
- Route InCar Internet connecting cable (2) to rear of glove box (22) and fasten in place using felt tape.
