Remove/install engine cover - AR01.10-P-2405IM

ENGINES 275.980 in MODEL 215.379, 220.179

ENGINES 275.981 /983 in MODEL 230.479

ENGINES 275.982 in MODEL 221.179, 216.379

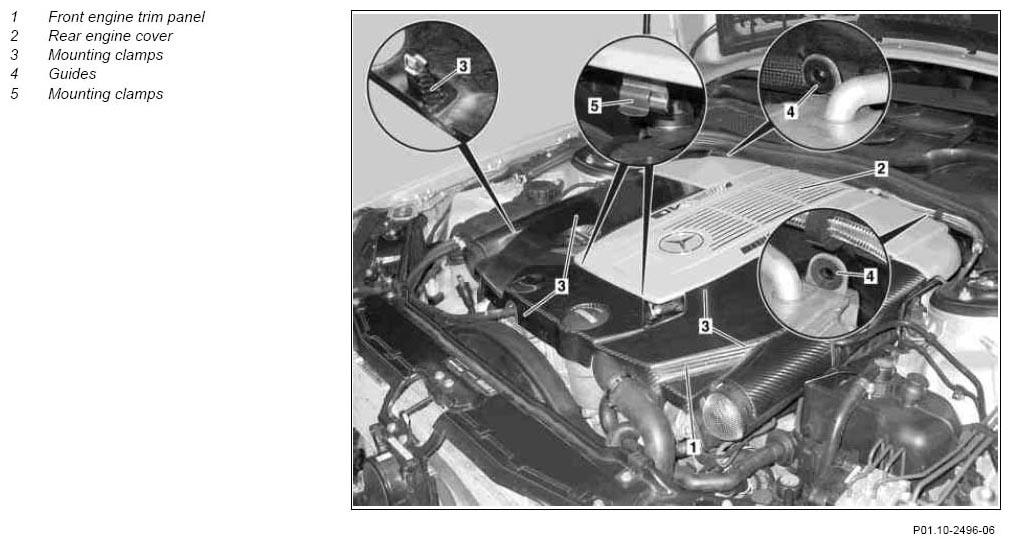

Fig 1: Identifying Engine Cover Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove the air intake pipe
2	Unclip mounting clamps (5, 2 pieces) for rear engine cover (2)
3	Pull out rear engine cover (2) from the guides (4) and remove it	Installation:  Ensure that the rubbers in the guides (4) are positioned correctly.
4	Unclip mounting clip (3, 5 pieces)	While unclipping, lift carefully in the area of the respective mounting clamp (3) otherwise the front engine cover (1) can break. Lift front engine cover (1) first to the front and then laterally a little to the right and to the left.
5	Remove front engine cover (1)
6	Install in the reverse order
