Remove/install stowage compartment or ashtray housing - AR68.20-P-2420SX
MODEL 221.0/ 1
| Remove/install | |||

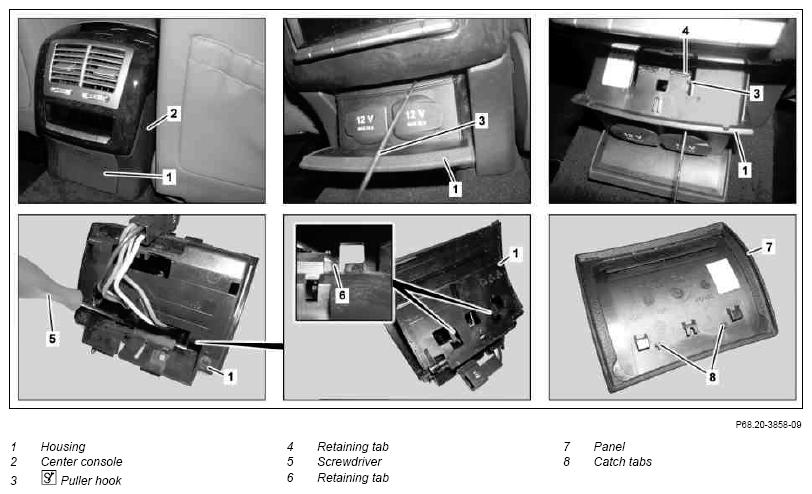

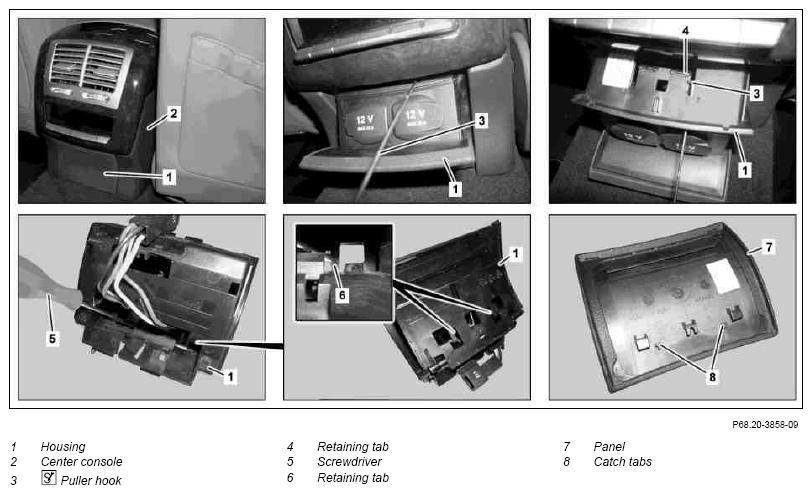

| 1 | Open housing (1) | ||
| 2 | Unlock retaining tab (4) with extraction hook (3) | Figure | |
| 3 | Unclip housing (1) out of center console (2) and disconnect electrical connector | ||
| 4 | Lift retaining tabs (6) with screwdriver (5) and unlock catch tabs (8) on cover (7) | Only when replacing housing (1) or cover (7). | |
| 5 | Remove cover (7) upward from housing (1) | Only when replacing housing (1) or cover (7). | |
| 6 | Install in the reverse order |
