Prepare headliner for installation - AR68.30-P-4305SX

MODEL 221.0/ 1

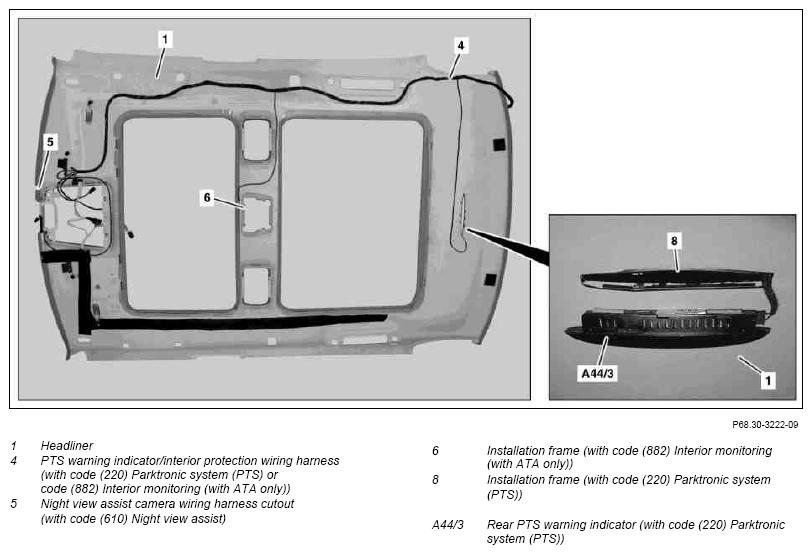

Fig 1: Identifying Headliner Components

Courtesy of MERCEDES-BENZ USA

Shown on model 221.0 with code (413) Panoramic glass roof with top sliding roof, code (220) Parktronic system (PTS), code (882) Interior monitoring (with ATA only), Code (610) Night view assist

	Remove
1	Remove headliner (1)	Vehicles without code (Z07) Top protection	AR68.30-P-4300SX
		Vehicles with code (Z07) Top protection	AR68.30-P-4300SXS
2.1	Remove rear PTS warning indicator (A44/3) from old headliner (1).	On vehicles with code (220) Parktronic system (PTS)
3.1	Remove ultrasonic echo sounder sensor from old headliner (1)	On vehicles with code (882) Interior monitoring (with ATA only)	AR80.50-P-9831SX
	Preparation
4.1	Prepare new headliner (1) for installing rear PTS warning indicator (A44/3)	On vehicles with code (220) Parktronic system (PTS) Replace installation frame (8). Body saw, see GOTIS http://gotis.aftersales.mercedes-benz.com	AR68.30-P-4300-04SX
5.1	Prepare new headliner (1) for installing ultrasonic echo sounder sensor.	On vehicles with code (882) Interior monitoring (with ATA only) Model 221.0, Model 221.1 without code (413) Panoramic glass roof with top sliding roof Replace installation frame (6). Body saw, see GOTIS http://gotis.aftersales.mercedes-benz.com	AR68.30-P-4300-05SX
		Model 221.1 with code (413) Panoramic glass roof with top sliding roof Replace installation frame (6). Body saw, see GOTIS http://gotis.aftersales.mercedes-benz.com	AR68.30-P-4300-05SY
		Felt strip	*BR00.45-Z-1074-01A
6.1	Prepare new headliner (1) for installing night view assist camera	On vehicles with code (610) Night View Assist Body saw, see GOTIS http://gotis.aftersales.mercedes-benz.com	AR68.30-P-4300-16SX
7.1	Glue PTS warning indicator/interior protection wiring harness (4) onto new headliner (1).	On vehicles with code (220) Parktronic system (PTS) or. Code (882) Interior monitoring (with ATA only) Replace PTS warning indicator/interior protection wiring harness (4). Pay attention to installation of lines.	AR68.30-P-4305-14SX
		Adhesive tape 4657, 50 mm	*BR00.45-Z-1071-02A
	Install
8.1	Install rear PTS warning display (A44/3) into new headliner (1).	On vehicles with code (220) Parktronic system (PTS)
9.1	Install ultrasonic echo sounder sensor in new headliner (1).	On vehicles with code (882) Interior monitoring (with ATA only)	AR80.50-P-9831SX
10	Install new headliner (1).	Vehicles without code (Z07) Top protection	AR68.30-P-4300SX
		Vehicles with code (Z07) Top protection	AR68.30-P-4300SXS
