Remove/install transmission protection plate - AR61.40-P-1010SXS

MODEL 221.1 with CODE (Z07) Top protection

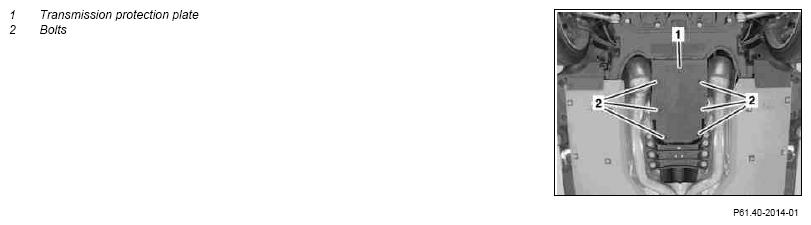

Fig 1: Identifying Transmission Protection Plate And Bolts

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the vehicle lift.	Align vehicle between the four columns of the vehicle lift and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with vehicle lift
2	Remove bolts (2)	Secure transmission protection plate (1) against falling down. See GOTIS for transmission jack http://gotis.aftersales.mercedes-benz.com	*BA61.40-P-1002-01A
3	Remove transmission protection plate (1)
4	Install in the reverse order

UNDERBODY PROTECTION

Number	Designation	Model 221 with code Z07/ Z07+Z19
BA61.40-P-1002-01A	Bolt, armor plate to transmission M6 Nm	8
