Install rear side longitudinal member - AR63.30-P-0865-03SX
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1092-02A | Adhesive kit, body, 2-component adhesive | A 009 989 36 71 |
| BR00.45-Z-1001-07A | Zinc dust paint suitable for spot welding | A 000 986 34 42 |
| BR00.45-Z-1012-13A | Blind rivet 6.5x12.5 | A 004 990 16 97 |
| BR00.45-Z-1001-13A | Blind rivet 6.4x14 | A 003 990 35 97 |

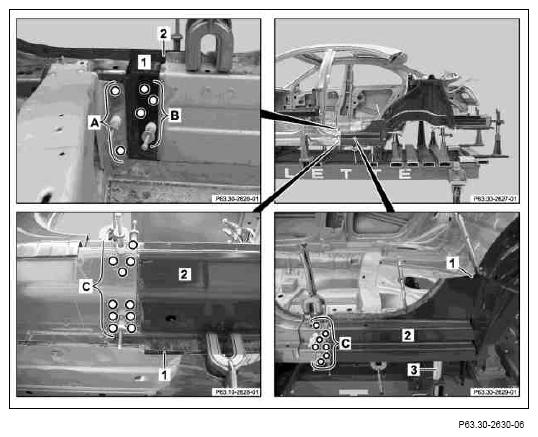

- Install inner rear side longitudinal member (1) and outer rear side longitudinal member (2), fit with mechanism mount (3) and fasten with
clamping pliers.
- Drill dia. 6.5 mm rivet holes in inner rear side longitudinal member (1) (areas A and B).
- Drill dia. 6.7 mm rivet holes in outer rear side longitudinal member (2) with
BTR Usibor dia. 6.7 mm drill (area C).
- Remove outer rear side longitudinal member (2).
- Deburr rivet holes on outer rear side longitudinal member (2) on both sides.
Courtesy of MERCEDES-BENZ USA

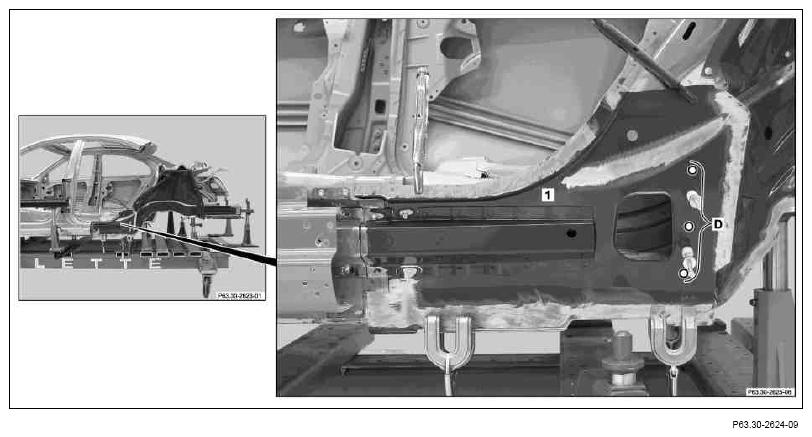

- Drill dia. 6.5 mm rivet holes in inner rear side longitudinal member (1) (area D).
- Remove inner rear side longitudinal member (1).
- Deburr rivet holes on inner rear side longitudinal member (1) on both sides.

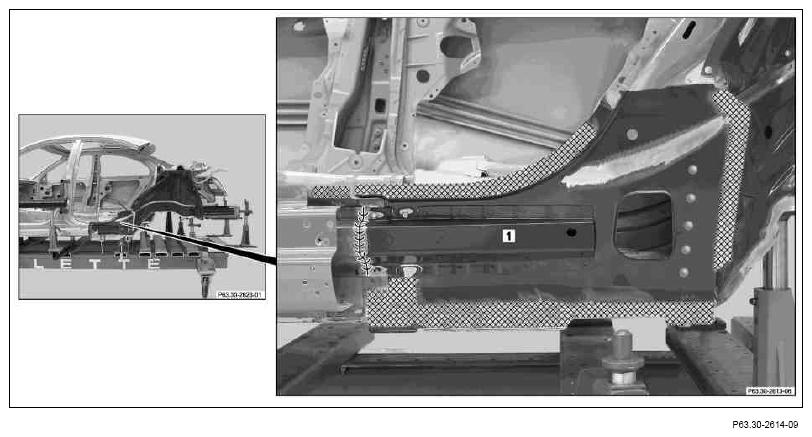

- Apply 2-component adhesive in cross-hatched areas.
Observe preliminary treatment of surfaces to be bonded.
Refer to the manufacturer's information for the curing and working times of the adhesive.
- Install inner rear side longitudinal member (1), fit and fasten with
clamping pliers and
manual temporary fastener.

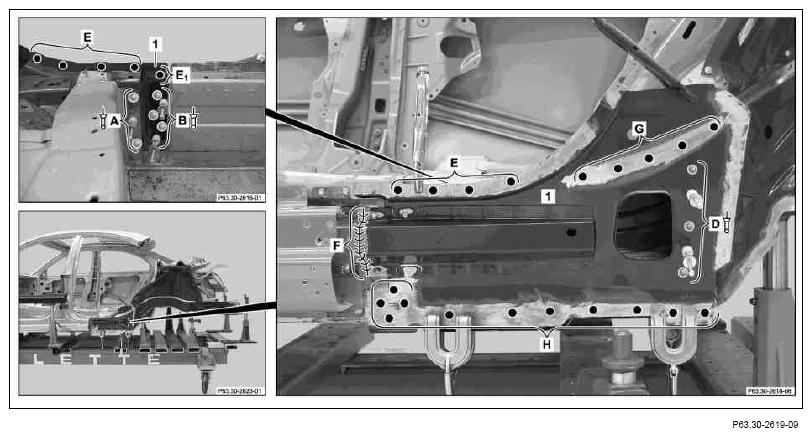

- Weld in inner rear side longitudinal member (1) with
(areas E, E1 , G and H).
- Rivet inner rear side longitudinal member (1) with Polygrip flat/round head rivet, 6.4 x 14 dia. (areas A, B and D).
- Weld in inner rear side longitudinal member (1) with
(p (area F).
Weld in intervals, allow to cool down in between; minimum heat distortion (area F).
- Clean welds with
round wire brush.
- Remove grinding and drill shavings with wet/dry vacuum cleaner.
- Coat welds with zinc dust paint (areas F and G).

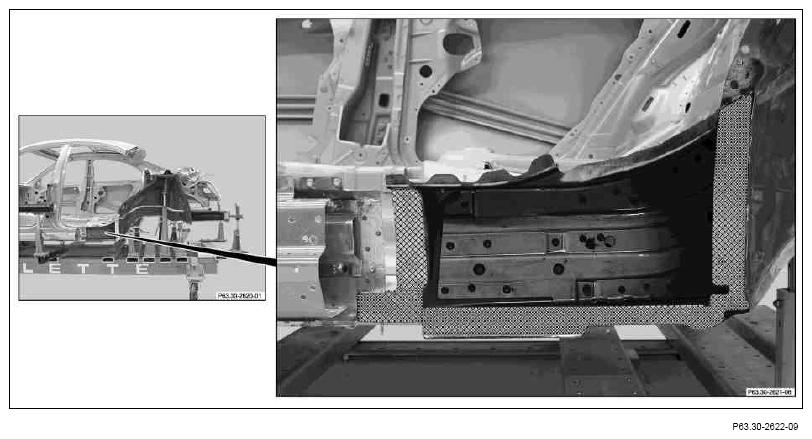

- Apply 2-component adhesive in cross-hatched areas.
Observe preliminary treatment of surfaces to be bonded.
Refer to the manufacturer's information for the curing and working times of the adhesive.
- Install outer rear side longitudinal member (2), fit and fasten with
clamping pliers and
manual temporary fastener

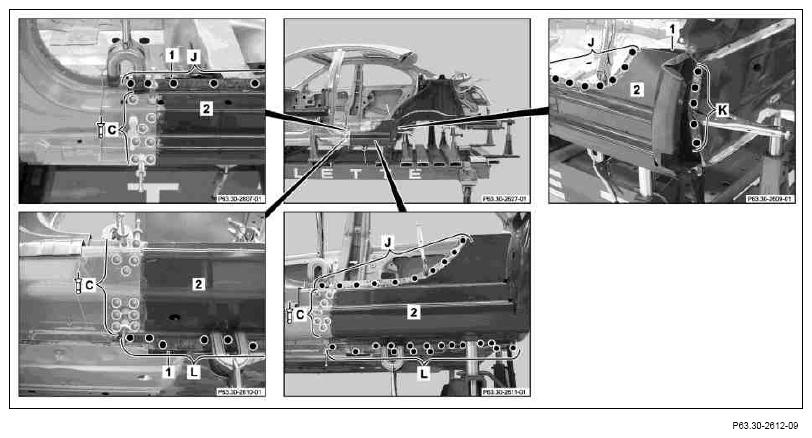

- Weld in outer rear side longitudinal member (2) with
(areas J, K and L).
In order to ensure the required minimum strength for the weld, position new resistance spot welds exactly in the position as the resistance spot weld made at the factory, because this area was glued previously (area L).
- Rivet outer rear side longitudinal member (2) with blind rivet, steel/steel, 6.5 x 12.5 (area C).
