Install A-pillar closing panel - AR63.20-P-1100-14SX

Fig 1: Identifying Welding Device (221 589 01 23 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1092-02A	Adhesive kit, body, 2-component adhesive	A 009 989 36 71
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

Apply 2-component adhesive material in shaded areas.
Observe pretreatment of bonding surfaces.

Refer to manufacturer specifications for adhesive curing and application times.

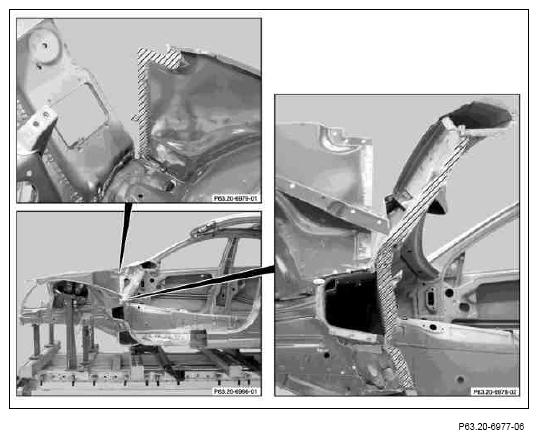

Fig 2: Identifying 2-Component Adhesive Material Application Area
Courtesy of MERCEDES-BENZ USA

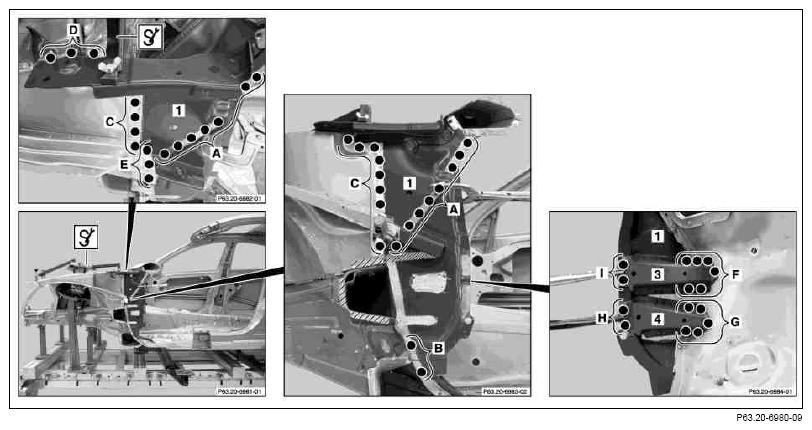

Fig 3: Identifying A-Pillar Closing Panel & Firewall Support Welding Areas
Courtesy of MERCEDES-BENZ USA
Install A-pillar closing panel (1), fit and fasten using welding device and clamping pliers.
A-pillar closing panel (1) (areas A, B, C, D and E).
Install upper firewall support (3) and lower firewall support (4), fit and fasten using clamping pliers.
Upper firewall support (3) and lower firewall support (4) (areas F, G, H and I).
Apply 2-component adhesive material in shaded areas.
Observe pretreatment of bonding surfaces.

Refer to manufacturer specifications for adhesive curing and application times.
Install A-pillar support (2), fit and fasten using clamping pliers.
A-pillar support (2) with A-pillar closing panel (1), upper firewall support (3) and lower firewall support (4) with (areas J, K, L, M and N).

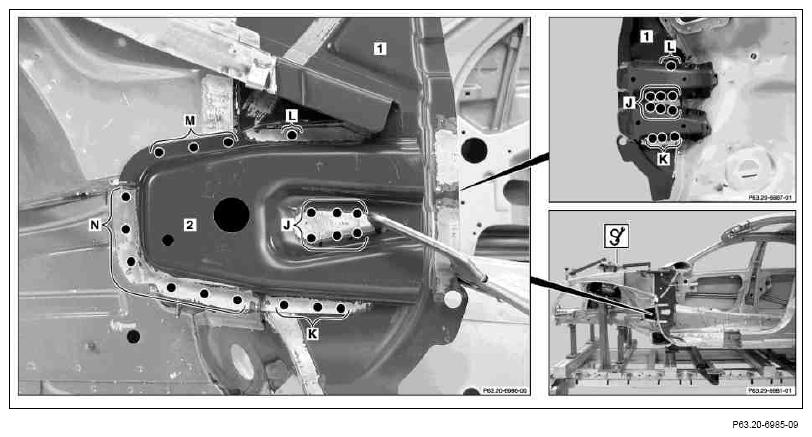

Fig 4: Identifying Spot Welding Areas
Courtesy of MERCEDES-BENZ USA
Clean welds using round wire brush.
Remove sanding dust using wet/dry vacuum cleaner.
Using zinc dust paint, coat insides of spot weld joints that were not additionally bonded.
