Remove/install lines at automatic transmission - AR27.10-P-0502-01SX
TRANSMISSION 722.9 in MODEL 221.0 /1, 216.3 without 4MATIC
TRANSMISSION 722.6 in MODEL 216.3, 221.1
TRANSMISSION OIL COOLING
| Number | Designation | Transmission 722.6 in model 204, 216, 221 | ||
|---|---|---|---|---|
| BA27.55-P-1002-01B | Banjo bolt or union nut, oil cooler line to torque converter and transmission housing | Stage 1 | Nm | 5 |
| Stage 2 | ∠° | 90 | ||
| Hexalobular bolt | Nm | 12 | ||
| BA27.55-P-1009-01B | Bolt, oil cooling line double clamp to engine oil pan | Nm | 10 | |
| BA27.55-P-1010-01B | Bolt, oil cooling line double clamp to bracket | Nm | 10 | |
TRANSMISSION OIL COOLING SYSTEM
| Number | Designation | Transmission 722.9 | |||
|---|---|---|---|---|---|
| BA27.55-P-1002-01D | Bolt, transmission oil line to transmission housing | Banjo bolt | Stage 1 | Nm | 5 |
| Stage 2 | ∠° | 90 | |||
| Hexalobular bolt | Nm | 12 | |||
| BA27.55-P-1005-01D | Bolt, oil cooling line double clamp to bracket | Nm | 8 | ||
| BA27.55-P-1006-01D | Bolt, oil cooling line double clamp to engine oil pan | Nm | 8 | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Cleaner from package |

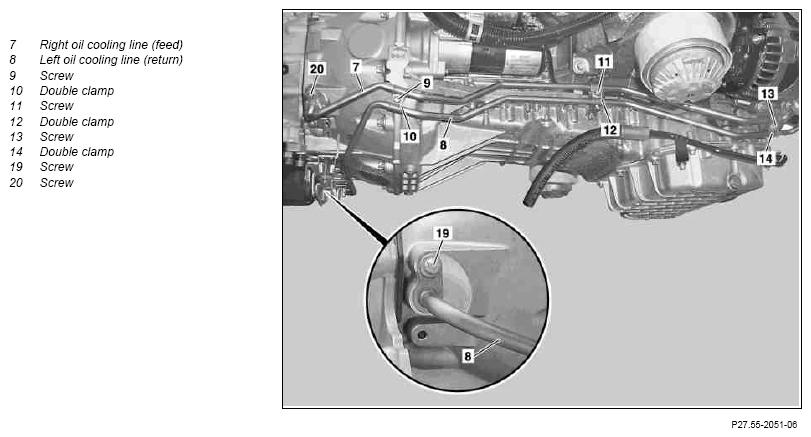

Shown on transmission 722.906

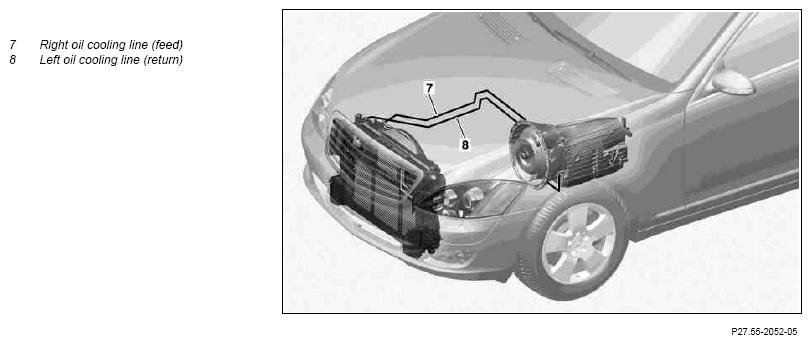

Shown on transmission 722.906
- Thoroughly clean area around separation point at hydraulic system.
Even the smallest dirt particles in the hydraulic components can lead to malfunctions and a total failure of the transmission.
- Remove bolts (9, 11, 13).
- Remove double clamps (10, 12, 14) and retaining clamps.
- Remove bolt (20).
- Pull right oil cooling line (7) out of transmission and seal line connection and oil hole in transmission using
stop plugs.
Installation: Install new gasket
- Remove bolt (19).
- Pull left oil cooling line (8) out of transmission and seal line connection and oil hole in transmission using
- Install in the reverse order.
