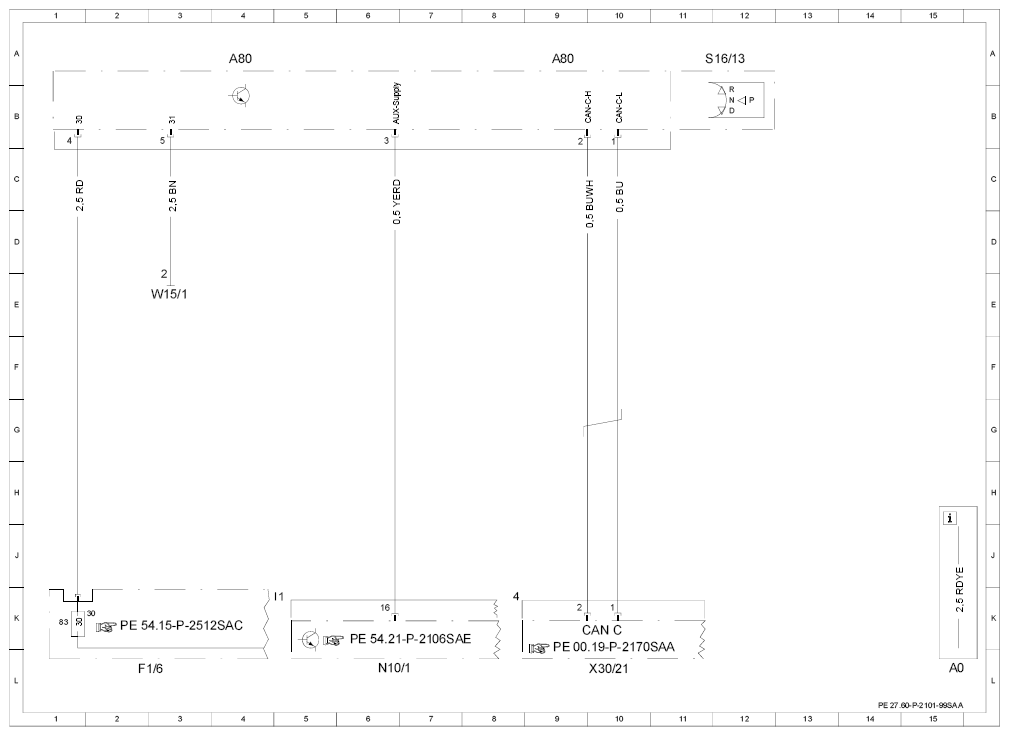

Wiring diagram for intelligent servo module (ISM) control unit - PE27.60-P-2101-99SAA
TRANSMISSION 722.6 in MODEL 221.1 with ENGINE 275 control unit A80
TRANSMISSION 722.9 in MODEL 221.0 /1 with ENGINE 629, 642, 651, 156, 157, 272, 273, 276, 278 control unit A80
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 15L |
| A80 | Intelligent servo module for DIRECT SELECT | 4A |
| A80 | Intelligent servo module for DIRECT SELECT | 11A |
| F1/6 | Right instrument panel fuse box | 2L |
| F1/6f83 | Fuse 83 | 1K |
| N10/1 | Front SAM control module with fuse and relay module | 6L |
| W15/1 | Ground (right footwell) | 3E |
| X30/21 | Drive train CAN voltage distributor connector | 10L |
