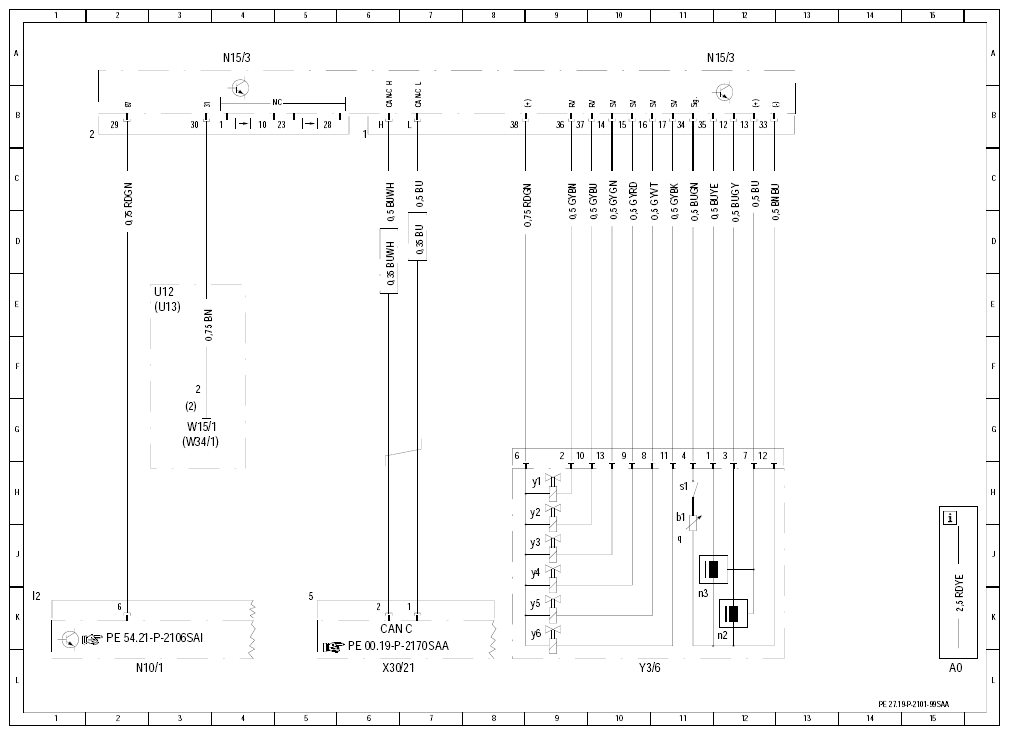

Wiring diagram for electronic transmission control (ETC) control unit - PE27.19-P-2101-99SAA
TRANSMISSION 722.6 in MODEL 221.1 with ENGINE 275 Control unit N15/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 15L |
| N10/1 | Front SAM control module with fuse and relay module | 2L |
| N15/3 | ETC [EGS] control module | 4A |
| N15/3 | ETC [EGS] control module | 11A |
| U12 | Valid for left-hand steering | 3E |
| U13 | Valid for right-hand steering | 3E |
| W15/1 | Ground (right footwell) | 3G |
| W34/1 | Ground (electronics - left footwell) | 3G |
| X30/21 | Drive train CAN voltage distributor connector | 6L |
| Y3/6 | Electric control unit | 10L |
| Y3/6b1 | Transmission oil temperature sensor | 11J |
| Y3/6n2 | RPM sensor 2 | 11K |
| Y3/6n3 | RPM sensor 3 | 11K |
| Y3/6s1 | Starter lockout contact | 11H |
| Y3/6y1 | Modulating pressure control solenoid valve | 8H |
| Y3/6y2 | Shift pressure control solenoid valve | 8H |
| Y3/6y3 | 1-2 and 4-5 shift solenoid valve | 8J |
| Y3/6y4 | 3-4 shift solenoid valve | 8J |
| Y3/6y5 | 2-3 shift solenoid valve | 8K |
| Y3/6y6 | Torque converter lockup PWM solenoid valve | 8K |
