Preparations for distance and comparison measurements - AR40.30-P-0401SX

MODEL 216, 221.0 /1

Shown on model 221

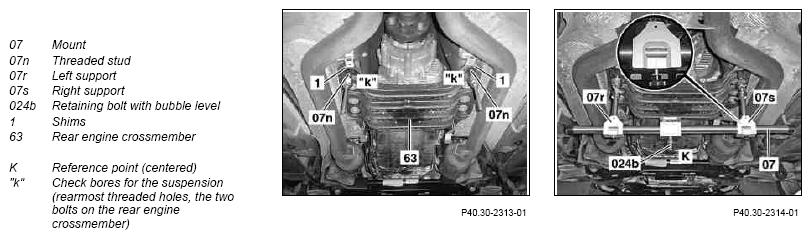

Fig 1: Identifying Mount, Threaded Stud, Left And Right Supports, Retaining Bolt With Bubble Level Shims And Rear Engine Crossmember

Courtesy of MERCEDES-BENZ USA

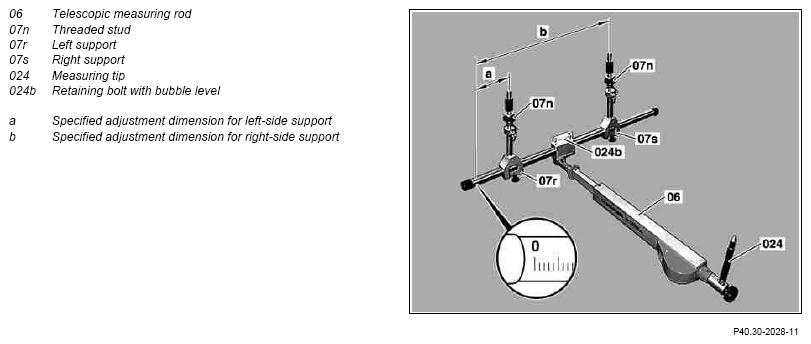

Fig 2: Identifying Adjustment Dimensions Of Left And Right Side Supports

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

12.3.08	Value changed: Bolt for rear engine crossmember to body		*BA22.10-P-1007-03C
29.5.08	Value changed: Bolt for rear engine crossmember to body		*BA22.10-P-1007-03D

	Removing
1	Align the vehicle	Align the vehicle horizontally in the longitudinal direction by loading with weights as appropriate. Measure vehicle inclination across the door sills, e.g. using a spirit level
2	Detach lower engine compartment paneling	Model 216, model 221 except code Z07 top protection	AR61.20-P-1105SX
		Model 221.1 with code Z07 Top protection	AR61.20-P-1105SXS
3	Remove the two bolts in the rearmost threaded holes in the rear engine crossmember (63).
4	Turn in threaded bolts (07n) of suspension (07) with shims (1)	Use washers (1), to ensure that the threaded stud (07n) fits correctly into the rear engine crossmember (63).
			Fig 3
5	Insert and adjust hanger (07)		AR40.30-P-0401-01SX
			Fig 3
6	Insert telescopic measuring rod (06) with connecting parts onto retaining bolt using bubble level (024b)	Use relevant measuring bolt and measuring tip (024) for the corresponding distance or comparison measurement.
			Fig 7
			Fig 4
			Fig 5
			Fig 6
	Measure
7	Carry out distance and comparison measurements on front and rear axles		AR40.30-P-0402SX
	Install
8	Detach cradle (07) and threaded bolts (07n)		Fig 3
9	Screw in bolts of rear engine crossmember (63)	Model 216	*BA22.10-P-1007-03C
		Model 221	*BA22.10-P-1007-03D
10	Install lower engine compartment paneling	Model 216, model 221 except code Z07 top protection	AR61.20-P-1105SX
		Model 221.1 with code Z07 Top protection	AR61.20-P-1105SXS

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 221.02/05/07/095/12/15/17/195	Model 221.08/094/18/194
BA22.10-P-1007-03D	Bolt, rear engine crossmember to body	Nm	45	45

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 221.003/103
BA22.10-P-1007-03D	Bolt, rear engine crossmember to body	Nm	45

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 216.371/373/374 /376/377/379
BA22.10-P-1007-03C	Bolt, rear engine crossmember to body	Nm	45

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 216.386/394
BA22.10-P-1007-03C	Bolt, rear engine crossmember to body	Nm	45

Fig 3: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Set Of Measurement Fixtures (168 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Connecting Pieces (124 589 08 63 00)

Courtesy of MERCEDES-BENZ USA
