Check caster, match with value in table - AR40.20-P-0322-03SXS
MODEL 221 with CODE (Z07) Top protection
CHECK AND ADJUSTMENT VALUES FOR CASTER
| Number | Designation | Model 221 with (code Z07), with (code Z07+Z19) | |
|---|---|---|---|
| BE40.20-P-1001-20D | Permissible difference in caster between right and left sides of the vehicle | ∠° | 30' |
| BE40.20-P-1002-20D | Caster | See table | AR40.20-P-0322-03SXS |
Tolerance for caster ±30'
The level values are displayed by the electronic inclinometer in decimal degrees [°].
- Obtain the caster value from the table taking into account the front axle (FA) level values and rear axle (RA) level values measured previously.

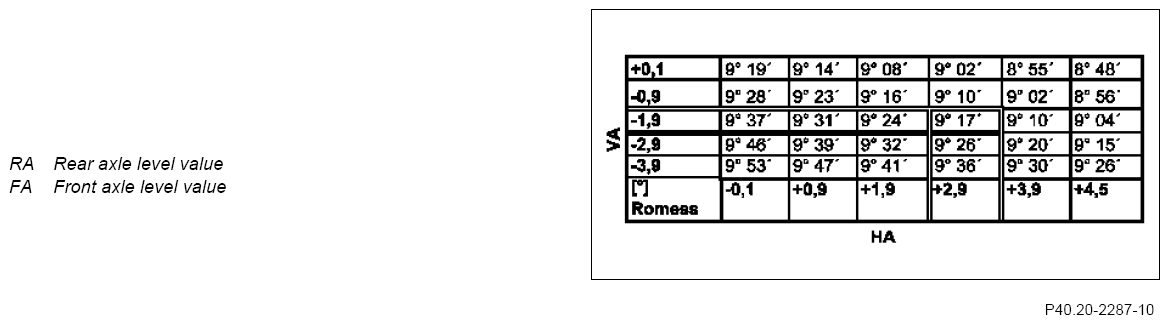

Example, see Table:
Front axle level value (FA): - 1.9°
Rear axle level value (RA): +2.9°
= Caster value 9° 17' (± 30')
