Check caster and assign to tabular value - AR40.20-P-0322-03SW
MODEL 221.08 /18
MODEL 221.09 /19 vehicles with 4MATIC
CHECK AND ADJUSTMENT VALUES FOR CASTER
| Number | Designation | Model 221 4MATIC | |
|---|---|---|---|
| BE40.20-P-1001-20D | Permissible difference in caster between right and left sides of the vehicle | ∠° | 30' |
| BE40.20-P-1002-20D | Caster | See table | AR40.20-P-0322-03SW |
Tolerance for caster ±30'
The level values are displayed by the electronic inclinometer in decimal degrees [°].
- Obtain the caster value from the table taking into account the front axle (FA) level values and rear axle (RA) level values measured previously.

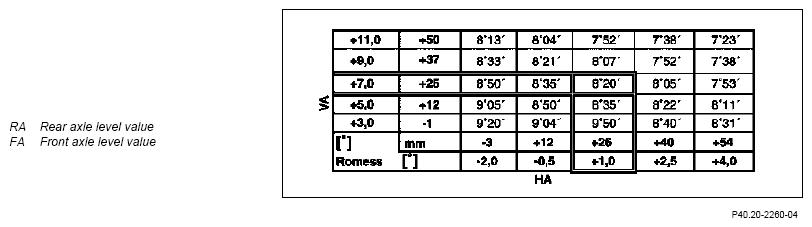

Example, see Table:
Front axle level value (FA): +7.0°
Rear axle level value (RA): +1.0°
= Caster value 8° 20' (30')
