Pressing out and attaching follower joint at steering knuckle - AR33.20-P-0500-01SX

MODIFICATION NOTES

12.10.09

Value changed: Self-locking nut for upper ball joint on upper transverse control arm to steering knuckle, 1st stage

Model 221 with code Z07/Z07+Z19

*BA33.20-P-1007-01M

WHEEL LOCATION, HUB

Number	Designation			Model 216 without 4MATIC	Model 216 with 4MATIC
BA33.20-P-1007-01M	Self-locking nut, upper wishbone follower joint to steering knuckle	Stage 1	Nm	20	20
BA33.20-P-1007-01M		Stage 2	∠°	90	90

WHEEL LOCATION, HUB

Number	Designation			Model 221.00/02/05/07/09/10/12/15/17/19 without 4MATIC without code Z07/Z07+Z19	Model 221.09/19 without 4MATIC without code Z07
BA33.20-P-1007-01M	Self-locking nut, upper wishbone follower joint to steering knuckle	Stage 1	Nm	20	20
BA33.20-P-1007-01M		Stage 2	∠°	90	90

WHEEL LOCATION, HUB

Number	Designation			Model 221.08/09/18/19 with 4MATIC without code Z07	Model 221 with code Z07/Z07+Z19
BA33.20-P-1007-01M	Self-locking nut, upper wishbone follower joint to steering knuckle	Stage 1	Nm	20	50
BA33.20-P-1007-01M		Stage 2	∠°	90	60

Fig 1: Identifying Puller (140 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Thrust Washer M 10x1.5 (210 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Puller (221 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Press (163 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Thrust Piece (129 589 10 63 00)

Courtesy of MERCEDES-BENZ USA

Puller 221 589 00 33 00, thrust piece 129 589 10 63 00 and press 163 589 03 43 00 required for vehicles with code (Z07) Top protection.

Puller 140 589 00 33 00 and thrust piece 210 589 04 63 00 are required for vehicles without top protection.

Pushing off

Unscrew self-locking nut from follower joint (8).
Screw the thrust washer (043a) onto the support joint (8).
Press off the follower joint (8) with the puller (043).
Do not damage rubber boot and stainless steel ring, as otherwise the upper transverse control arm has to be replaced.

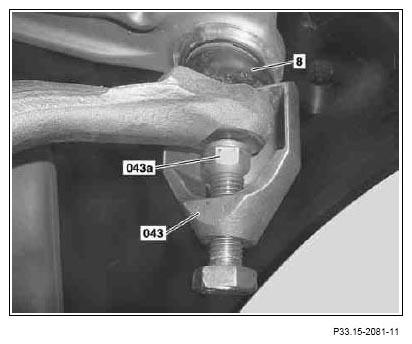

Fig 6: Pushing Off Follower Joint
Courtesy of MERCEDES-BENZ USA

Shown on vehicle without top protection
Remove puller (043) and thrust piece (043a).
Mount
Clean tapered connection.
There must be no grease or oil on the taper and thread in order to guarantee a faultless connection.
Replace self-locking nut and tighten.
