Press the radius rod out of the stub axle assembly - AR33.15-P-0160-01SX
MODIFICATION NOTES
| 14.6.06 | Special tool for pressing torque strut out of steering knuckle changed |
WHEEL LOCATION, HUB
| Number | Designation | Model 216 without 4MATIC | Model 216 with 4MATIC | ||
|---|---|---|---|---|---|
| BA33.20-P-1004-01M | Self-locking nut, radius rod to steering knuckle | Stage 1 | Nm | 40 | 50 |
| Stage 2 | ∠° | 150 | 90 | ||
WHEEL LOCATION, HUB
| Number | Designation | Model 221.00/02/05/07/09/10/12/15/17/19 without 4MATIC without code Z07/Z07+Z19 | ||
|---|---|---|---|---|
| BA33.20-P-1004-01M | Self-locking nut, radius rod to steering knuckle | Stage 1 | Nm | 40 |
| Stage 2 | ∠° | 150 | ||
WHEEL LOCATION, HUB
| Number | Designation | Model 221.08/09/18/19 with 4MATIC without code Z07 | Model 221 with code Z07/Z07+Z19 | ||
|---|---|---|---|---|---|
| BA33.20-P-1004-01M | Self-locking nut, radius rod to steering knuckle | Stage 1 | Nm | 50 | 90 |
| Stage 2 | ∠° | 90 | 90 | ||
Puller 221 589 02 33 00 is required for all models.
Puller fork 221 589 03 33 00 only required for model 221 with maximum protection, code Z07
- Unscrew self-locking nut from radius rod coupling.
Screw thrust washer (044a) onto the radius rod coupling.

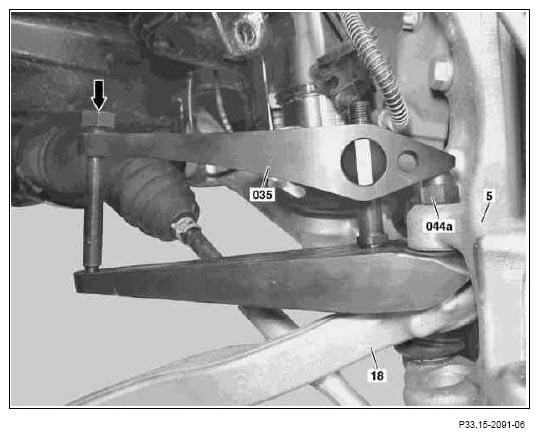

- Press torque strut (18) out of steering knuckle (5) by turning spindle (arrow).
Installation:
Replace self-locking nut.
When pressing out, do not damage the rubber boot of the torque strut joint, otherwise the torque strut must be replaced.
