| A0 |
Explanation of color codes |
15 L |

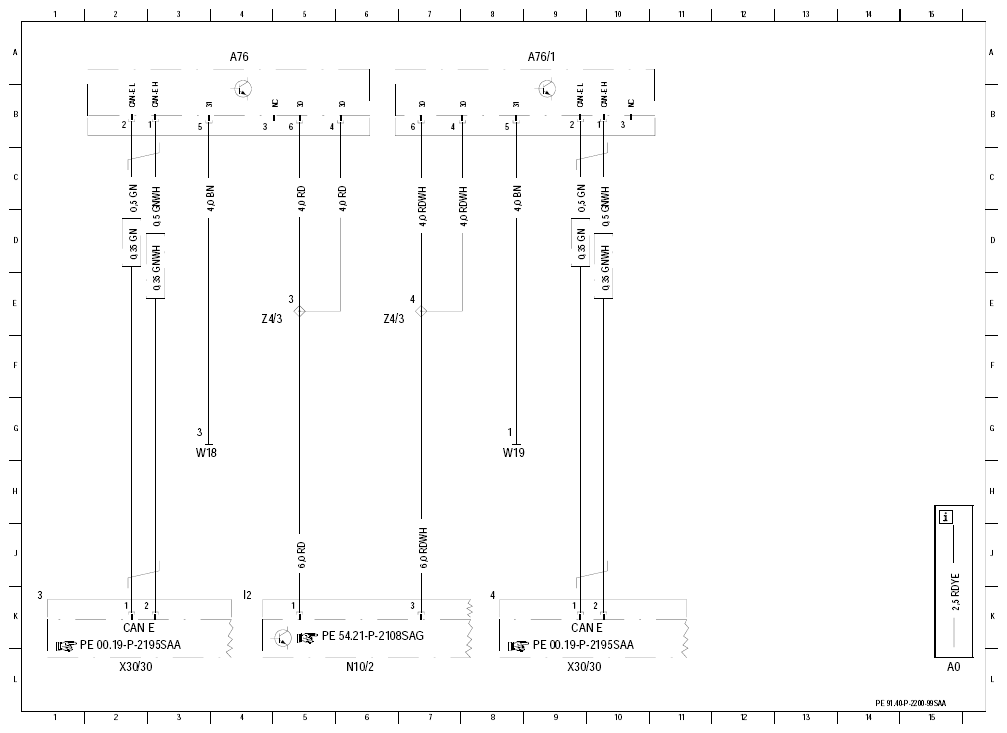

| A76 |
Left front reversible emergency tensioning retractor |
4 A |
| A76/1 |
Right front reversible emergency tensioning retractor |
9 A |
| N10/2 |
Rear SAM control module with fuse and relay module |
6 L |
| W18 |
Ground (left front seat crossmember) |
3 H |
| W19 |
Ground (right front seat crossmember) |
8 H |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
2 L |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
9 L |
| Z4/3 |
Circuit 30 connector sleeve |
4 E |
| Z4/3 |
Circuit 30 connector sleeve |
6 E |
