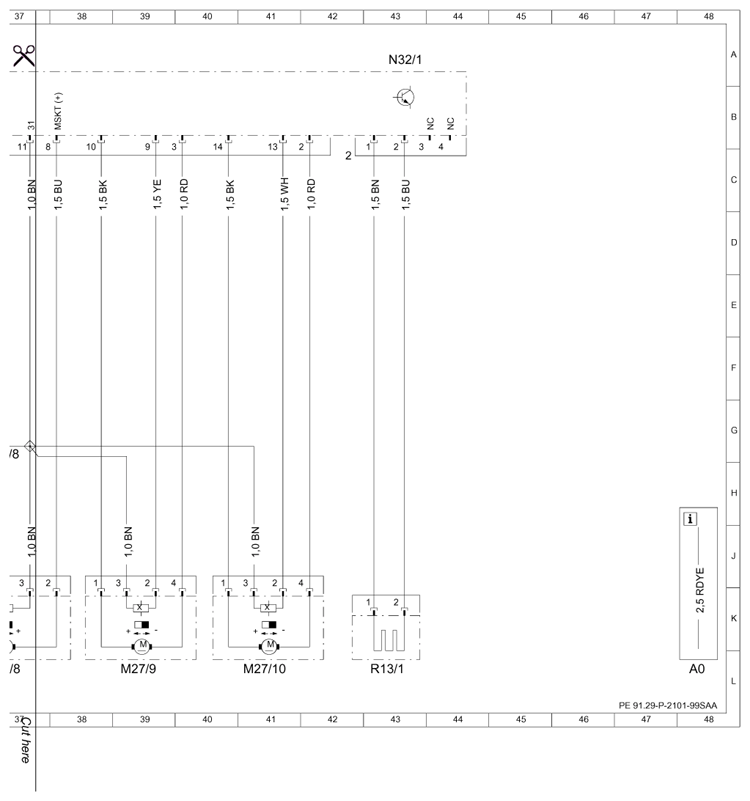

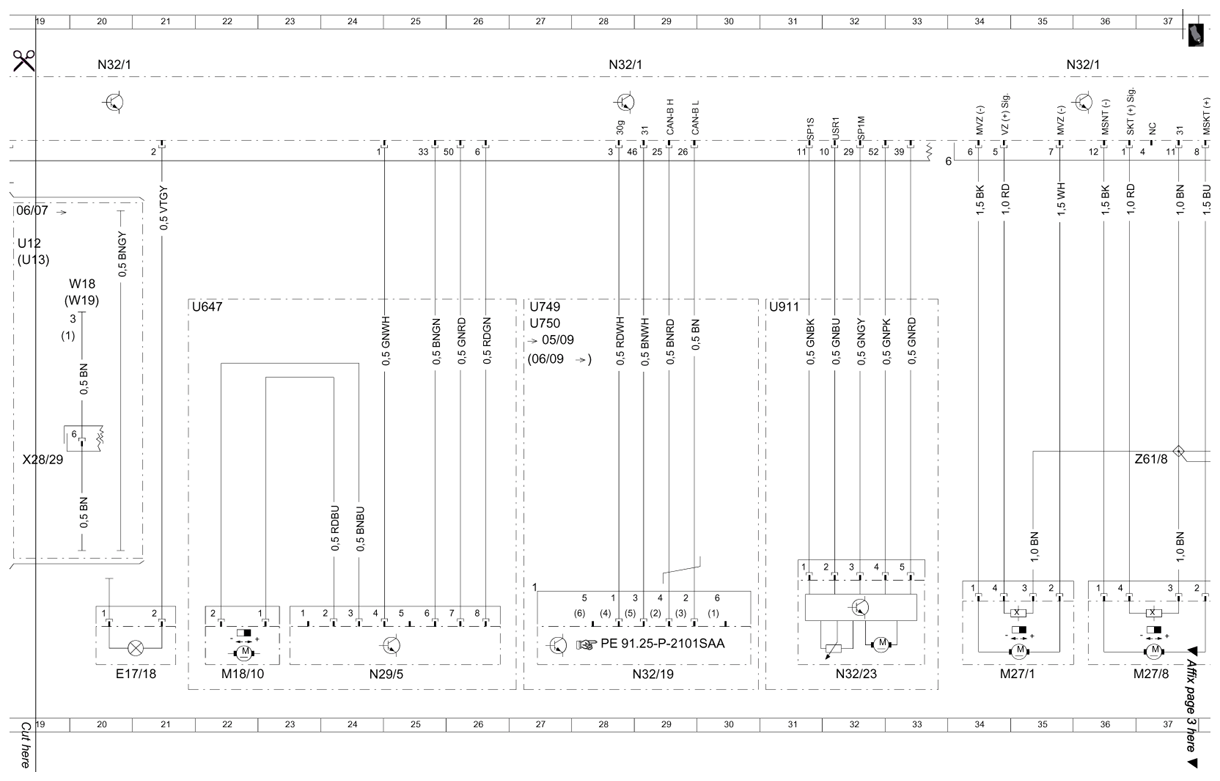

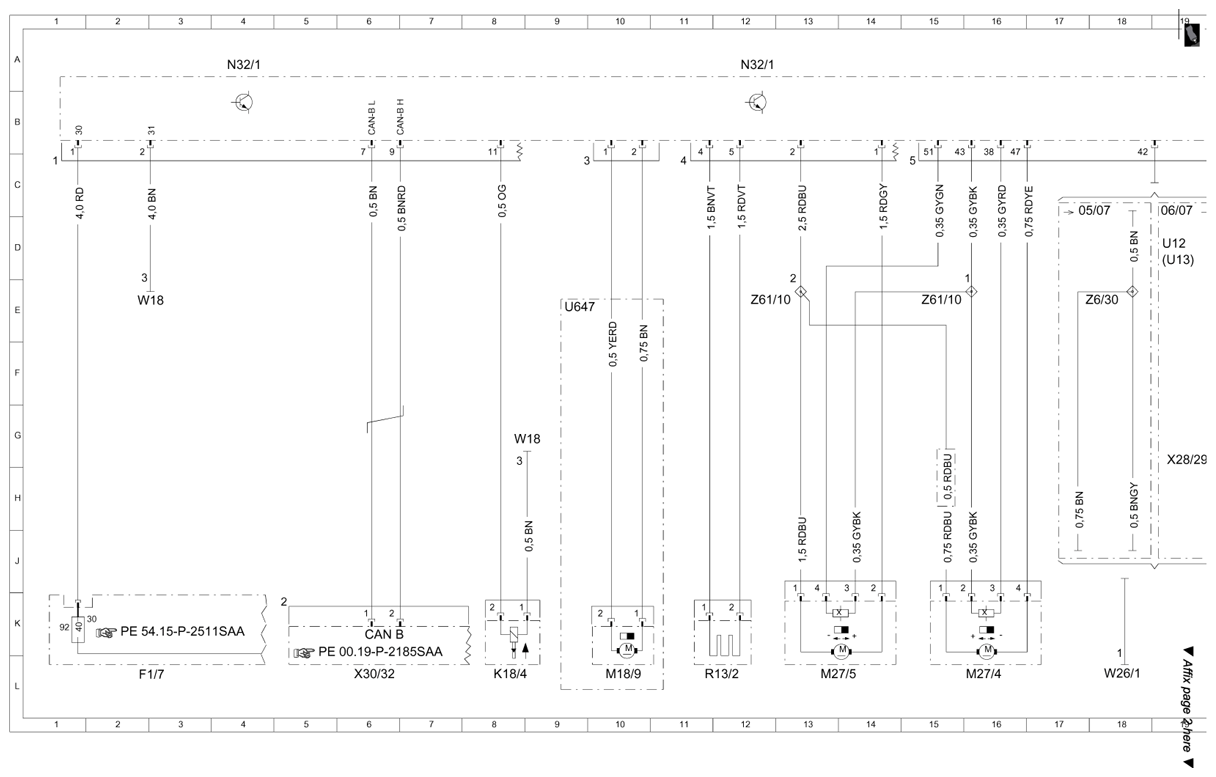

| A0 |
Explanation of color codes |
48 L |
| E17/18 |
Left rear footwell lamp |
18 L |
| F1/7 |
Left instrument panel fuse box |
2 L |
| F1/7f92 |
Fuse 92 |
1 K |
| K18/4 |
Left front seat belt comfort solenoid |
8 L |
| M18/10 |
Left front seat backrest ventilation motor group |
20 L |
| M27/1 |
Left front seat fore/aft adjustment motor |
31 L |
| M27/10 |
Left front seat height adjustment motor |
38 L |
| M27/4 |
Left front head restraint motor |
13 L |
| M27/5 |
Left front backrest angle adjustment motor |
11 L |
| M27/8 |
Left front seat cushion fore/aft motor |
33 L |
| M27/9 |
Left front seat cushion inclination motor |
36 L |
| N29/5 |
Left front seat ventilation blower regulator |
22 L |
| N32/1 |
Left front seat control module |
4 A |
| N32/1 |
Left front seat control module |
12 A |
| N32/1 |
Left front seat control module |
20 A |
| N32/1 |
Left front seat control module |
28 A |
| N32/1 |
Left front seat control module |
36 A |
| N32/19 |
Left front dynamic seat control module |
26 L |
| N32/23 |
Driver lumbar support regulator control unit |
29 L |
| R13/1 |
Left front seat heated cushion |
40 L |
| R13/2 |
Left front backrest heated cushion |
9 L |
| U12 |
Valid for left-hand steering |
16 D |
| U13 |
Valid for right-hand steering |
16 D |
| U647 |
Valid for seat ventilation |
19 E |
| U750 |
Valid for dynamic seat (DS [FDS]) |
25 E |
| U911 |
Valid for lumbar support |
28 E |
| W18 |
Ground (left front seat crossmember) |
2 E |
| W18 |
Ground (left front seat crossmember) |
8 G |
| W18 |
Ground (left front seat crossmember) |
17 E |
| W19 |
Ground (right front seat crossmember) |
17 E |
| W26/1 |
Ground (seat, left front sidebag) |
15 L |
| X28/29 |
Driver-side FFS [RBA]/seat airbag separation point |
17 H |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
6 L |
| Z6/30 |
Circuit 31 connector sleeve |
15 E |
| Z61/10 |
Driver seat backrest/head restraint motor connector sleeve |
10 E |
| Z61/10 |
Driver seat backrest/head restraint motor connector sleeve |
13 |
| Z61/8 |
Wiring harness connector sleeve for seat, terminal 31 |
33 H |
