Remove/install side air vent - AR83.10-P-4740SX
MODEL 221.0/ 1

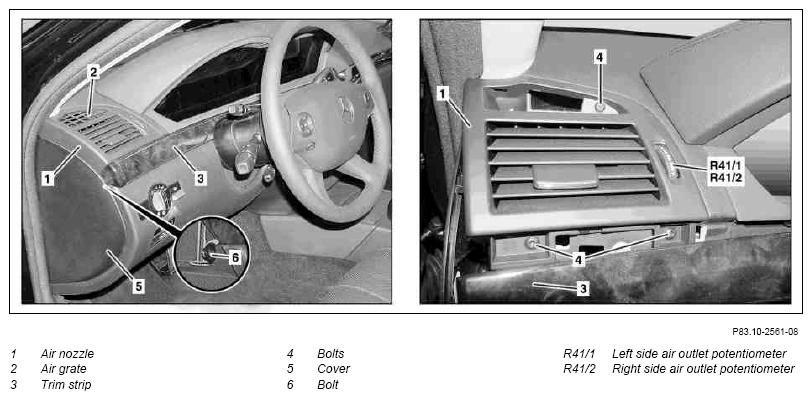

Fig 1: Identifying Left/Right Side Air Outlet Potentiometer, Air Nozzle, Air Grate, Trim Strip And Bolts
MODIFICATION NOTES
| 14.12.05 | Modified trim strip fastening | Operation steps 3, 4 |
| Remove/install | |||
|---|---|---|---|
| 1.1 | Move steering column down and to the rear | When removing left air nozzle (1). | |
| 2 | Unclip air grille (2) at top in air outlet (1) | Fig 3 | |
| 3 | Unclip covering (5) | Fig 2 | |
| 4 | Unscrew bolt (6) | ||
| 5 | Unclip trim strip (3) from instrument panel working from the outside towards the center | Fig 2 | |
| 6 | Cover trim strip (3) using a clean rag, push downwards and unscrew bolts (4) | Rechargeable drill / screwdriver | *WH58.30-Z-1007-20A |
| 7 | Remove air outlet (1) from instrument panel and detach electrical connector of left side air outlet potentiometer (R41/1) or right side air outlet potentiometer (R41/2) | ||
| 8 | Install in the reverse order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1007-20A | Cordless drill/driver |
