Disconnect AC housing - AR83.30-P-5200-02SX

MODEL 216.3, 221.0 /1

  1. Remove sound deadening mat (1) from AC housing.
  2. Detach electrical connectors (2, 7) and expose corresponding electrical wiring harnesses.
  3. Unclip retaining clamps (3) on AC housing.
  4. Unscrew screw (5).
  5. Remove combination filter housing (6) from heat exchanger/evaporator housing (4).

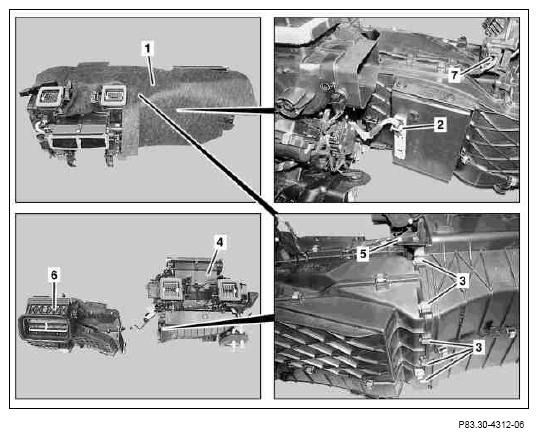

Fig 1: Identifying Sound Deadening Mat, Electrical Connectors, Retaining Clamps, Screws And Heat Exchanger/Evaporator Housing
G07591074Courtesy of MERCEDES-BENZ USA
