| A0 |
Explanation of color codes |
40 L |

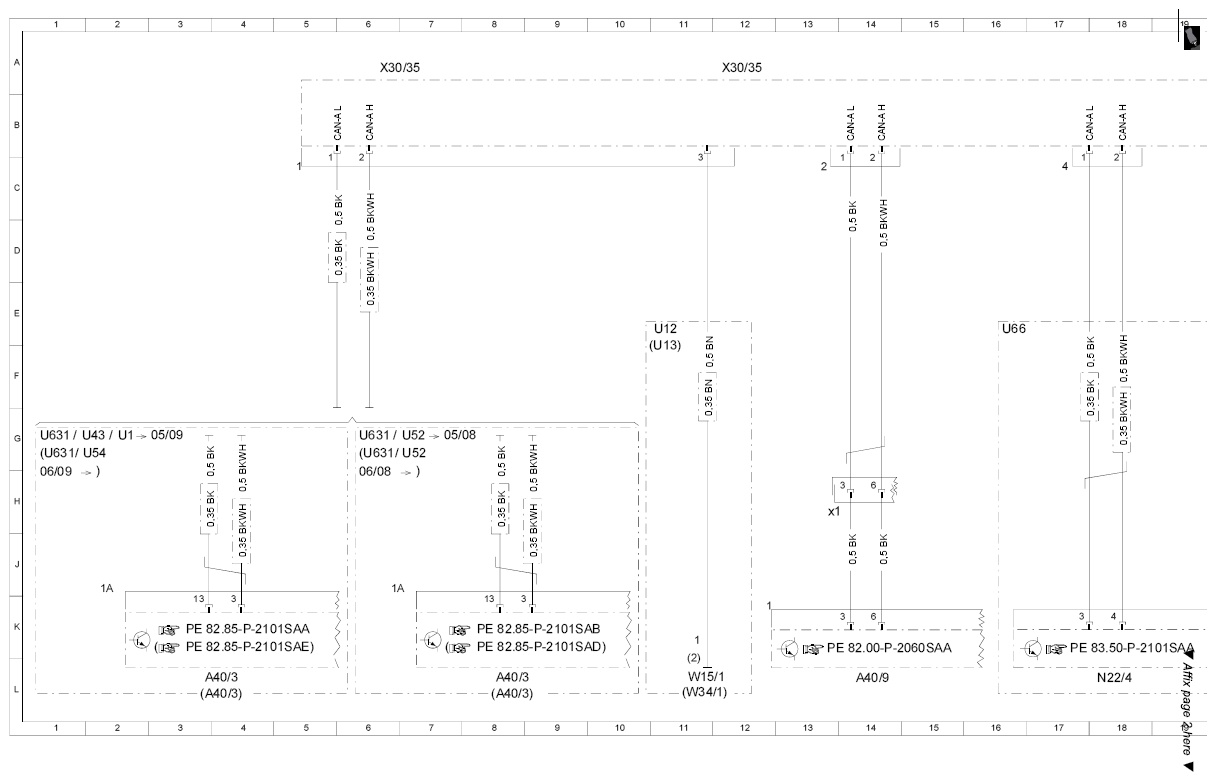

| A40/3 |
COMAND control unit |
3 L |

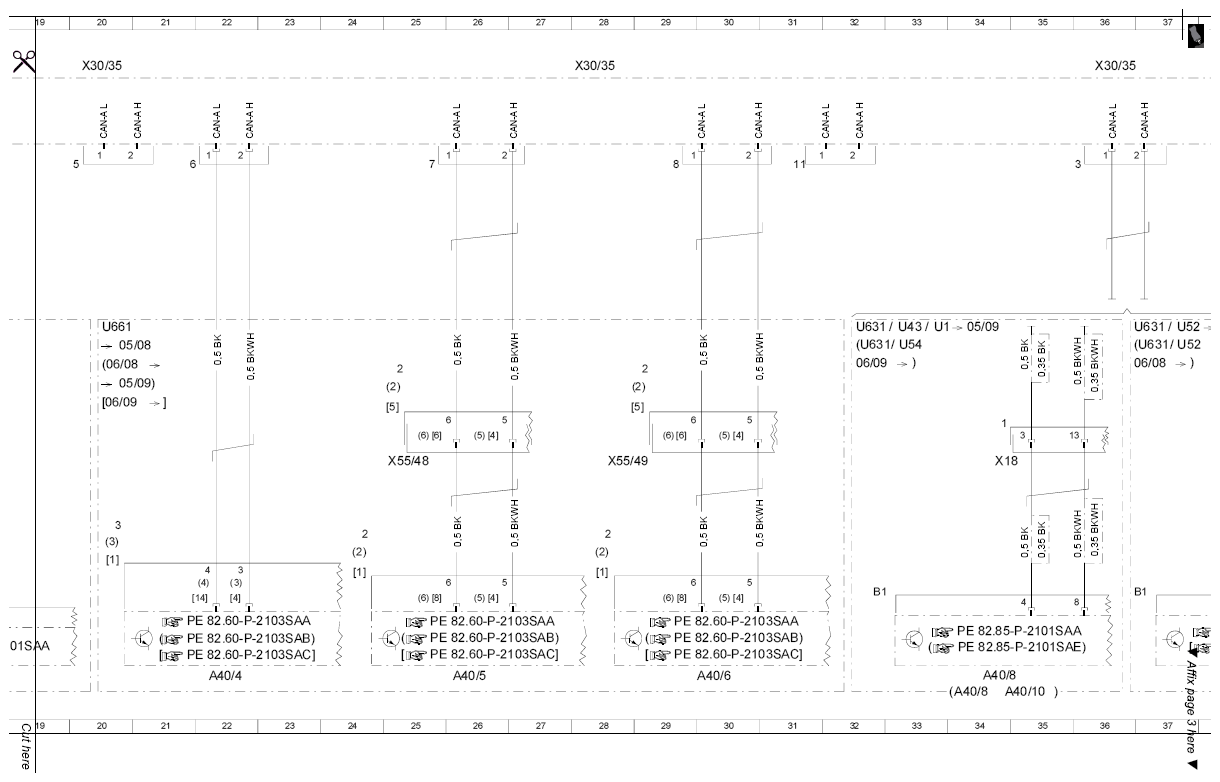

| A40/4 |
DVD player |
16 L |
| A40/5 |
Left rear display |
20 L |
| A40/6 |
Right rear display |
24 L |

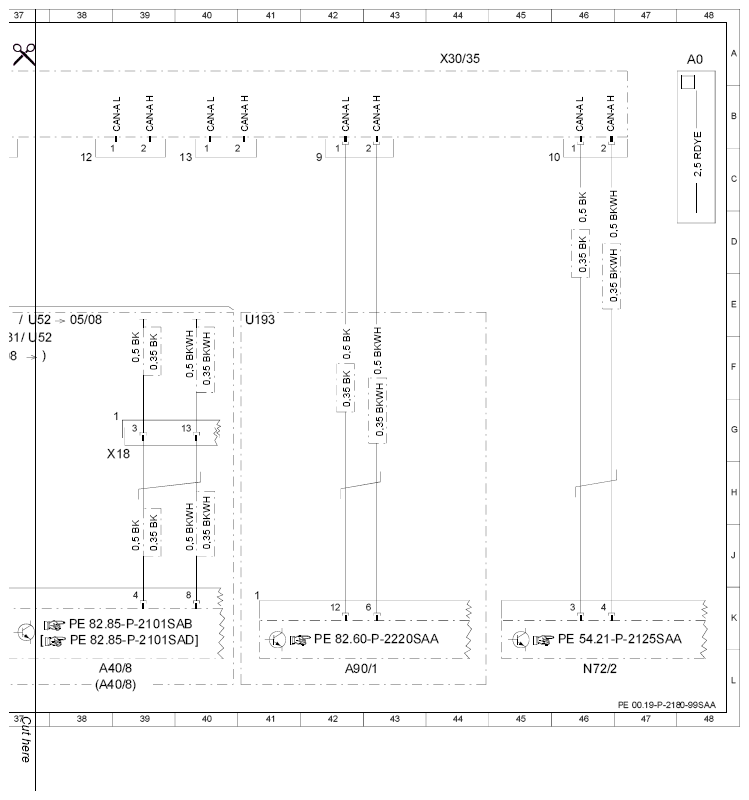

| A40/8 |
COMAND display |
28 L |
| A40/9 |
Front central operating unit |
8 L |
| A40/9x1 |
Front central operating unit connector |
8 H |
| A90/1 |
TV combination tuner (analog/digital) |
32 L |
| N22/4 |
Rear AC control module |
12 L |
| N72/2 |
RCP [HBF] control module |
36 L |
| U1 |
Valid for {{USA}} |
1 F |
| U1 |
Valid for {{USA}} |
27 F |
| U12 |
Valid for left-hand steering |
5 E |
| U13 |
Valid for right-hand steering |
5 F |
| U193 |
Valid for TV and Video |
30 E |
| U43 |
Valid for ECE |
1 E |
| U43 |
Valid for ECE |
27 E |
| U52 |
Valid for {{Japan}} |
1 F |
| U52 |
Valid for {{Japan}} |
27 F |
| U631 |
Valid for version with COMAND |
1 E |
| U631 |
Valid for version with COMAND |
1 F |
| U631 |
Valid for version with COMAND |
1 F |
| U631 |
Valid for version with COMAND |
26 E |
| U631 |
Valid for version with COMAND |
26 F |
| U631 |
Valid for version with COMAND |
26 F |
| U66 |
Valid for rear AC |
11 E |
| U661 |
Valid for TV and video in rear |
15 E |
| W15/1 |
Ground (right footwell) |
6 L |
| W34/1 |
Ground (electronics - left footwell) |
6 L |
| X18 |
Cockpit wiring harness and FFS [RBA] connector |
27 H |
| X30/35 |
Telematics CAN voltage distributor connector |
4 A |
| X30/35 |
Telematics CAN voltage distributor connector |
12 A |
| X30/35 |
Telematics CAN voltage distributor connector |
20 A |
| X30/35 |
Telematics CAN voltage distributor connector |
28 A |
| X30/35 |
Telematics CAN voltage distributor connector |
36 A |
| X55/48 |
Left rear display seat/FFS [RBA] separation point |
19 H |
| X55/49 |
Right rear display seat/FFS [RBA] separation point |
23 H |
