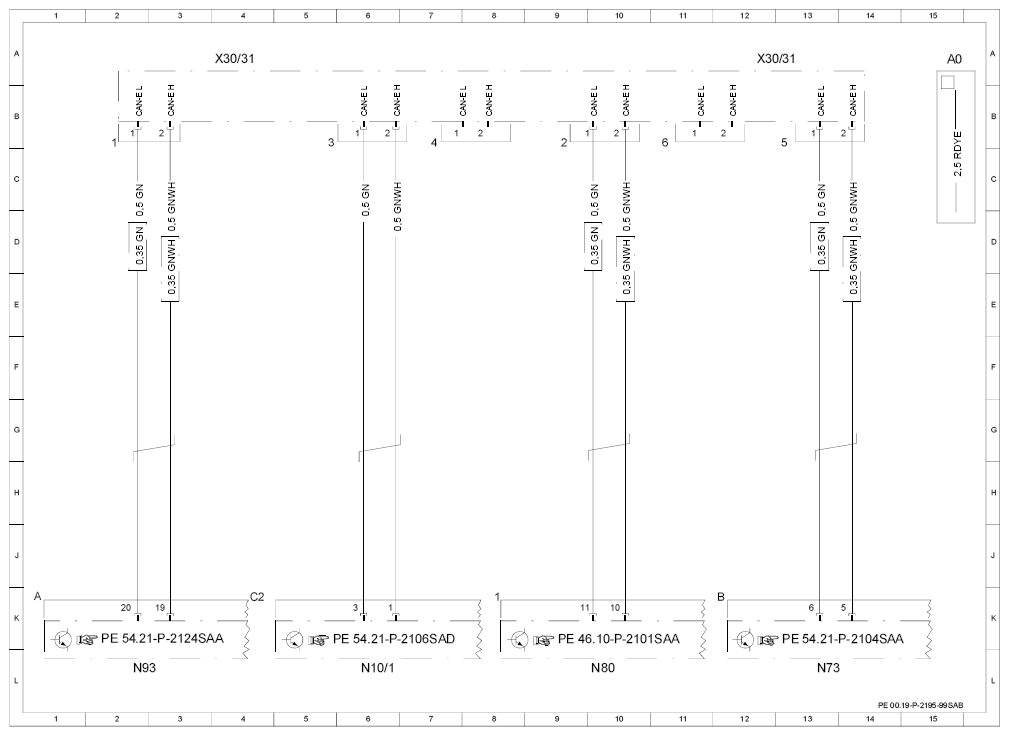

Wiring diagram of chassis CAN - PE00.19-P-2195-99SAB
| Code: | Designation: | Position: |
|---|---|---|
| N10/1 | Front SAM control module with fuse and relay module | 6 L |
| N73 | DI control module | 13 L |
| N80 | Steering column module | 10 L |
| N93 | Central gateway control module | 2 L |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | 4 A |
| X30/31 | Chassis CAN/cockpit voltage distributor connector | 12 A |
