| A0 |
Color code key |
80L |
| A40/11 |
Multifunction camera |
67L |
| A76 |
Left front reversible emergency tensioning retractor |
11L |
| A76/1 |
Right front reversible emergency tensioning retractor |
14L |
| A91/1 |
Electrohydraulic power steering |
60L |
| Code 237 |
Active Blind Spot Assist |
5G |
| Code 238 |
Active Lane Keeping Assist |
5G |
| Code 238 |
Active Lane Keeping Assist |
66G |
| Code 476 |
Automatic lane detection |
66G |
| Code 513 |
Speed Limit Assist |
66H |
| Code 608 |
Adaptive Highbeam Assist |
66H |
| N10/1 |
Front SAM control unit with fuse and relay module |
48L |
| N101 |
Night vision assist control unit |
64L |

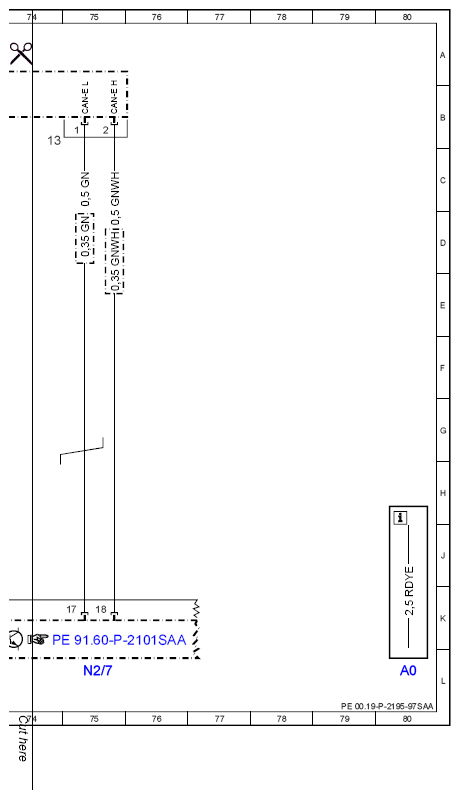

| N2/7 |
Restraint systems control unit |
75L |
| N3/10 |
ME-SFI [ME] control unit |
30L |
| N3/10 |
ME-SFI [ME] control unit |
26L |
| N3/10 |
ME-SFI [ME] control unit |
34L |
| N3/9 |
CDI control unit |
39L |
| N3/9 |
CDI control unit |
43L |

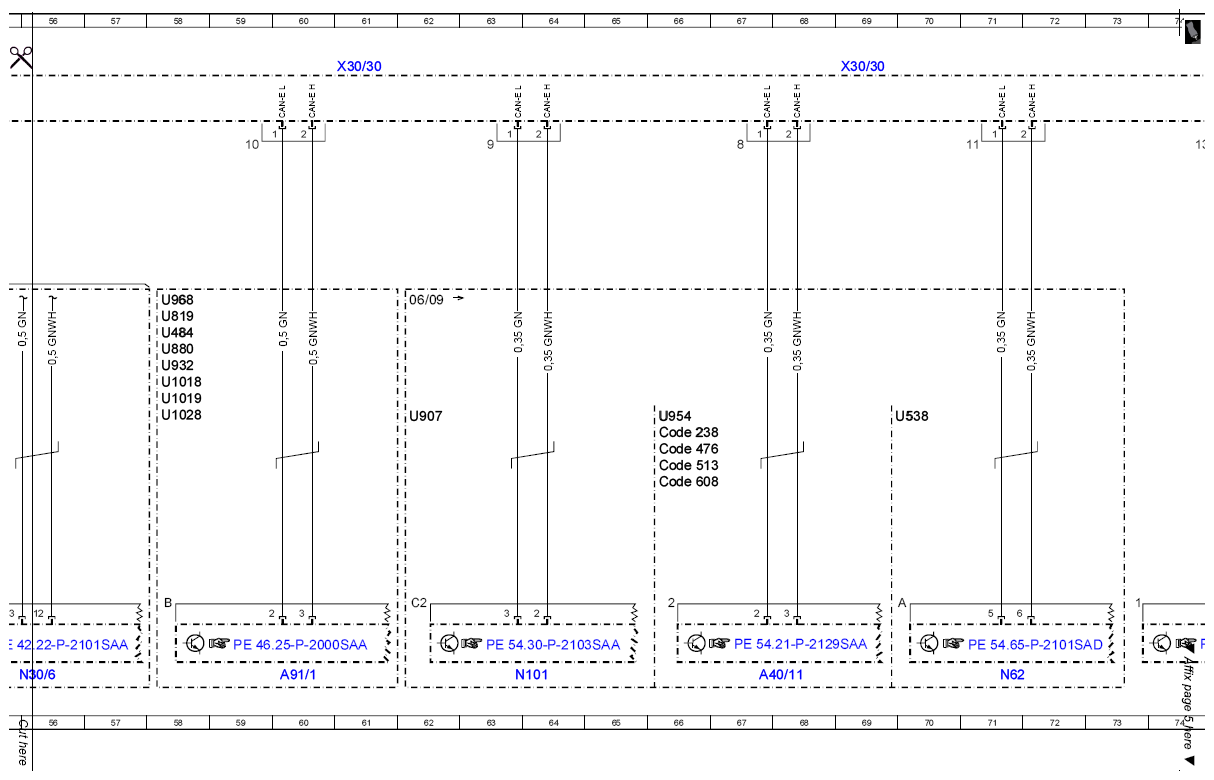

| N30/6 |
Regenerative braking system control unit |
56L |
| N47-5 |
ESP control unit |
52L |
| N51 |
AIRMATIC with ADS control unit |
18L |
| N51/2 |
ABC control unit |
22L |
| N62 |
PTS control unit |
71L |
| N62/1 |
Radar sensors control unit (SGR) |
7L |
| N62/1 |
Radar sensors control unit (SGR) |
6L |
| N62/2 |
Video and radar sensor system control unit |
7L |

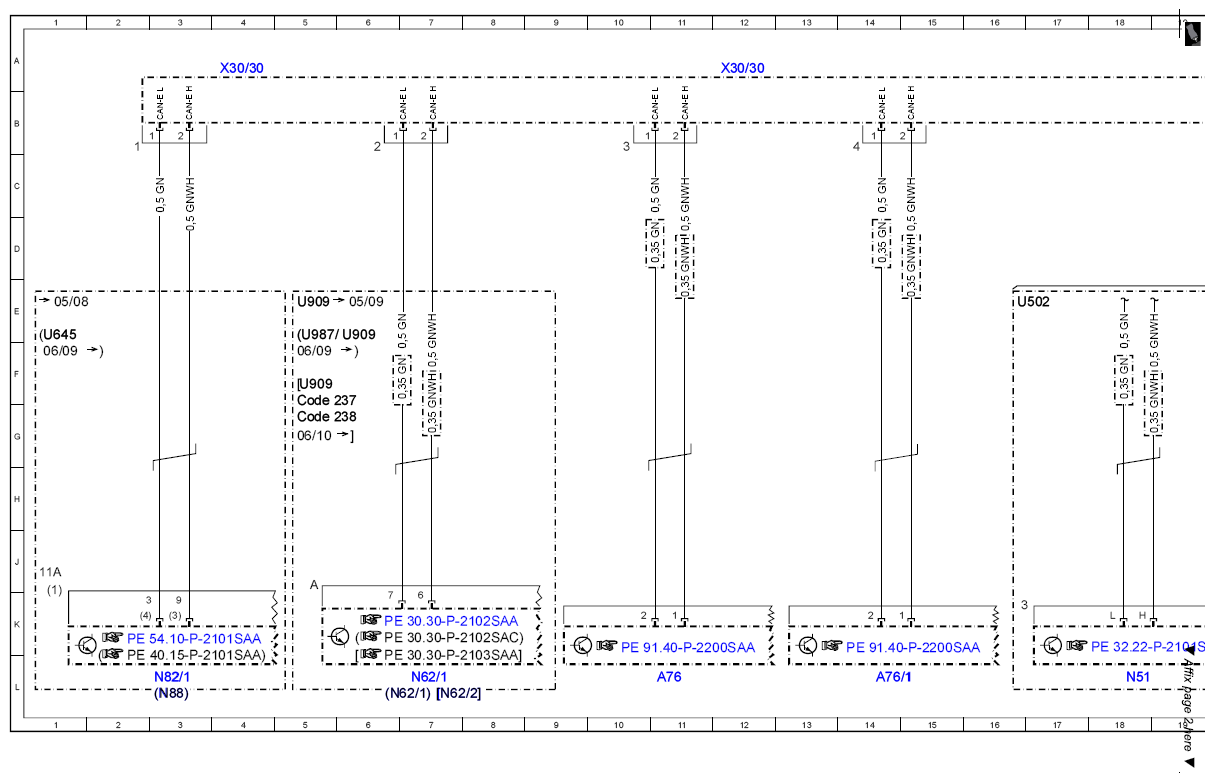

| N82/1 |
Vehicle power supply control unit |
3L |
| N88 |
TPM [RDK] control unit |
3L |
| U1018 |
Valid for gasoline engine 276 |
33E |
| U1018 |
Valid for gasoline engine 276 |
58F |
| U1019 |
Valid for engine 278 |
33E |
| U1019 |
Valid for engine 278 |
58G |
| U1028 |
Valid for engine 157 |
33E |
| U1028 |
Valid for engine 157 |
58G |
| U12 |
Valid for left-hand drive vehicles |
45E |
| U13 |
Valid for right-hand drive vehicles |
45E |
| U152 |
Valid for engine 156 |
29E |
| U484 |
Valid for M273 ME |
29E |
| U484 |
Valid for M273 ME |
58E |
| U502 |
Valid for AIRMATIC |
16E |

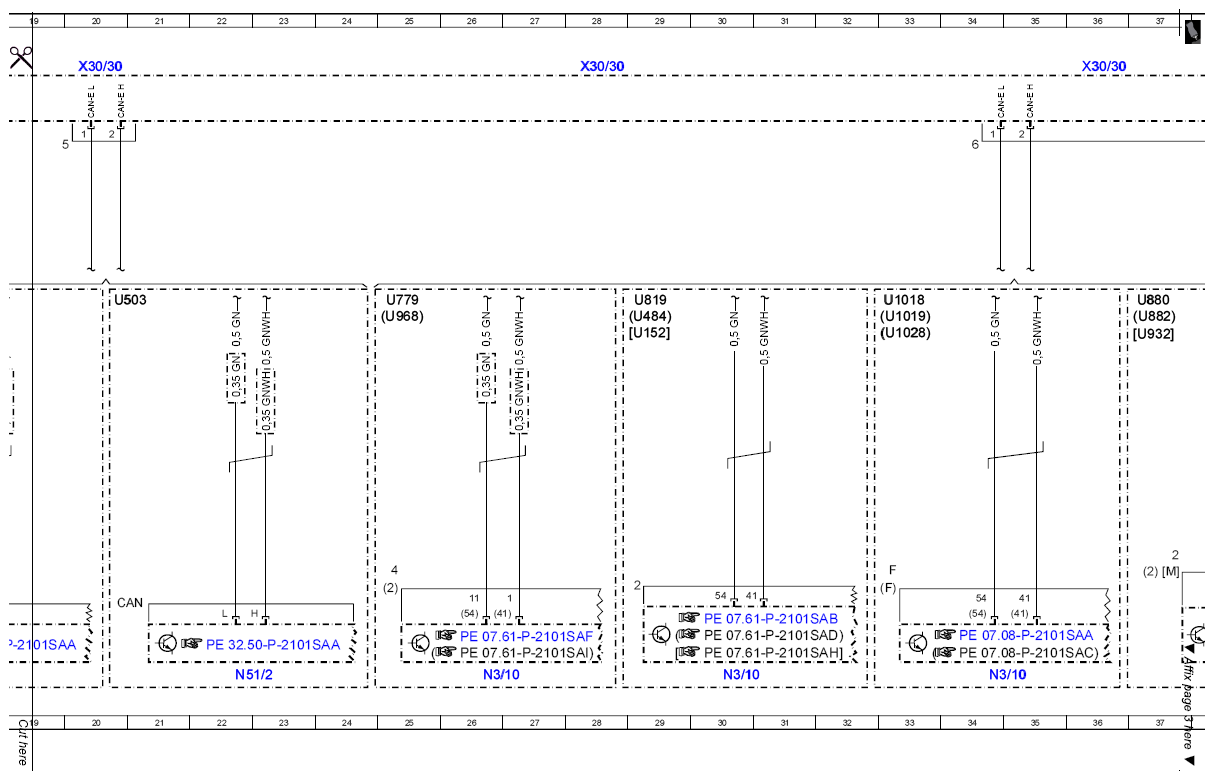

| U503 |
Valid for ABC |
20E |
| U538 |
Valid for Parktronic System |
69G |
| U645 |
Valid for tire pressure monitor system |
1E |
| U779 |
Valid for engine 275 |
25E |
| U819 |
Valid for engine 272 |
29E |
| U819 |
Valid for engine 272 |
58E |
| U880 |
Valid for engine 642 |
58F |
| U880 |
Valid for engine 642 |
37E |
| U882 |
Valid for engine 629 |
37E |
| U907 |
Valid for night view assist |
62G |
| U909 |
Valid for DISTRONIC PLUS |
5F |
| U909 |
Valid for DISTRONIC PLUS |
6E |
| U909 |
Valid for DISTRONIC PLUS |
5E |
| U932 |
Valid for engine 642 BLUETEC |
37E |
| U932 |
Valid for engine 642 BLUETEC |
58F |

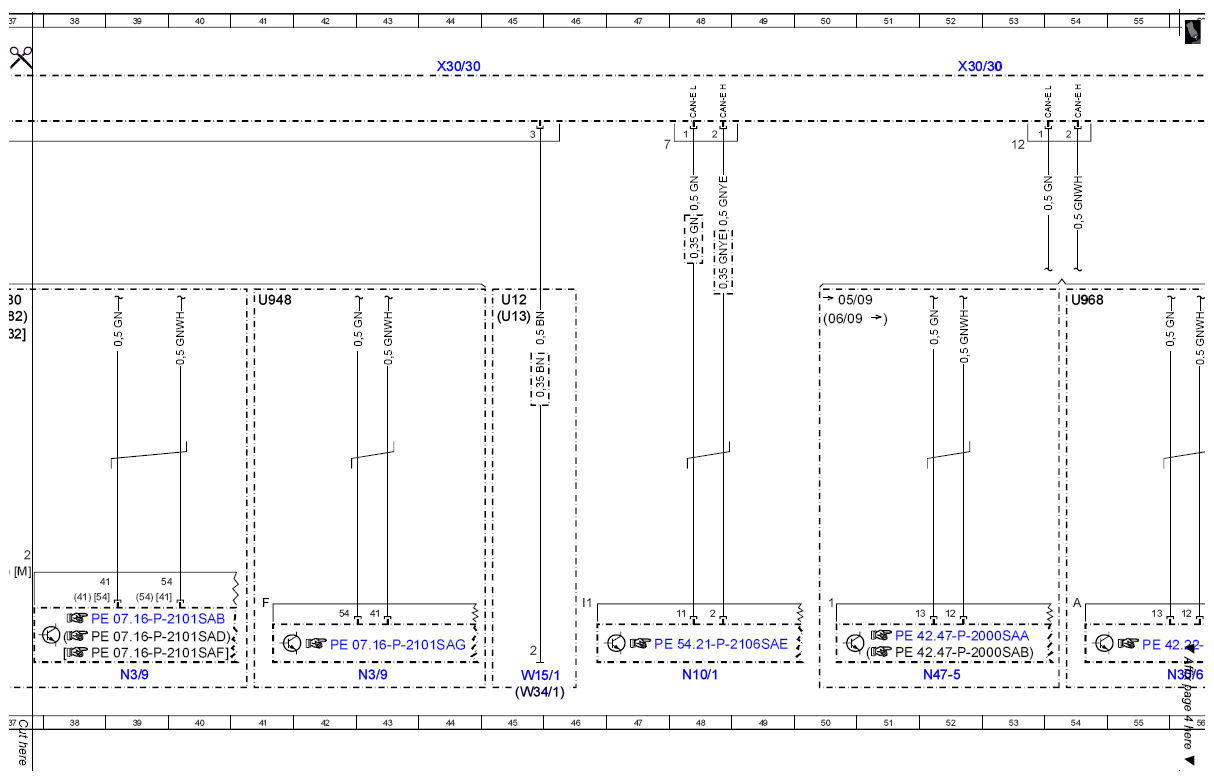

| U948 |
Valid for diesel engine 651 |
41E |
| U954 |
Valid for multifunction camera for Speed Limit Assist |
66G |
| U968 |
Valid for mild hybrid drive |
25E |
| U968 |
Valid for mild hybrid drive |
54E |
| U968 |
Valid for mild hybrid drive |
58E |
| U987 |
Valid for Distronic Plus (light) |
5E |
| W15/1 |
Ground (right footwell) |
45L |
| W34/1 |
Ground (electronics - left footwell) |
45L |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
4A |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
12A |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
20A |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
28A |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
36A |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
44A |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
52A |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
61A |
| X30/30 |
Chassis CAN/FFS [RBA] voltage distributor connector |
69A |
