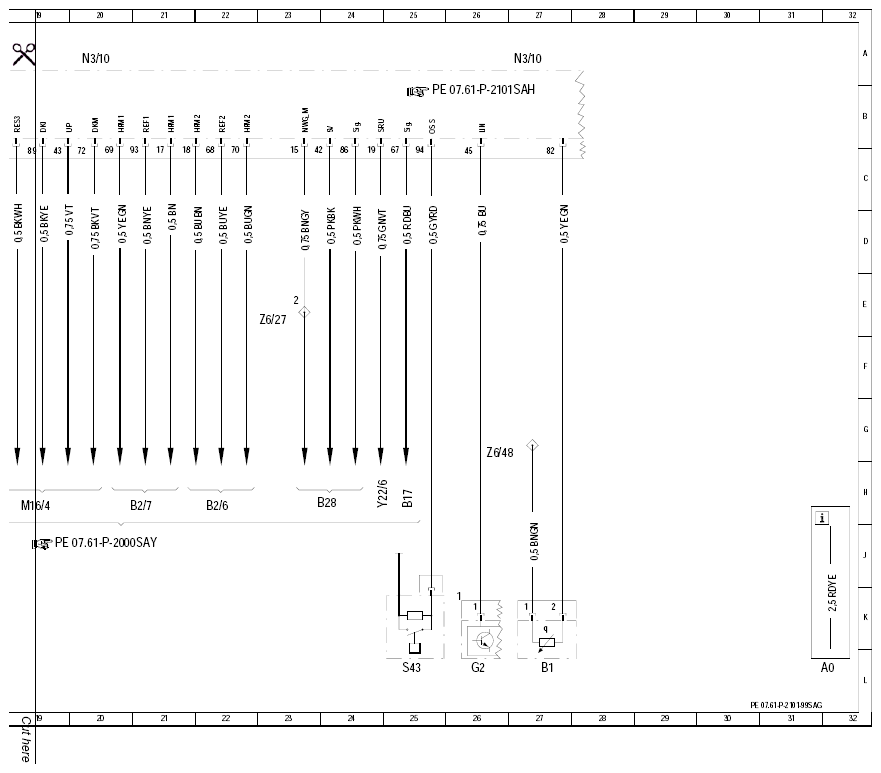

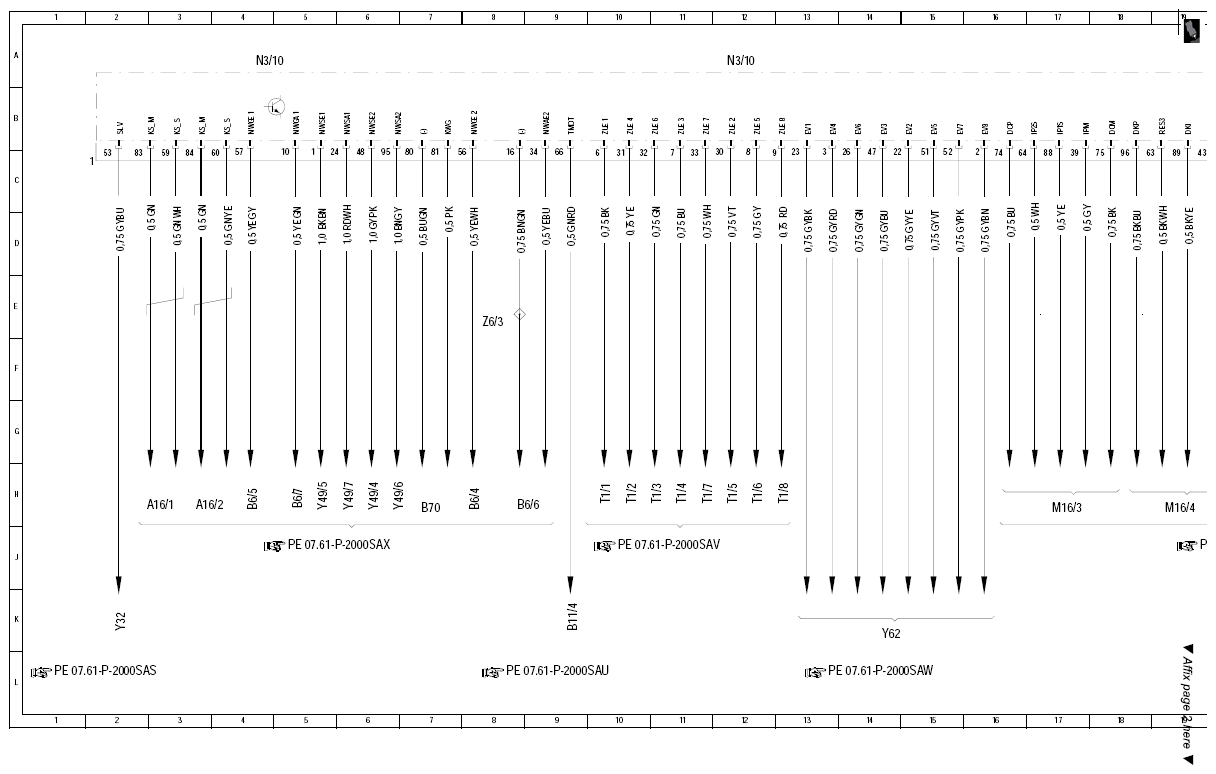

Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-99SAG
ENGINE 156 in MODEL 221.0 /1 control unit N3/10, engine end
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 31 L |
| A16/1 | Right knock sensor 1 | 2 H |
| A16/2 | Left knock sensor 2 | 3 H |
| B1 | Oil temperature sensor | 27 L |
| B11/4 | Coolant temperature sensor | 9 K |
| B17 | Intake air temperature sensor | 25 H |
| B2/6 | Left hot film MAF sensor | 22 H |
| B2/7 | Right hot film MAF sensor | 20 H |
| B28 | Pressure sensor | 23 H |
| B6/4 | Left intake camshaft Hall sensor | 8 H |
| B6/5 | Right intake camshaft Hall sensor | 4 H |
| B6/6 | Left exhaust camshaft Hall sensor | 8 H |
| B6/7 | Right exhaust camshaft Hall sensor | 5 H |
| B70 | Crankshaft Hall sensor | 7 H |
| G2 | Generator | 26 L |
| M16/3 | Front throttle valve actuator | 17 H |
| M16/4 | Rear throttle valve actuator | 19 H |
| N3/10 | ME-SFI [ME] control module | 4 A |
| N3/10 | ME-SFI [ME] control module | 12 A |
| N3/10 | ME-SFI [ME] control module | 20 A |
| N3/10 | ME-SFI [ME] control module | 27 A |
| S43 | Oil level switch | 25 L |
| T1/1 | Cylinder 1 ignition coil | 10 H |
| T1/2 | Cylinder 2 ignition coil | 10 H |
| T1/3 | Cylinder 3 ignition coil | 11 H |
| T1/4 | Cylinder 4 ignition coil | 11 H |
| T1/5 | Cylinder 5 ignition coil | 12 H |
| T1/6 | Cylinder 6 ignition coil | 12 H |
| T1/7 | Cylinder 7 ignition coil | 11 H |
| T1/8 | Cylinder 8 ignition coil | 13 H |
| Y22/6 | Variable intake manifold switchover valve | 25 H |
| Y32 | Air pump switchover valve | 2 K |
| Y49/4 | Left camshaft intake solenoid | 6 H |
| Y49/5 | Right camshaft intake solenoid | 5 H |
| Y49/6 | Left camshaft exhaust solenoid | 7 H |
| Y49/7 | Right camshaft exhaust solenoid | 6 H |
| Y62 | Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS]) | 14 K |
| Z6/27 | Sensor ground connector sleeve | 22 E |
| Z6/3 | Sensor 2 ground connector sleeve | 8 E |
| Z6/3 | Sensor 2 ground connector sleeve | 26 H |
