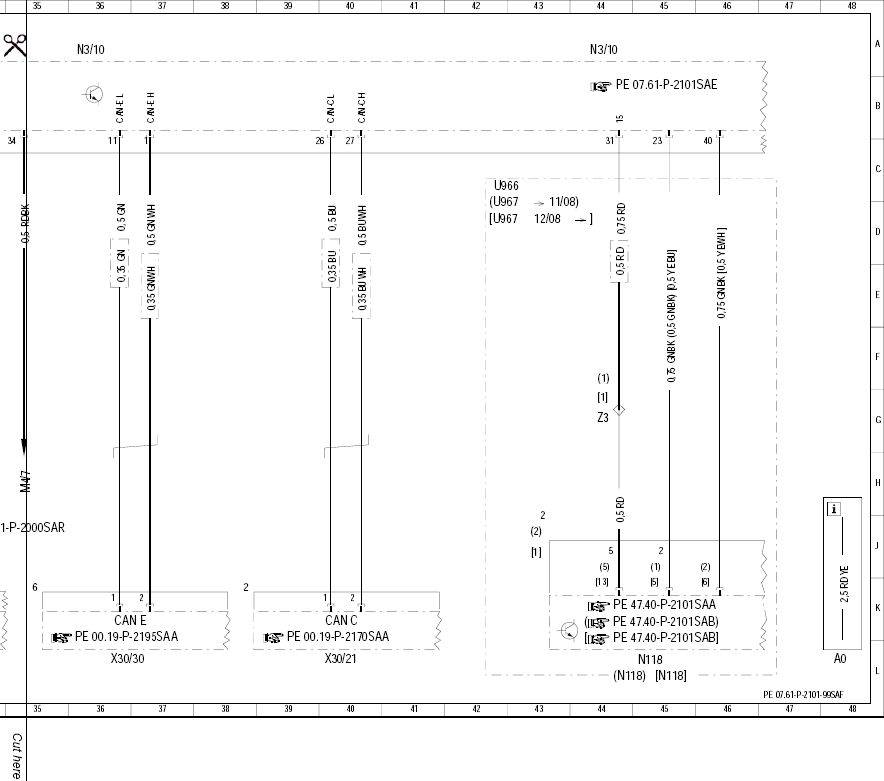

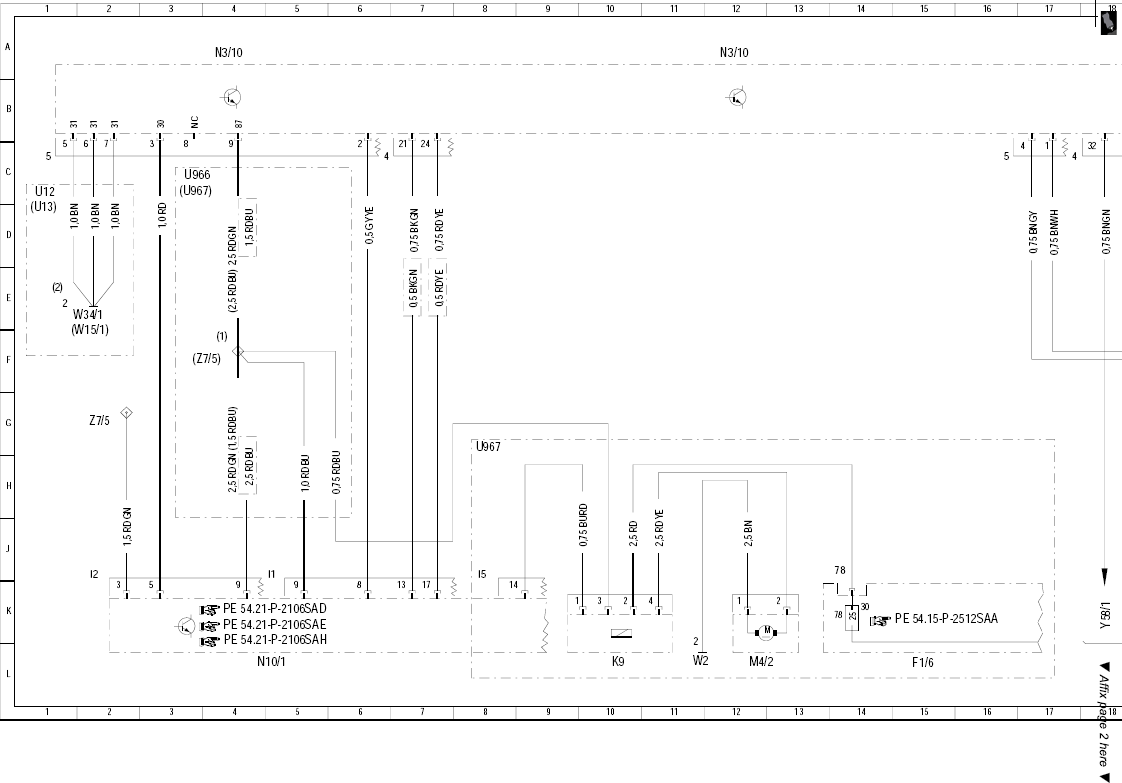

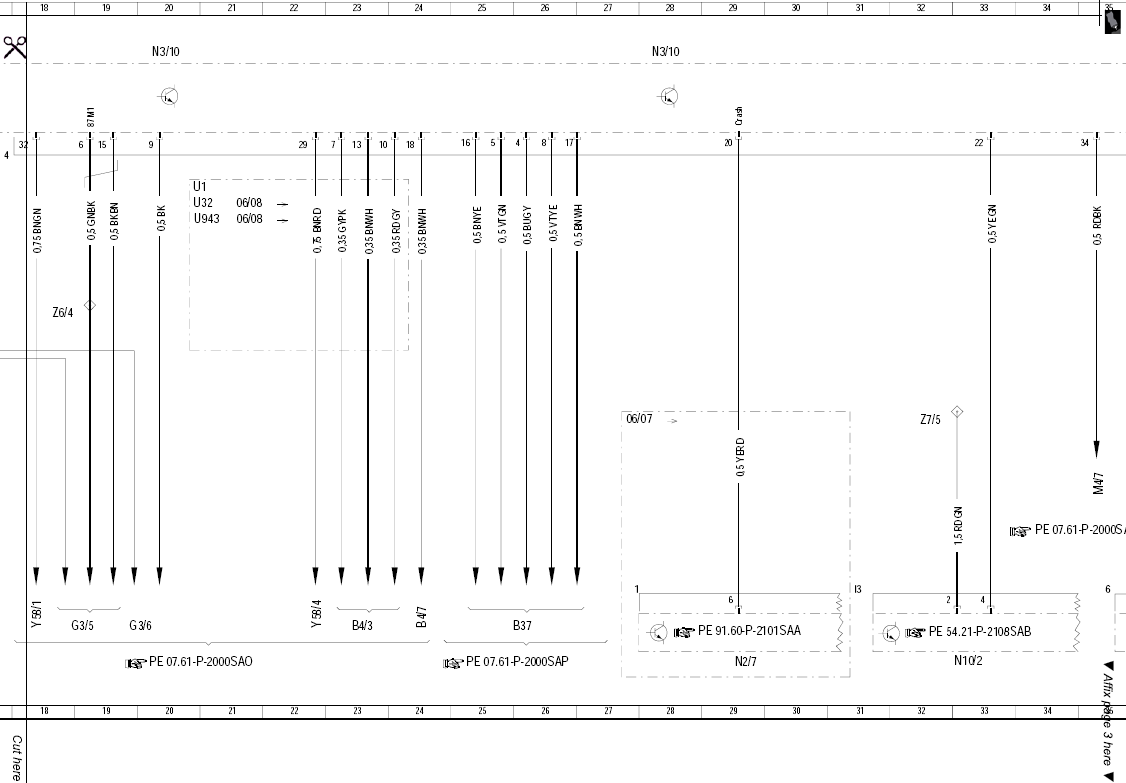

Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-99SAF
ENGINE 275 in MODEL 221.1 Control unit N3/10, vehicle side
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 40 L |
| N10/1 | Front SAM control module with fuse and relay module | 4 L |
| N10/2 | Rear SAM control module with fuse and relay module | 20 L |
| N2/7 | Restraint systems control module | 17 L |
| N3/10 | ME-SFI [ME] control module | 4 A |
| N3/10 | ME-SFI [ME] control module | 12 A |
| N3/10 | ME-SFI [ME] control module | 20 A |
| N3/10 | ME-SFI [ME] control module | 29 A |
| U12 | Valid for left-hand steering | 1 C |
| U13 | Valid for right-hand steering | 1 D |
| W15/1 | Ground (right footwell) | 1 F |
| W34/1 | Ground (electronics - left footwell) | 1 E |
| X30/30 | Chassis CAN/FFS [RBA] voltage distributor connector | 24 L |
