Wiring diagram for ME-SFI [ME] gasoline injection and ignition system control unit - PE07.61-P-2101-99SAC

ENGINE 273 in MODEL 221.0 /1 control unit N3/10, engine side

Code: Designation: Position:
A0 Explanation of color codes 31 L
A16/1 Right knock sensor 1 2 H
A16/2 Left knock sensor 2 3 H
B11/4 Coolant temperature sensor 11 K
B2/2 Hot wire MAF sensor 22 H
B2/5 Hot film MAF sensor 26 H
B28 Pressure sensor 27 H
B28/10 Right intake manifold tumble flap position sensor 28 H
B28/9 Left intake manifold tumble flap position sensor 28 H
B6/4 Left intake camshaft Hall sensor 9 H
B6/5 Right intake camshaft Hall sensor 4 H
B6/6 Left exhaust camshaft Hall sensor 9 H
B6/7 Right exhaust camshaft Hall sensor 5 H
B70 Crankshaft Hall sensor 8 H
G2 Generator 31 L
M16/6 Throttle valve actuator 24 H
N10/1 Front SAM control module with fuse and relay module 21 L
N3/10 ME-SFI [ME] control module 4 A
N3/10 ME-SFI [ME] control module 12 A
N3/10 ME-SFI [ME] control module 20 A
N3/10 ME-SFI [ME] control module 28 A
S43 Oil level switch 28 L
S43/1 Engine oil pressure switch 29 L
T1/1 Cylinder 1 ignition coil 11 H
T1/2 Cylinder 2 ignition coil 12 H
T1/3 Cylinder 3 ignition coil 12 H
T1/4 Cylinder 4 ignition coil 12 H
T1/5 Cylinder 5 ignition coil 13 H
T1/6 Cylinder 6 ignition coil 13 H
T1/7 Cylinder 7 ignition coil 14 H
T1/8 Cylinder 8 ignition coil 14 H
U12 Valid for left-hand steering 18 E
U13 Valid for right-hand steering 18 E
U828 Valid for super low emission 22 C
W15/1 Ground (right footwell) 18 L
W34/1 Ground (electronics - left footwell) 18 L
X26 Interior and engine wiring harness connector 18 H
Y32 Air pump switchover valve 2 K
Y49/4 Left camshaft intake solenoid 7 H
Y49/5 Right camshaft intake solenoid 6 H
Y49/6 Left camshaft exhaust solenoid 7 H
Y49/7 Right camshaft exhaust solenoid 6 H
Y62 Injectors (LH-SFI, HFM-SFI, PEC [LH, HFM, PMS]) 15 H
Z5 Connector sleeve (solder joint in harness) 27 E
Z6 Ground connector sleeve 18 E
Z7/36 Circuit 87M2e connector sleeve 21 E
Z7/38 Circuit 87 M1i connector sleeve 20 E
Z7/43 Sensor ground connector sleeve 4 E
Z7/44 Sensor ground connector sleeve 9 E

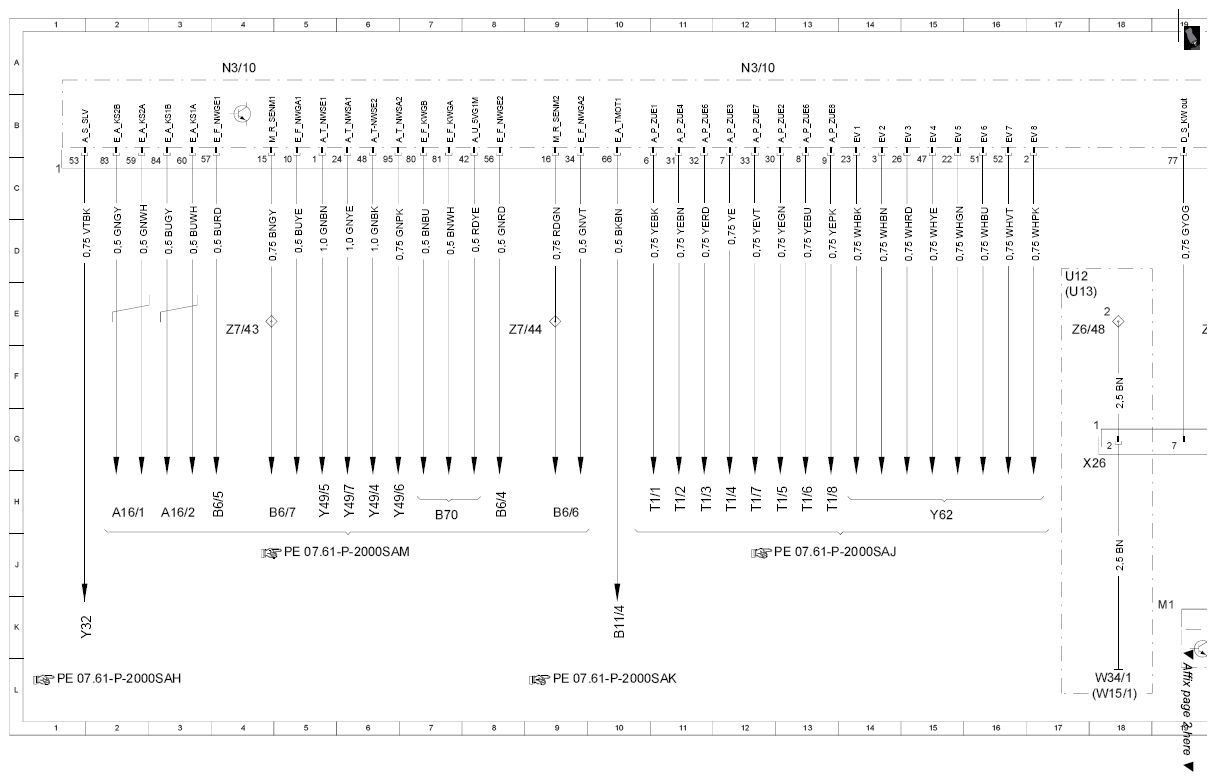

Fig 1: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (1 Of 2)
G07587259Courtesy of MERCEDES-BENZ USA

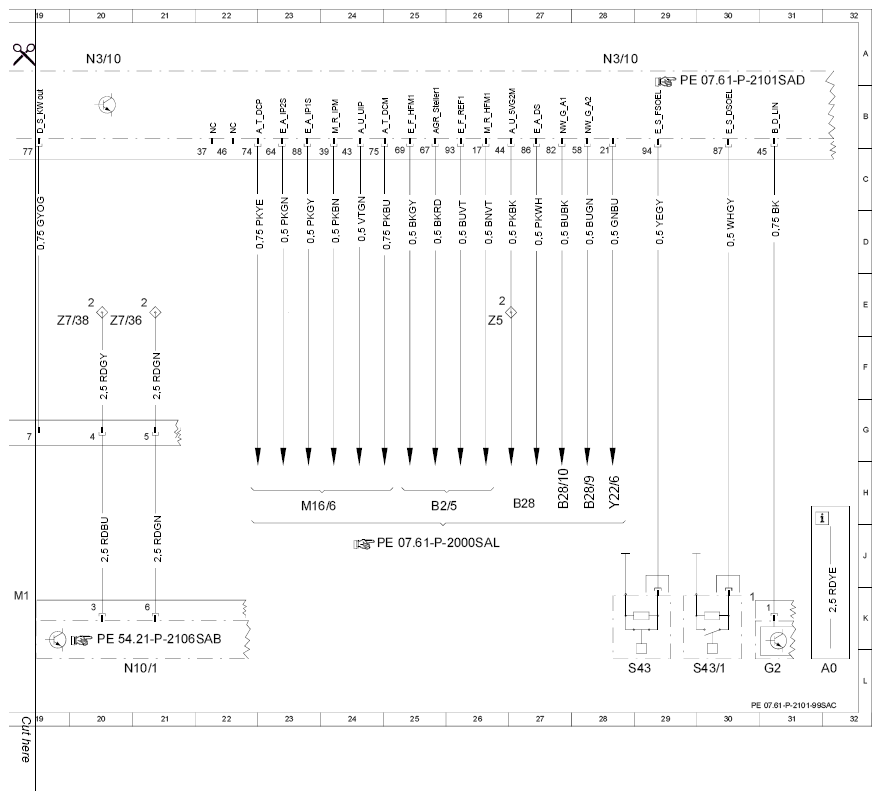

Fig 2: ME-SFI [ME] Gasoline Injection And Ignition System Control Unit - Wiring Diagram (2 Of 2)
G07587260Courtesy of MERCEDES-BENZ USA
