Pressure sensor upstream of throttle valve actuator, function - GF07.04-P-5048-01M

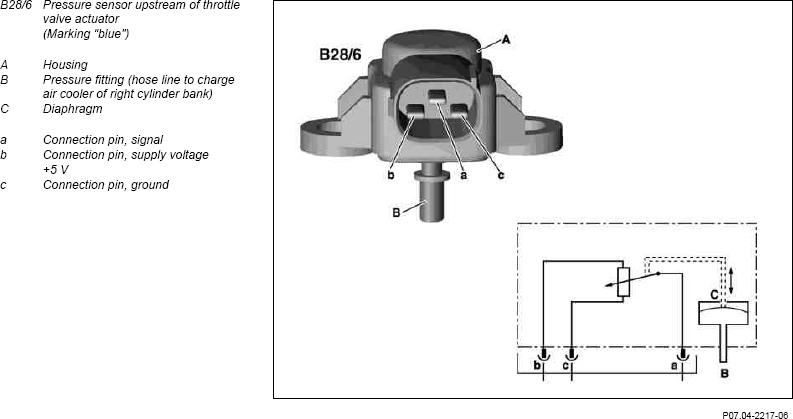

Fig 1: Pressure Sensor Upstream Of Throttle Valve Actuator Circuit Diagram
G07618534Courtesy of MERCEDES-BENZ USA

The pressure distorts the diaphragm and through this the value of the Piezo resistor. The output voltage serves as pressure information for the engine control unit.

IMPORTANT Observe risk of mixing up pressure sensors of similar construction.
