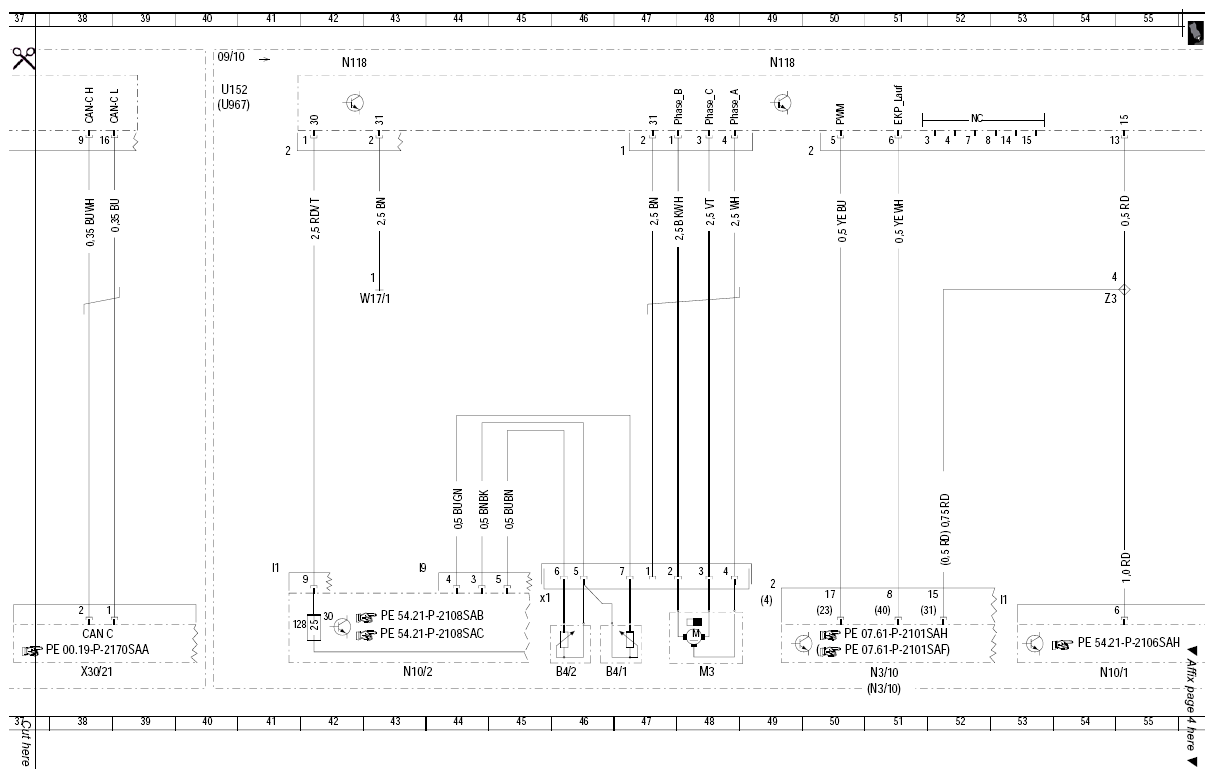

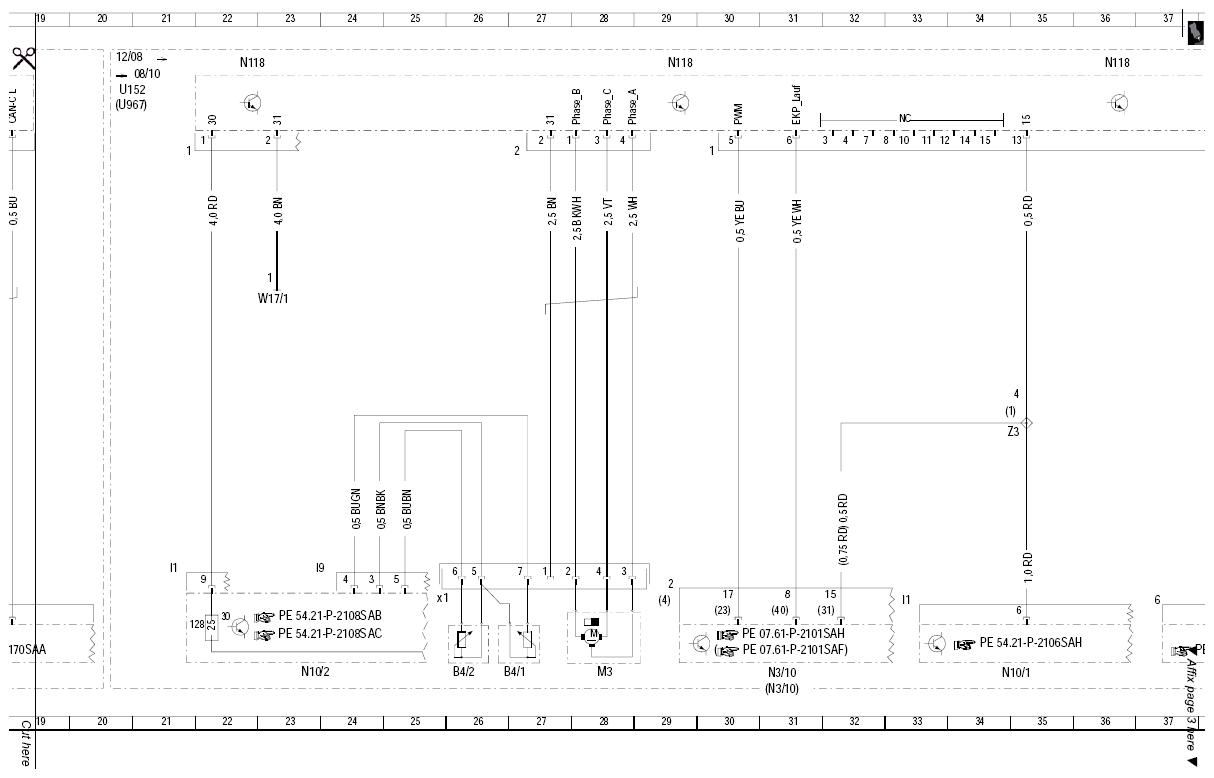

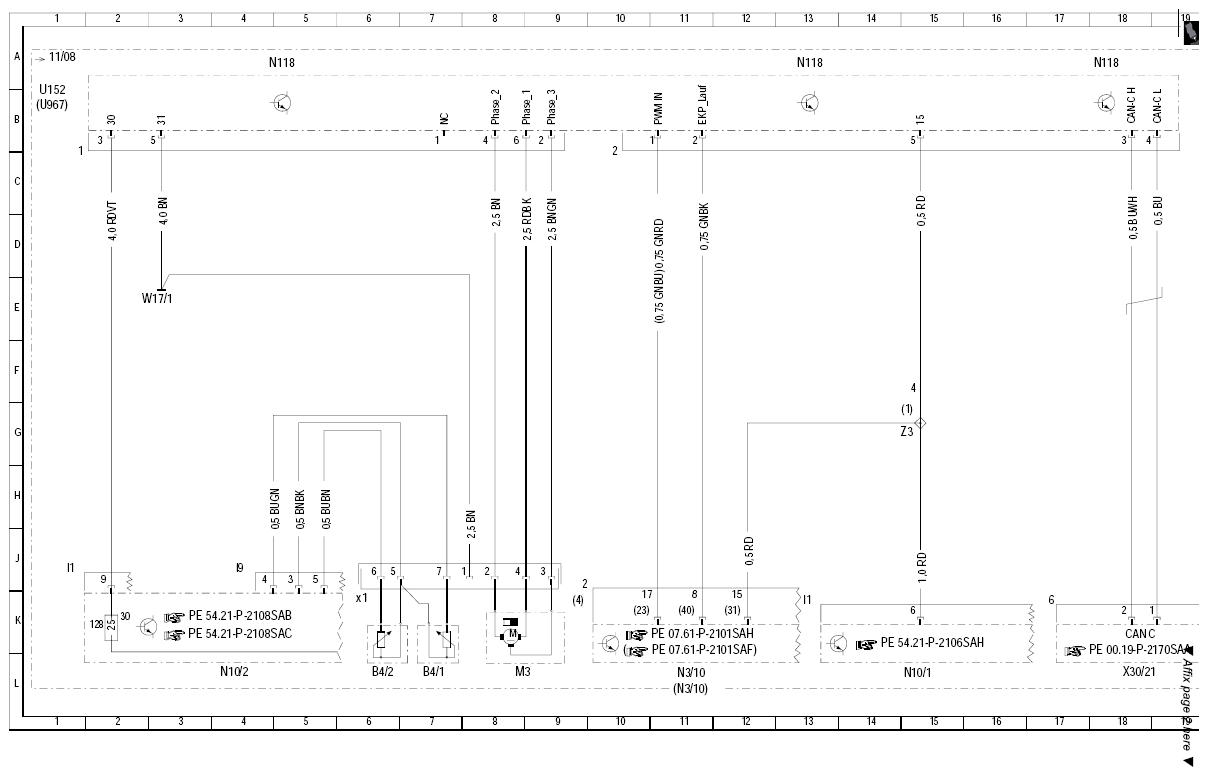

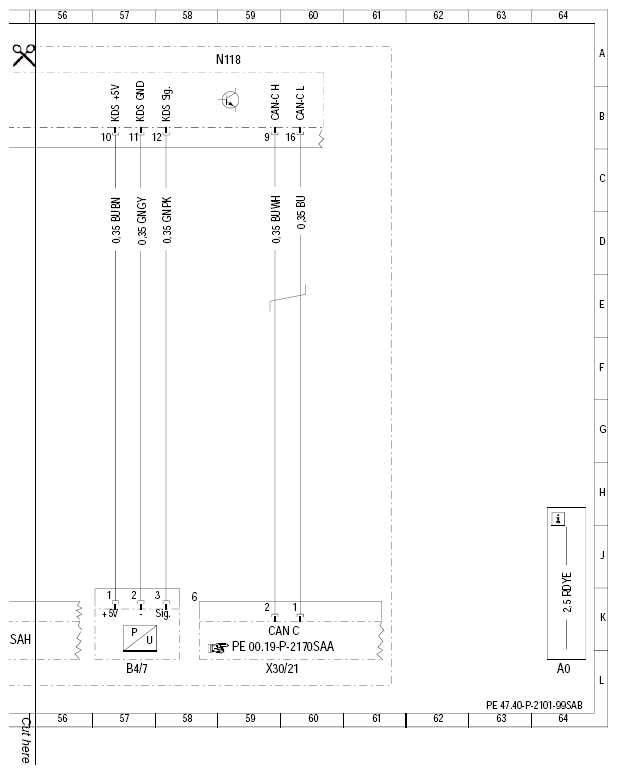

Wiring diagram for fuel pump control unit - PE47.40-P-2101-99SAB
ENGINE 156.984 in MODEL 221.0 /1 Control unit N118 ENGINE 275.982 in MODEL 221.1 Control unit N118
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Explanation of color codes | 23 L |
| B4/1 | Left fuel level sensor | 6 L |
| B4/1x1 | Left tank half fuel level sensor connector | 4 K |
| B4/2 | Right fuel level sensor | 5 L |
| B4/7 | Fuel pressure sensor | 19 L |
| M3 | Fuel pump (FP) | 7 L |
| N10/1 | Front SAM control module with fuse and relay module | 14 L |
| N10/2 | Rear SAM control module with fuse and relay module | 2 L |
| N118 | Fuel pump control module | 4 A |
| N118 | Fuel pump control module | 12 A |
| N118 | Fuel pump control module | 19 A |
| N3/10 | ME-SFI [ME] control module | 10 L |
| W17/1 | Ground (left rear seat) | 2 E |
| X30/21 | Drive train CAN voltage distributor connector | 17 L |
| Z3 | Circuit 15 connector sleeve | 13 G |
