Remove/install engine from/onto front axle carrier - AR01.10-P-2510SX

ENGINES 272, 273 in MODEL 221 (except 221.08 /18)

ENGINES 275 in MODEL 221

ENGINES 273, 275 in MODEL 216 (except 216.386)

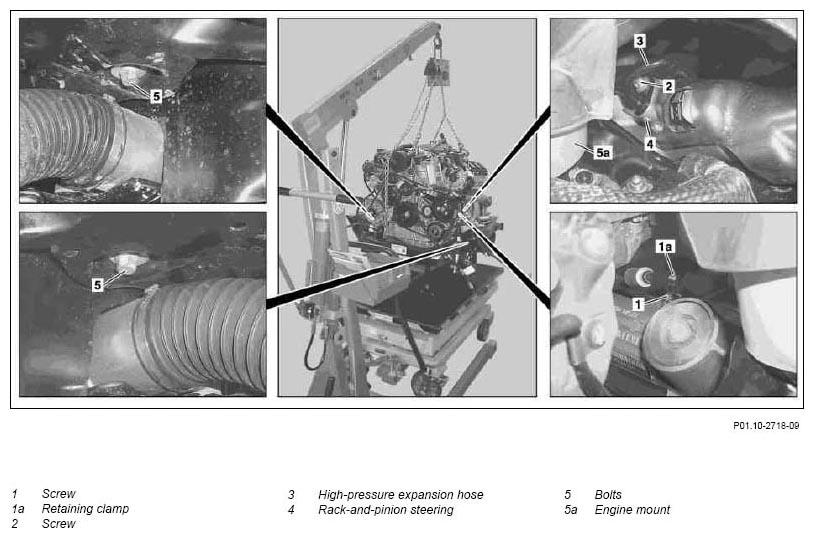

Fig 1: Removing/Installing Engine From/Onto Front Axle Carrier

Courtesy of MERCEDES-BENZ USA

Shown on engine 273.961 with code (487) Active Body Control (ABC)

	Remove/install
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Attach engine hoist to engine lifting eyes
2	Remove tensioning strap for engine-transmission unit
3	Secure front axle carrier on portable lifting platform with tensioning strap against slipping and falling down
4	Lift engine with a suitable lifting device and engine hoist	Only raise far enough for chain on engine hoist to be lightly tensioned.
5	Remove bolt (1) of the retaining clamp (1a) from rack-and-pinion steering (4)	Model 216	*BA46.30-P-1012-01Q
		Model 221 with AIRmatic	*BA46.30-P-1010-01F
		Model 221 with code (487) Active Body Control (ABC)	*BA46.30-P-1013-01N
6	Remove bolt (2) and remove high pressure expansion hose (3)	Installation: Replace seals.
		Model 221 with AIRmatic	*BA46.30-P-1012-01F
		Model 221 with code (487) Active Body Control (ABC)	*BA46.30-P-1012-01N
		Model 216	*BA46.30-P-1011-01Q
7	Remove bolts (5) from engine mounts (5a)	Model 216	*BA22.10-P-1001-03C
7	Remove bolts (5) from engine mounts (5a)	Model 221	*BA22.10-P-1001-03D
8	Lift off engine / transmission unit from front axle carrier	Ensure when lifting that engine oil pan is not damaged. Installation: Ensure that engine mount (5a) is seated correctly in catches on the front axle carrier.
9	Install in the reverse order

POWER STEERING PUMP

Number	Designation		Model 216 with engine 273 with code 487	Model 216 with engine 275
BA46.30-P-1011-01Q	Bolt, high pressure line to rack-and-pinion steering	Nm	18	18
BA46.30-P-1012-01Q	Clamp/bracket of high-pressure expansion hose to rack-and-pinion steering	Nm	10	10

POWER STEERING PUMP

Number	Designation		Model 221 with code 487
BA46.30-P-1012-01N	Bolt, high pressure line to power steering	Nm	20
BA46.30-P-1013-01N	Bolt, high-pressure expansion hose bracket to rack-and-pinion steering	Nm	10

POWER STEERING PUMP

Number	Designation		Model 221 without code 487
BA46.30-P-1010-01F	Bolt, high-pressure expansion hose bracket to rack-and-pinion steering	Nm	10
BA46.30-P-1012-01F	Bolt, high pressure line to power steering	Nm	20

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 221.02/05/07/095/12/15/17/195
BA22.10-P-1001-03D	Bolt, front engine mount to front axle carrier	Nm	35

ENGINE SUSPENSION, ENGINE MOUNTS, ENGINE SUPPORTS

Number	Designation		Model 216.371/373/374/376/377/379
BA22.10-P-1001-03C	Bolt, front engine mount to front axle carrier	Nm	35
