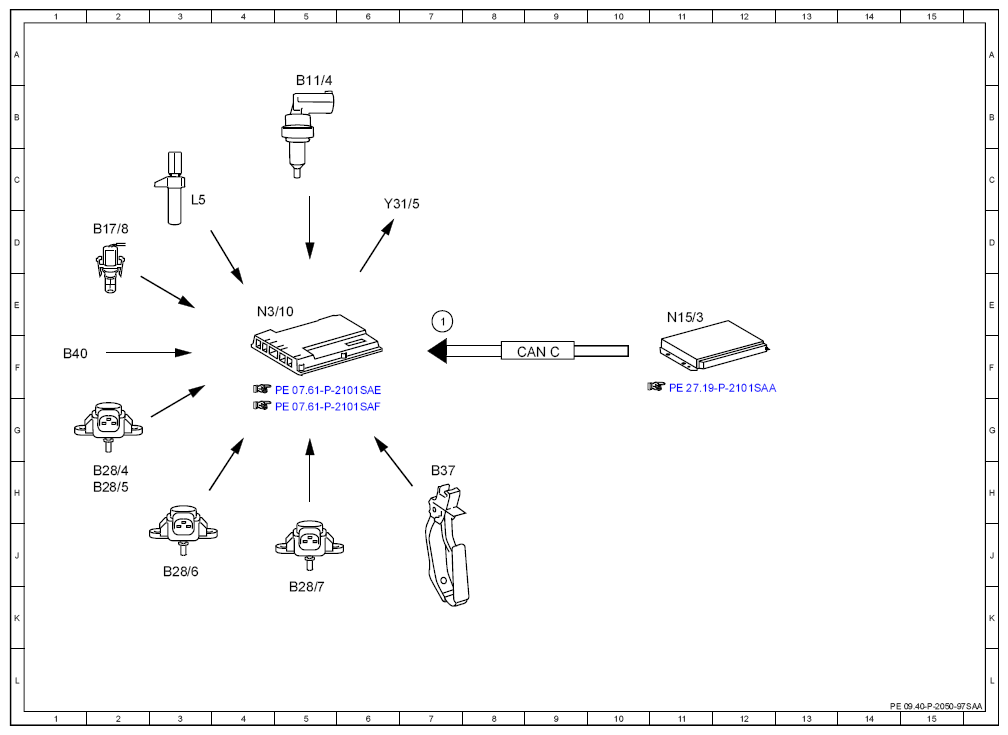

Electrical function schematic for boost pressure control - PE09.40-P-2050-97SAA
MODEL 221 with ENGINE 275 as of model year 09/ YoM 08
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Gear range, status | 7E |
| B11/4 | Coolant temperature sensor | 5A |
| B17/8 | Charge air temperature sensor | 1D |
| B28/4 | Pressure sensor downstream of air filter, left cylinder bank | 2H |
| B28/5 | Pressure sensor downstream of air filter | 2H |
| B28/6 | Pressure sensor upstream of throttle valve actuator | 3J |
| B28/7 | Pressure sensor downstream of throttle valve actuator | 5J |
| B37 | Accelerator pedal sensor | 7H |
| B40 | Oil sensor (oil level, temperature and quality) | 1F |
| CAN C | Drive train CAN | 8F |
| L5 | Crankshaft position sensor | 3C |
| N15/3 | ETC [EGS] control unit | 11E |
| N3/10 | ME-SFI [ME] control unit | 4E |
| Y31/5 | Boost pressure control pressure transducer | 6C |
