Torque diagram for exhaust manifold - AR09.40-P-6020-11MC

TURBOCHARGER

Number Designation Engine 275
BA09.40-P-1011-01H Exhaust manifold on cylinder head Nm 15
Fig 1: Identifying Assembly Arm (285 589 00 61 00)
G07630320Courtesy of MERCEDES-BENZ USA

IMPORTANT Do not use any assembly paste or similar product!

  1. Tighten all the nuts (1 to 12) to the specified tightening sequence with the specified torque.
  2. SPECIAL TOOL Dismount assembly tool (01, 02).
  3. Tighten all the nuts (1 to 12) once again to the specified tightening sequence with the specified torque.

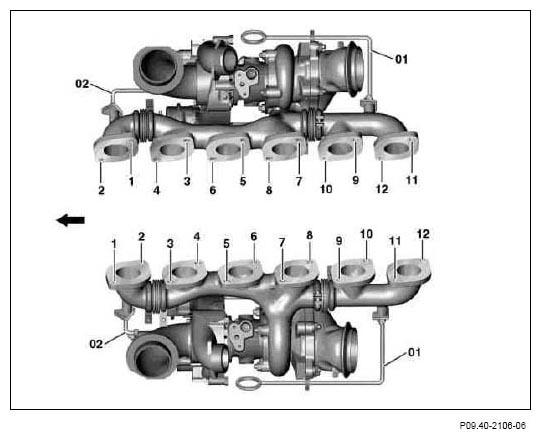

    Fig 2: Torque Diagram For Exhaust Manifold
    G07630321Courtesy of MERCEDES-BENZ USA
