Charge air cooler circulation pump relay, location/task/design/function - GF09.41-P-3106M
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230 up to Model Year 08 /AEJ 07
ENGINE 275.953 in MODEL 216, 221 up to Model Year 08 /AEJ 07
ENGINE 275.954 in MODEL 230 up to Model Year 08 /AEJ 07
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230 up to Model Year 08 /AEJ 07
ENGINE 275.982 in MODEL 216, 221 up to Model Year 08 /AEJ 07
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240
Shown on engine 275.950/951/980, 285
| Relay for charge air cooler recirculation pump - location | Model 215, 220 | GF09.41-P-3106-01MA | |
| Model 216, 221 with engine 275.953/982 | GF09.41-P-3106-01MS | ||
| Model 230 with engine 275.951/954 | GF09.41-P-3106-01RA | ||
| Model 230 with engine 275.981 | GF09.41-P-3106-01RB | ||
| Model 240 | GF09.41-P-3106-01MM | ||
| Relay for charge air cooler recirculation pump - task | Actuates the charge air cooler recirculation pump. | ||

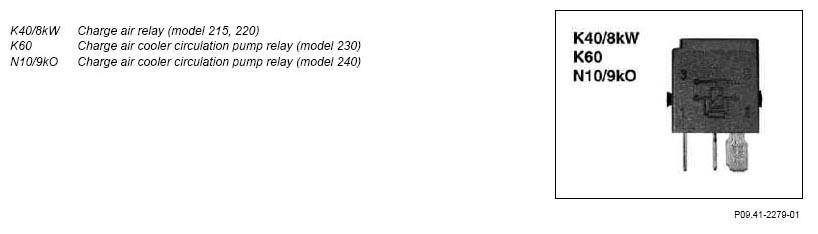

| Relay for charge air cooler recirculation pump - design | Relay for charge air cooler recirculation pump is a 4-pin plug-in relay. | ||
| Relay for charge air cooler recirculation pump, function | Upon actuation of the ME control unit by a ground signal, the power supply contact closes and thus supplies the charge air cooler recirculation pump (M44) fused with a voltage (circuit 87). |
