| A0 |
Color code key |
32L |

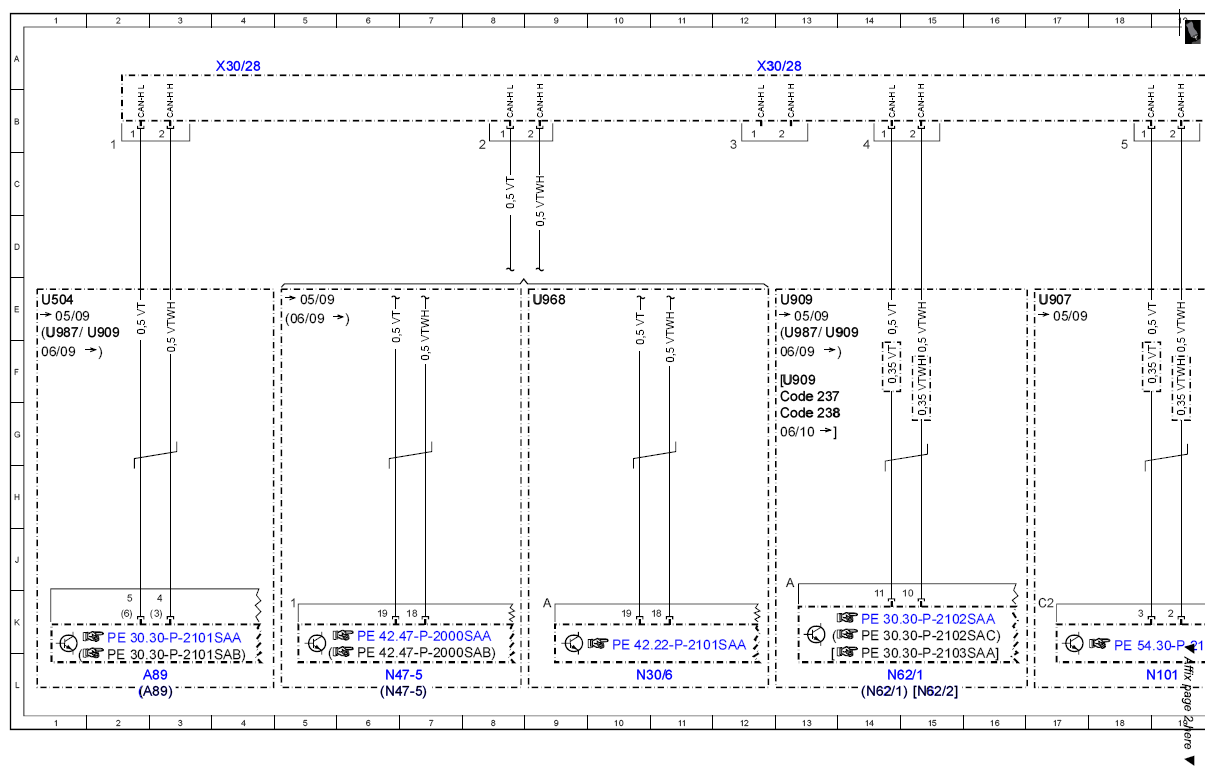

| A89 |
DTR control unit |
3L |
| A89 |
DTR control unit |
2L |

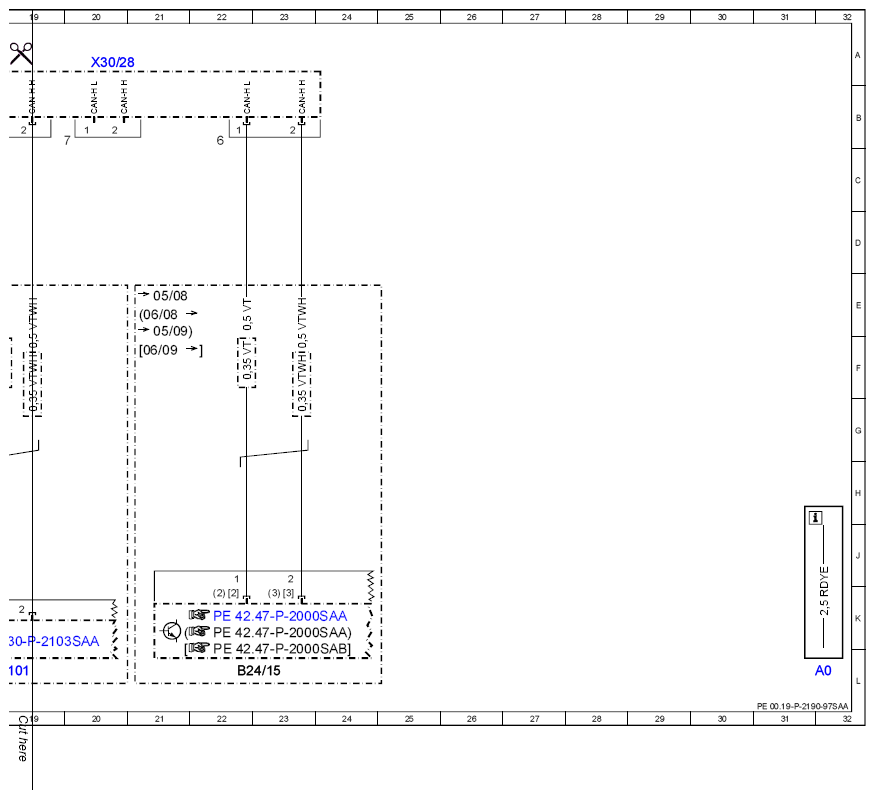

| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
22L |
| Code |
237 Active Blind Spot Assist |
13F |
| Code |
238 Active Lane Keeping Assist |
13G |
| N101 |
Night vision assist control unit |
19L |
| N30/6 |
Regenerative braking system control unit |
10L |
| N47-5 |
ESP control unit |
6L |
| N47-5 |
ESP control unit |
6L |
| N62/1 |
Radar sensors control unit (SGR) |
14L |
| N62/1 |
Radar sensors control unit (SGR) |
14L |
| N62/2 |
Video and radar sensor system control unit |
15L |
| U504 |
Valid for DTR |
1E |
| U907 |
Valid for night view assist |
17E |
| U909 |
Valid for DISTRONIC PLUS |
13E |
| U909 |
Valid for DISTRONIC PLUS |
13E |
| U909 |
Valid for DISTRONIC PLUS |
2E |
| U909 |
Valid for DISTRONIC PLUS |
13F |
| U968 |
Valid for mild hybrid drive |
9E |
| U987 |
Valid for Distronic Plus (light) |
13E |
| U987 |
Valid for Distronic Plus (light) |
1E |
| X30/28 |
Vehicle dynamics CAN voltage distributor connector |
4A |
| X30/28 |
Vehicle dynamics CAN voltage distributor connector |
12A |
| X30/28 |
Vehicle dynamics CAN voltage distributor connector |
20A |
