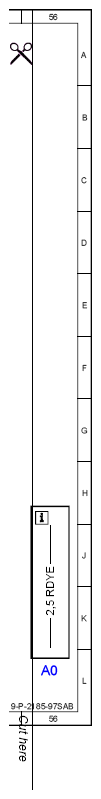

| A0 |
Color code key |
56L |
| A6 |
STH or HB heater unit |
20L |
| A98 |
Panoramic sliding roof control module |
40L |
| CAN |
B Interior CAN |
2K |
| N110 |
Weight Sensing System (WSS) control unit |
13L |
| N121 |
TLC [HDS] control unit |
32L |
| N2/13 |
WSS (Weight Sensing System) control unit |
13L |
| N25/6 |
Rear seats control unit |
36L |
| N26/9 |
Special vehicle multifunction control unit (SVMCU [MSS]) |
48L |
| N32/2 |
Right front seat control unit |
9L |
| N62 |
PTS control unit |
24L |
| N62 |
PTS control unit |
24L |
| N69/2 |
Right front door control unit |
17L |
| N69/4 |
Right rear door control unit |
6L |
| N70 |
Overhead control panel control unit |
28L |
| N88 |
TPM [RDK] control unit |
44L |
| U1 |
Valid for {{USA}} |
11F |
| U129 |
Valid for panoramic sliding roof |
38E |
| U520 |
Valid for taxi |
46E |
| U538 |
Valid for Parktronic System |
23F |
| U538 |
Valid for Parktronic System |
23F |
| U579 |
Valid for stationary heater (STH) |
19F |
| U645 |
Valid for tire pressure monitor system |
42E |
| U658 |
Valid for remote trunk closing |
30F |
| W19 |
Ground (right front seat crossmember) |
6E |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
28E |
| X25/8 |
Overhead control panel and FFS [RBA] connector |
39G |
| X28/30 |
Passenger-side FFS [RBA]/seat airbag separation point |
12E |
| X30/32 |
Left interior CAN/FFS [RBA] voltage distributor connector |
2L |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
28A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
4A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
20A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
12A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
46A |
| X30/33 |
Right interior CAN/FFS [RBA] voltage distributor connector |
36A |
| X35/2 |
Right front door and FFS [RBA] connector |
16E |
| X35/4 |
Right rear door separation point |
5G |
